COMMANDER
High speed, high performance, in rivers, lakes, bays & the open ocean. Own the boat that the other builders try to reproduce but never match. Structurally incomparable, with unparalleled fit and finish, the Commander is the toughest, safest, finest looking heavy gauge aluminum boat on the market.
Expecting the best?
Then accept no imitations and own the boat that remains the clear leader in beauty, performance and comfort, guaranteeing the most superior river runs, fishing adventures or days on the lake with the family that you’ll ever experience.

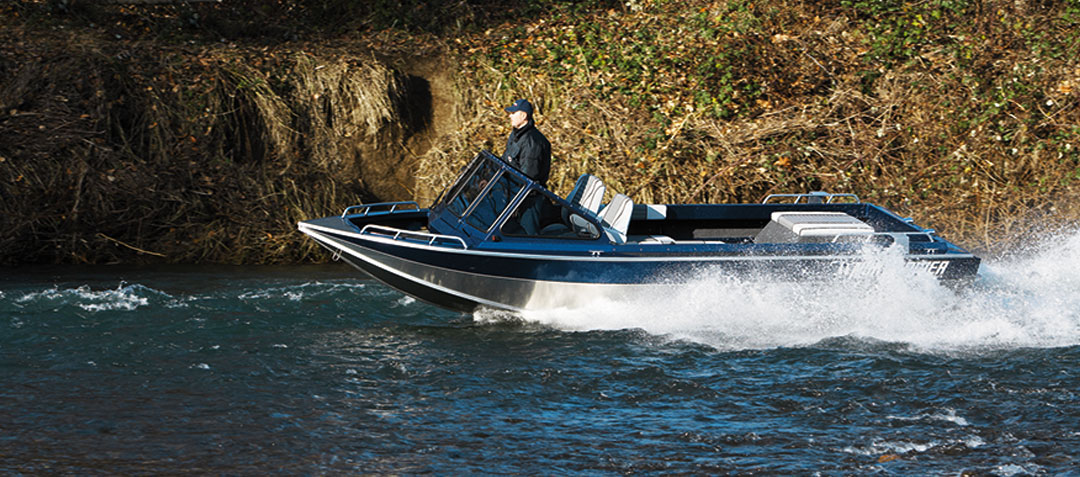

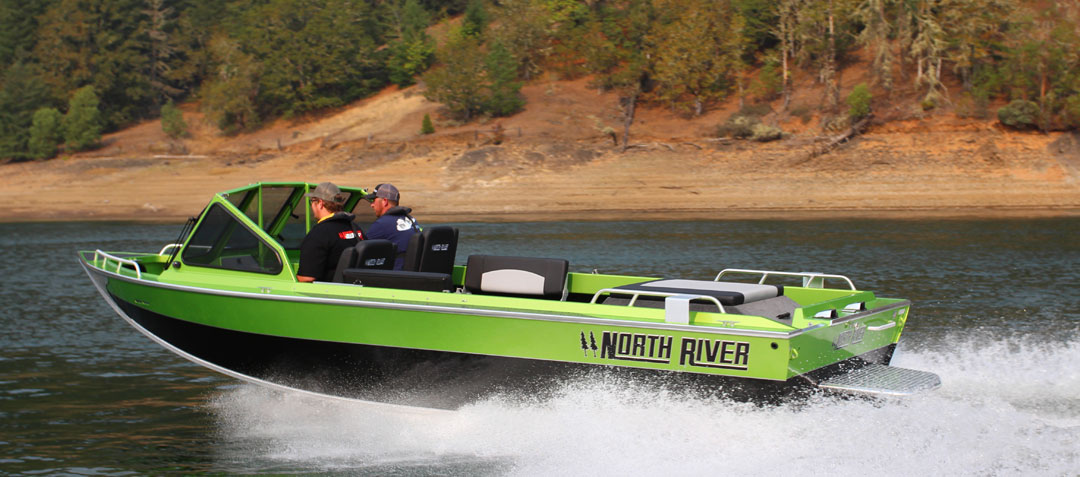

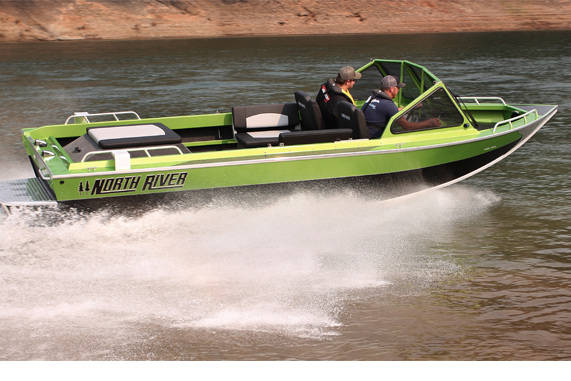

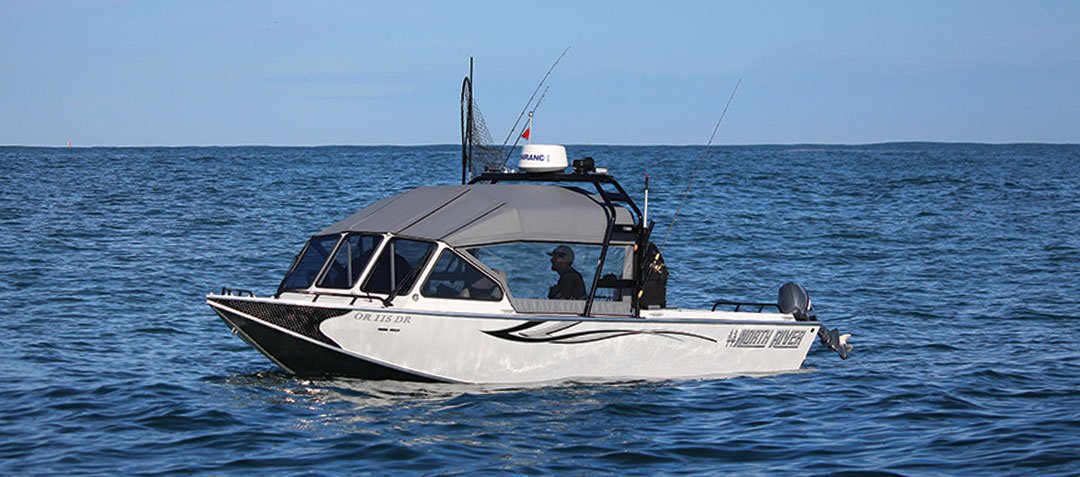

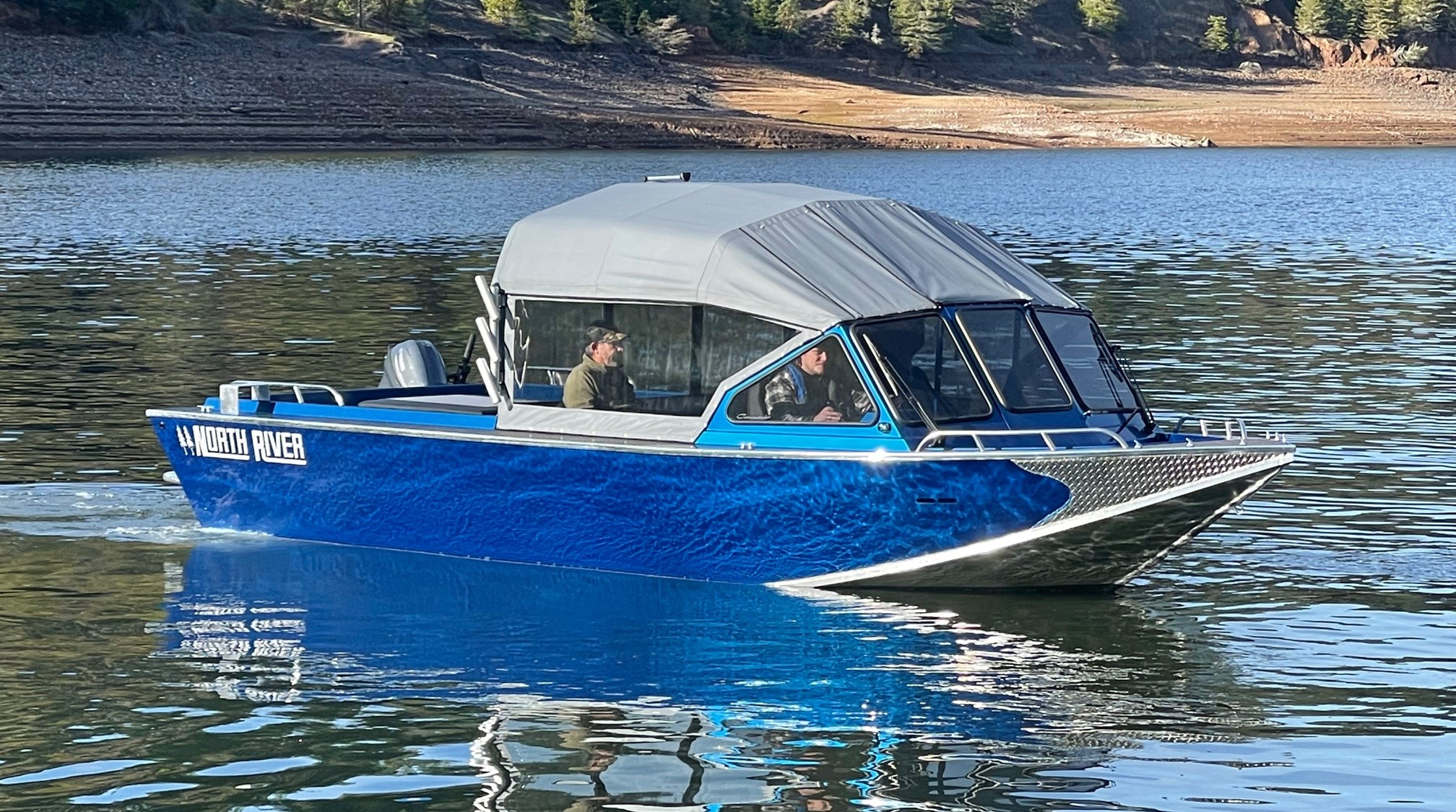

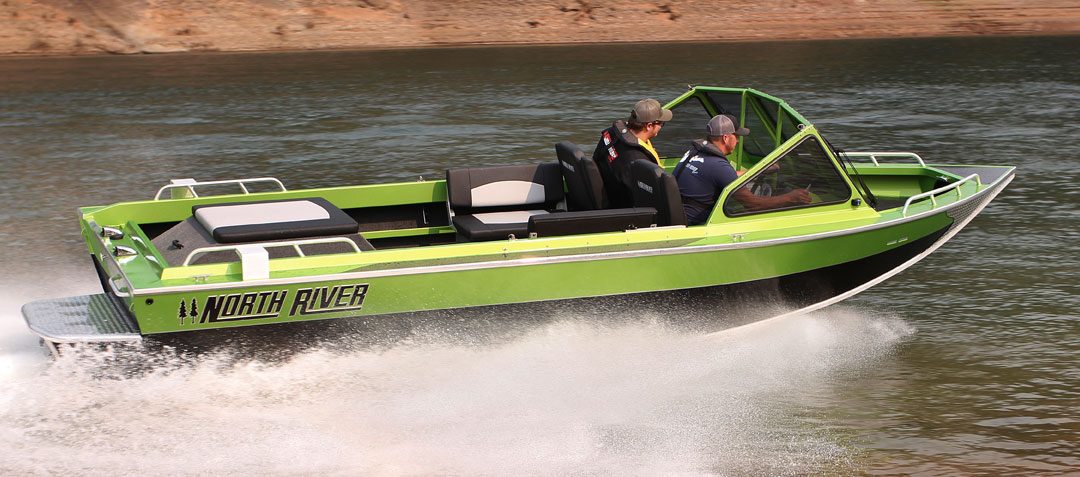

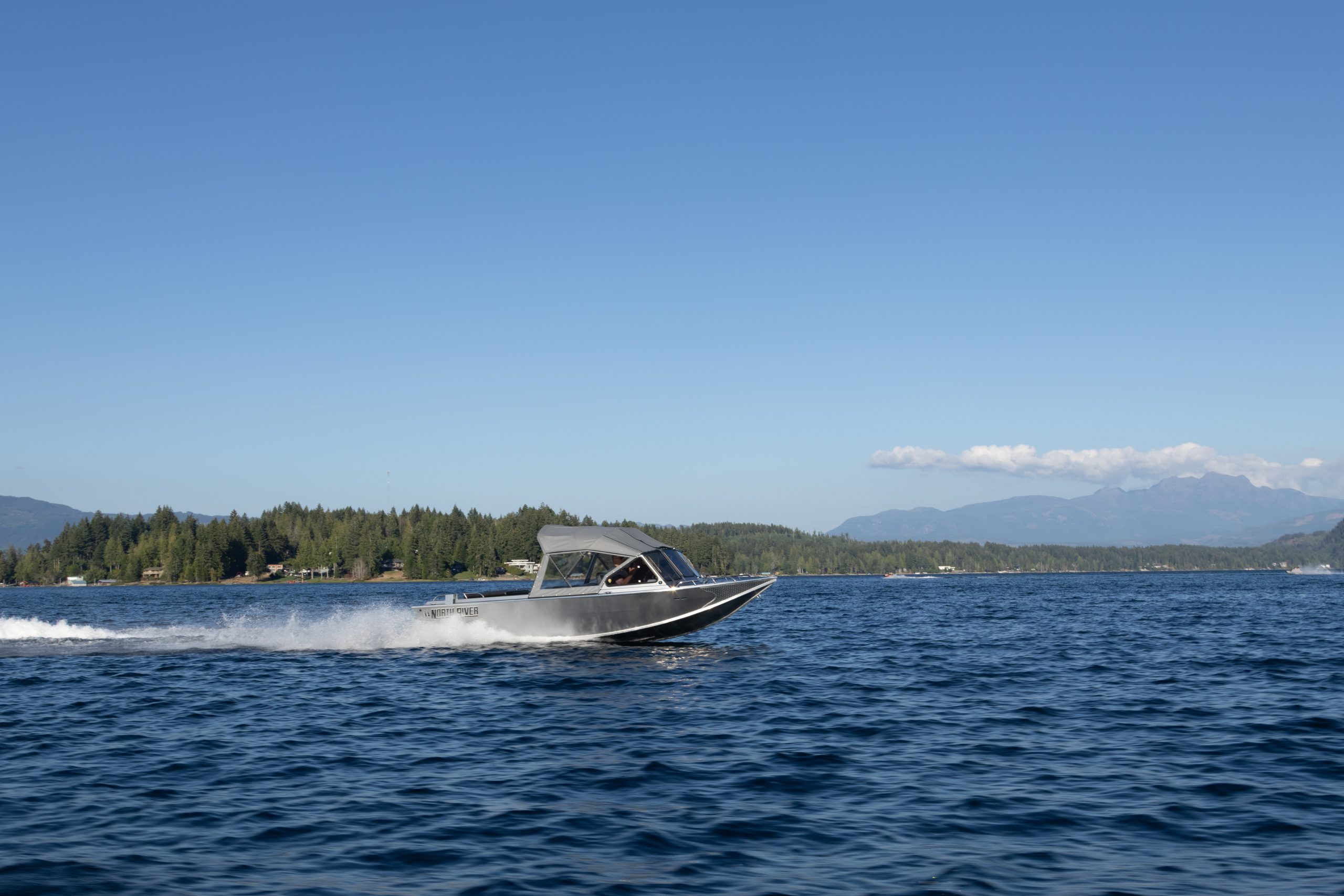

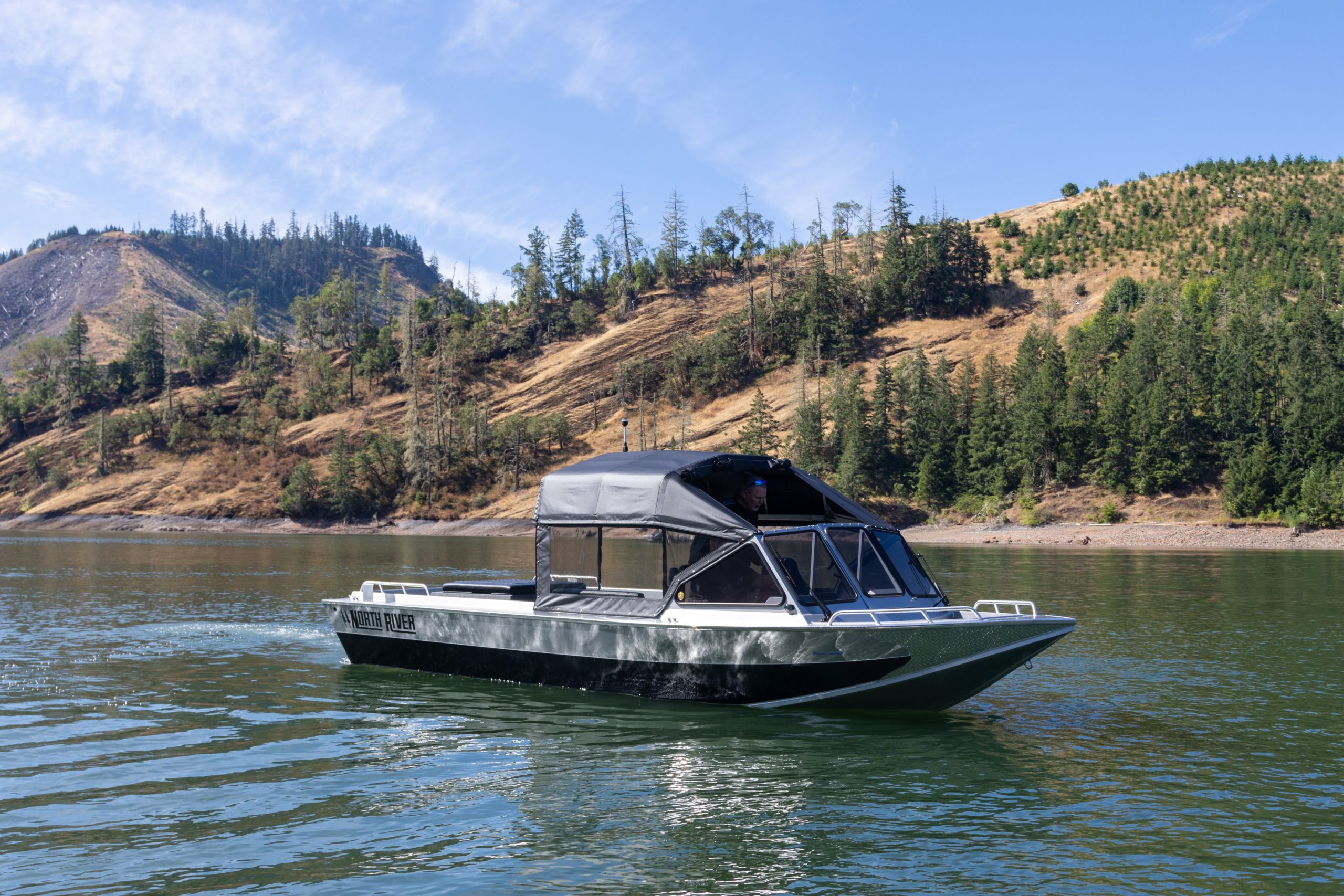

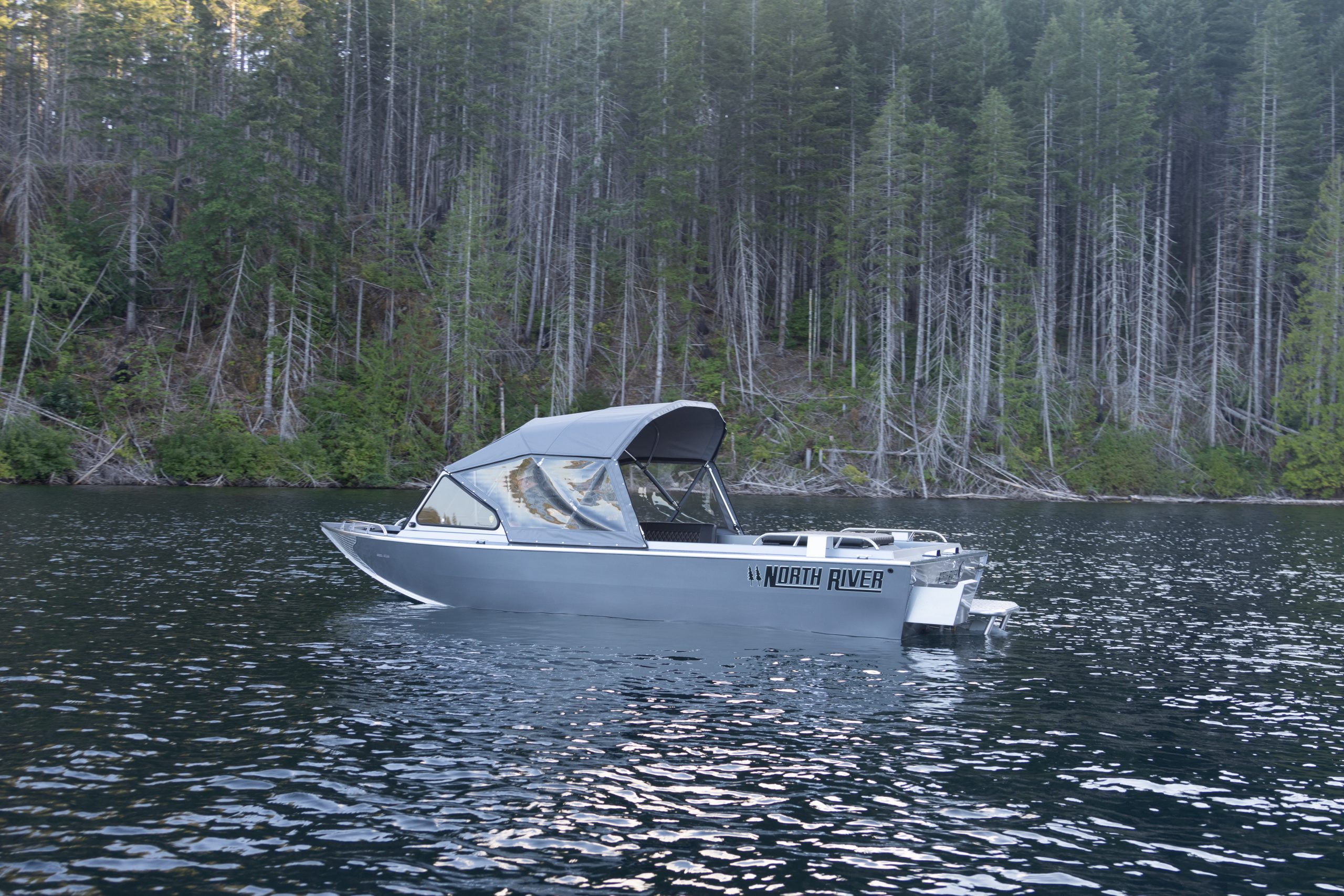

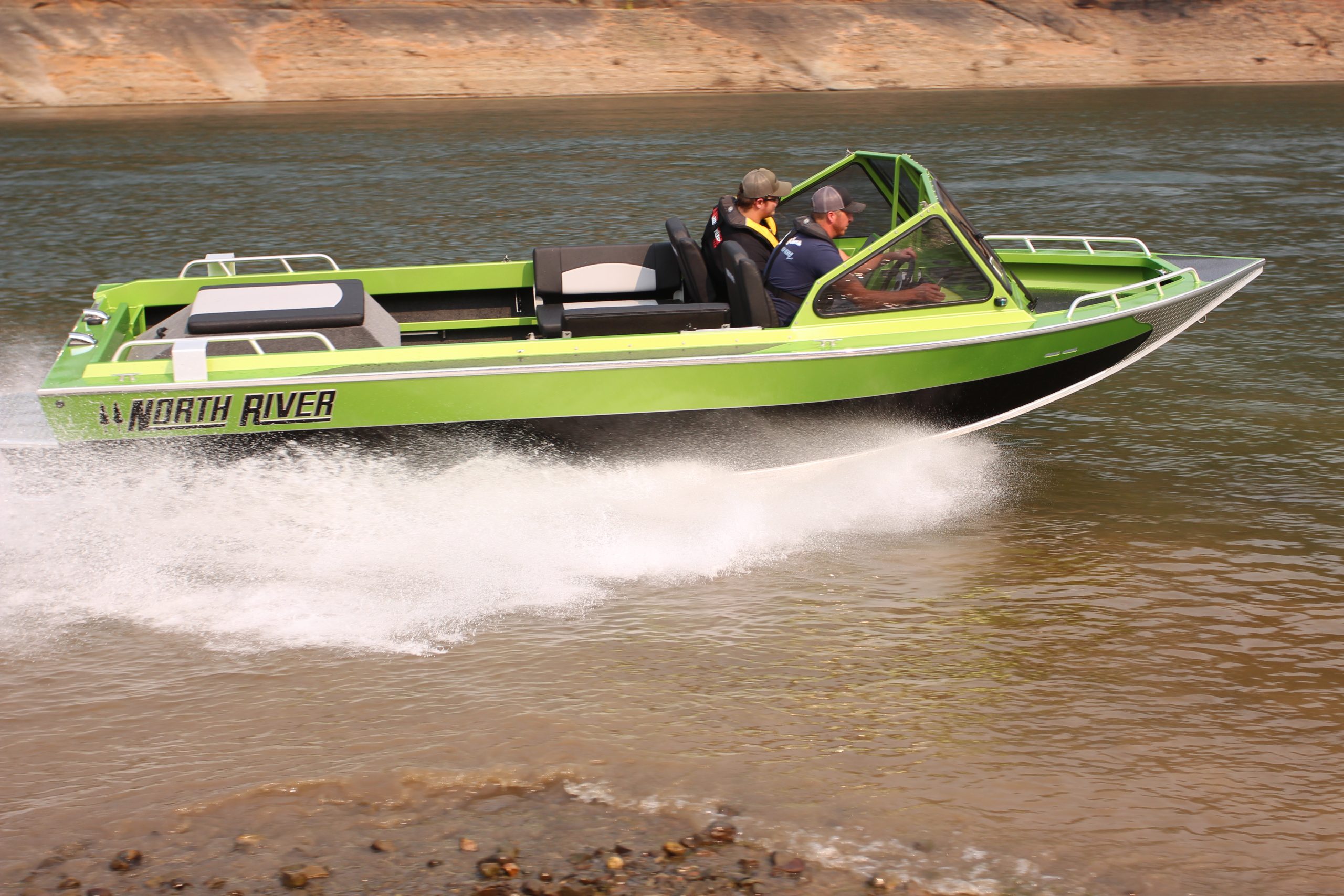

COMMANDER GALLERY
STANDARD FEATURES
Note: Boats in gallery photos may include optional features not included in standard base pricing.
ALUMINUM HULL FEATURES:
• Lifetime limited hull warranty to original purchaser
• H116 – 5086 aluminum bottom
• Heavy-duty bracing around engine and jet
• Heavy-duty extruded keel protector strip
• Six performance matched lifting and turning strakes
• Extra strong, welded walk-through windshield with 1/4″ tinted, tempered glass
• Unparalleled overall performance, strength and finish
EXTERIOR FEATURES:
• Five chrome rope cleats and ski tow hook
• Stainless steel bow and stern rails
• Stainless steel bow eye and welded transom eyes
• Stainless steel fasteners throughout
• Deluxe Top Gun canvas folding top with side and back drop curtains (Note: 21′ 6″ – 23′)
• Welded removable top frame with 3 rod holders and net holder (Note: 24’ & 25’)
• 3/4″ Width diamond plate swim platform
• One-step swim deck with stainless steel transom rail – starboard
• Transducer brackets
• Transom tie downs
PAINT FEATURES:
• Color Matched Zolatone interior paint with clear coat
• One color full side paint and transom paint with clear coat
• Polished gunwales
• Non-skid surface on gunwales, recessed bow and step
ENGINE AND JET FEATURES:
• C350 5.3L – 340HP with Hamilton 212 jet pump and turbo impeller
• Freshwater cooling with raw water system
INTERIOR FEATURES:
• Dash mounted single lever shift / throttle control
• Large lockable glove box
• Two NR2 helm seats on air adjustable pedestals
• Storage benches with cushion lids and folding back pads
• Extra-large lockable storage under bow
• Fully carpeted sides, trays and rod storage areas with rod retainers
• Cup holders (4) – side tray adjustable mount
• Durable aluminum floors with floor grip
• Aft opening engine compartment with engine cover cushion
• Under floor fuel tank with water separating filter
ELECTRICAL FEATURES:
• Deluxe lighted instrument panel including:
• Tachometer, oil pressure, water temperature, fuel, volt meter, and hour meter gauges
• Rocker switches with circuit breakers
• Audio / visual oil pressure and water temperature warning alarm system
• Dual windshield wipers
• Two 12-volt power points and double USB power socket
• Deluxe heater / defroster with 4 adjustable outlets
• Dual 1250 GPH high-capacity bilge pumps with auto float switch
• Recessed Horn
• Dual Odyssey dry cell batteries with selector switch
• Navigation / Anchor Lights L.E.D.
• L.E.D. interior accent lighting and bow storage light
TRAILER FEATURES:
• Trailer – tandem axle with brakes

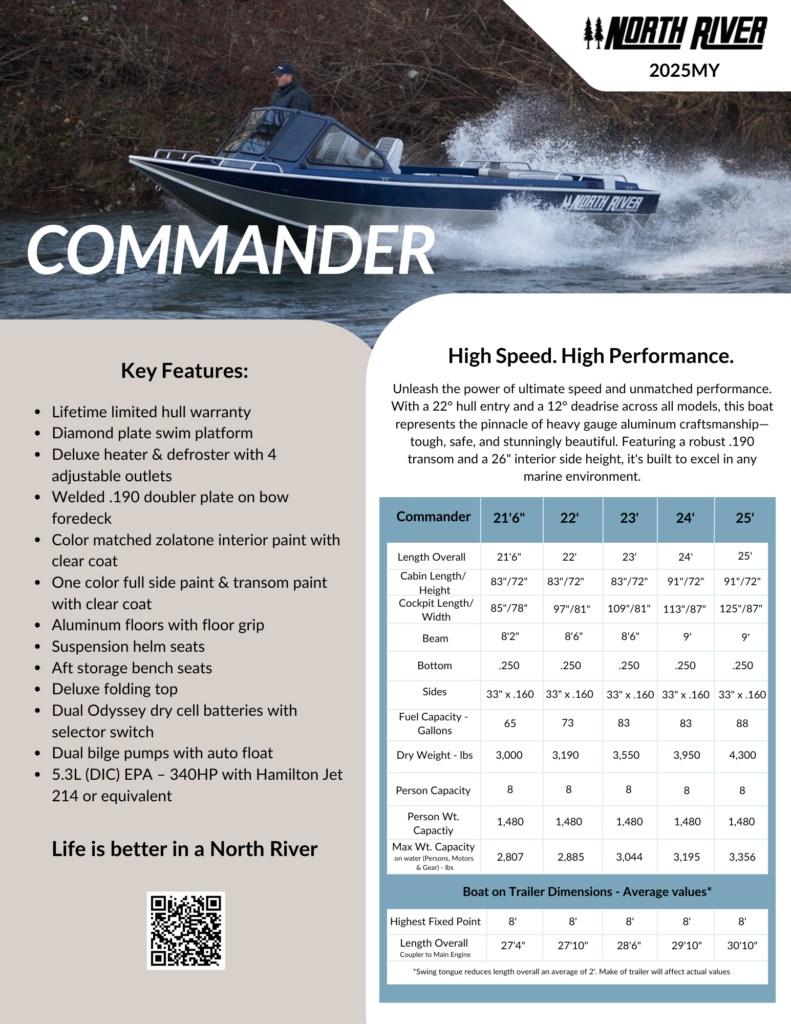

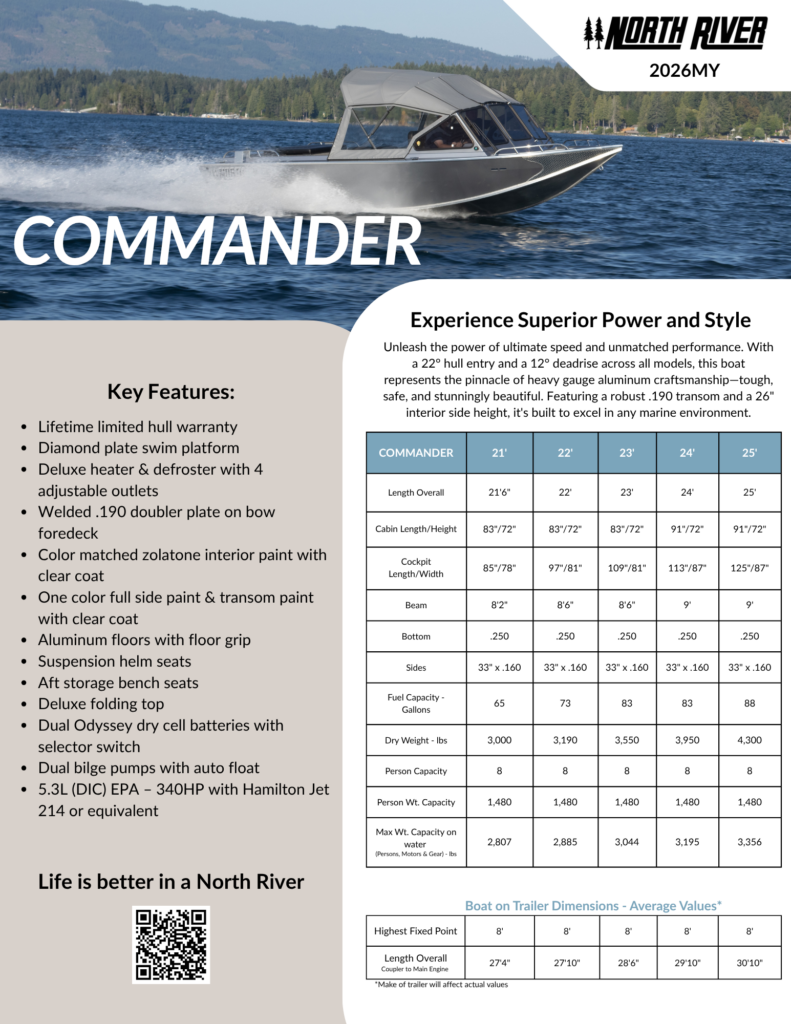

COMMANDER SPECIFICATIONS

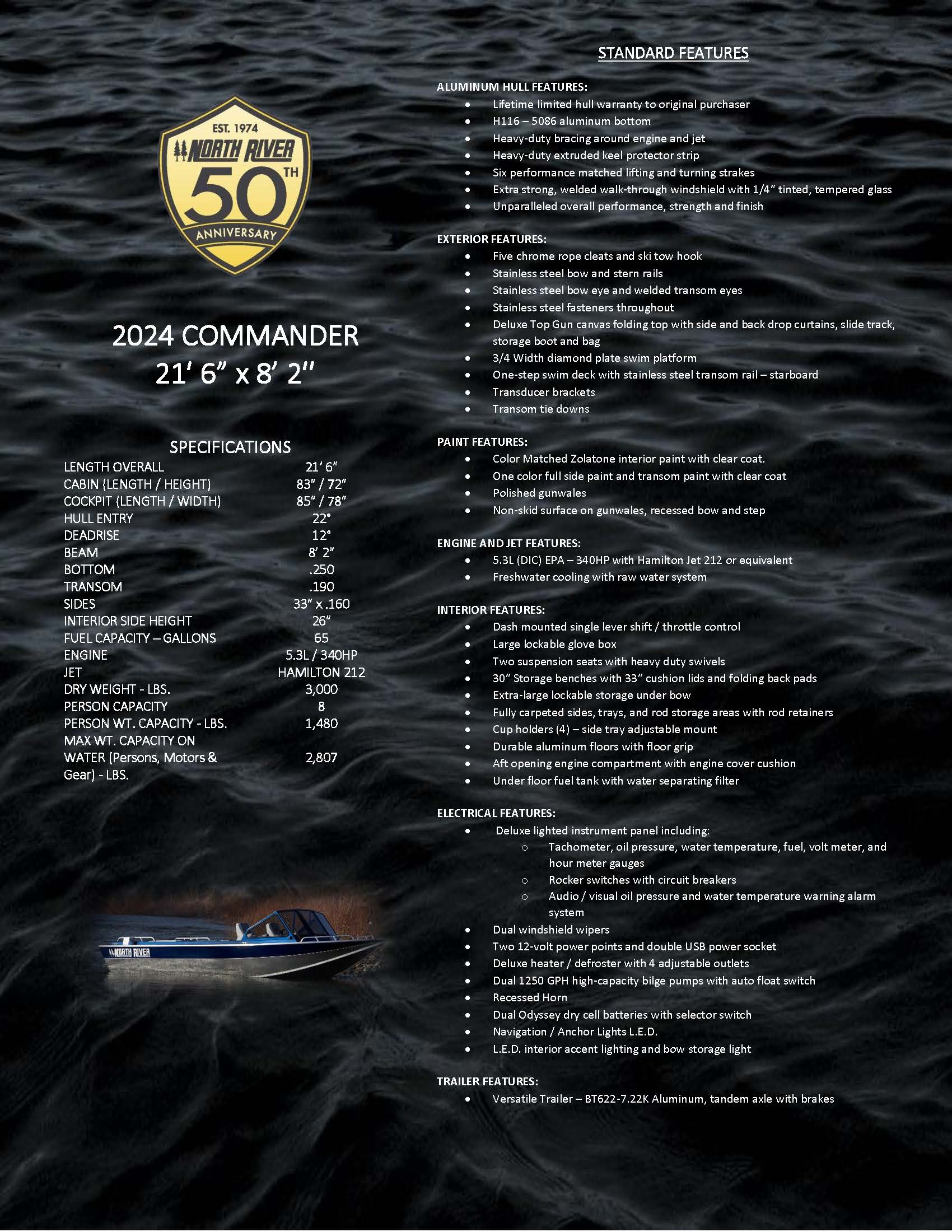

COMMANDER 21′ 6″
See drawing below for reference
| LENGTH OVERALL (A): | 21′ 6″ |
| CABIN (LENGTH C / HEIGHT): | 83″ / 72″ |
| COCKPIT (LENGTH D / WIDTH): | 85″ / 78″ |
| HULL ENTRY: | 22° |
| DEADRISE: | 12° |
| BEAM: | 8' 2" |
| BOTTOM: | .250 |
| TRANSOM: | .190 |
| SIDES: | 33″ x .160 |
| INTERIOR SIDE HEIGHT: | 26″ |
| FUEL CAPACITY: | 65 gallons |
| ENGINE: | 5.3/340 HP |
| JET: | Hamilton 212 |
| DRY WEIGHT: | 3,000 lbs. |
| PERSON CAPACITY: | 8 |
| PERSON WT. CAPACITY: | 1,480 lbs. |
| MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 2,807 lbs. |

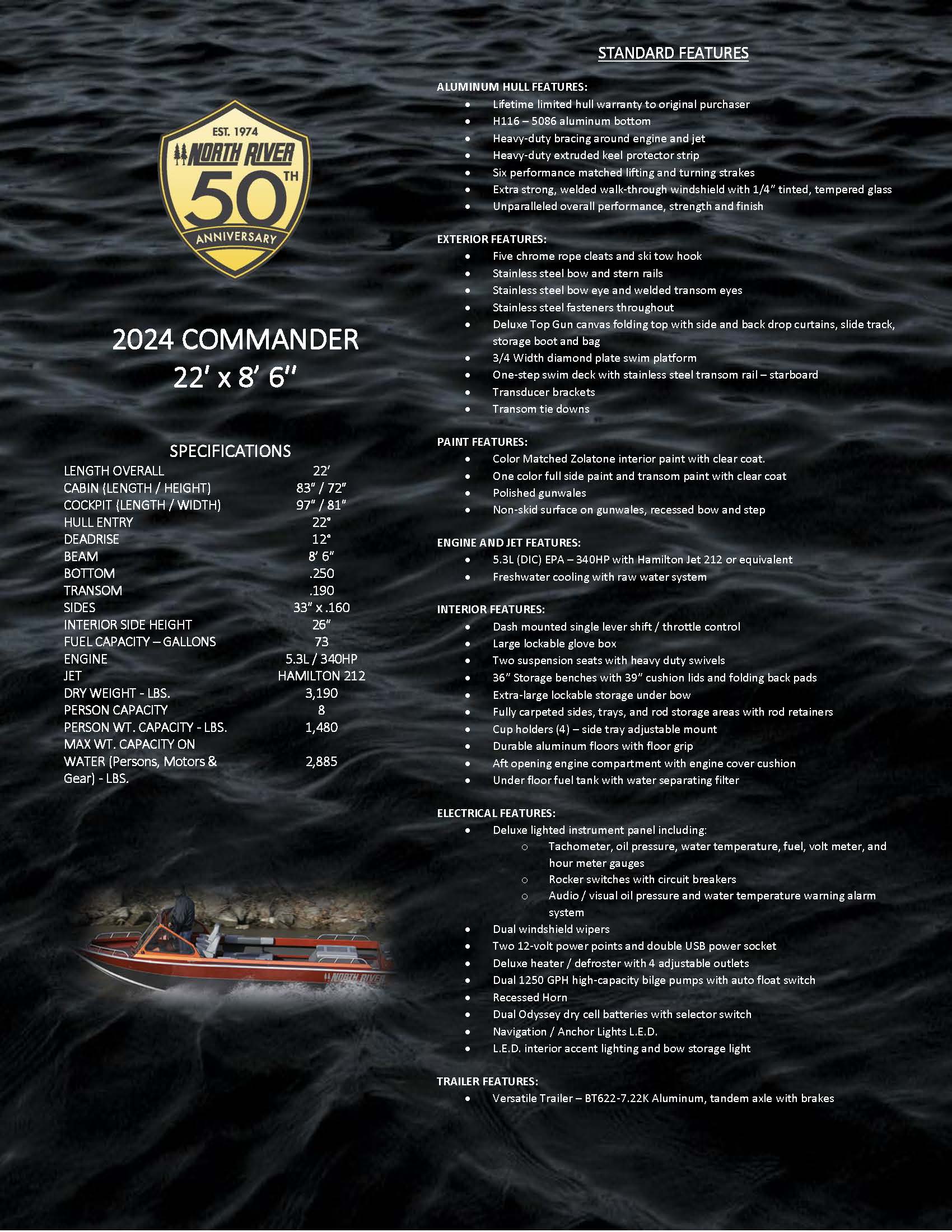

COMMANDER 22′
See drawing below for reference
| LENGTH OVERALL (A): | 22′ |
| CABIN (LENGTH C / HEIGHT): | 83″ / 72″ |
| COCKPIT (LENGTH D / WIDTH): | 97″ / 81″ |
| HULL ENTRY: | 22° |
| DEADRISE: | 12° |
| BEAM: | 8' 6" |
| BOTTOM: | .250 |
| TRANSOM: | .190 |
| SIDES: | 33″ x .160 |
| INTERIOR SIDE HEIGHT: | 26″ |
| FUEL CAPACITY: | 73 gallons |
| ENGINE: | 5.3/340 HP |
| JET: | Hamilton 212 |
| DRY WEIGHT: | 3,190 lbs. |
| PERSON CAPACITY: | 8 |
| PERSON WT. CAPACITY: | 1,480 lbs. |
| MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 2,885 lbs. |

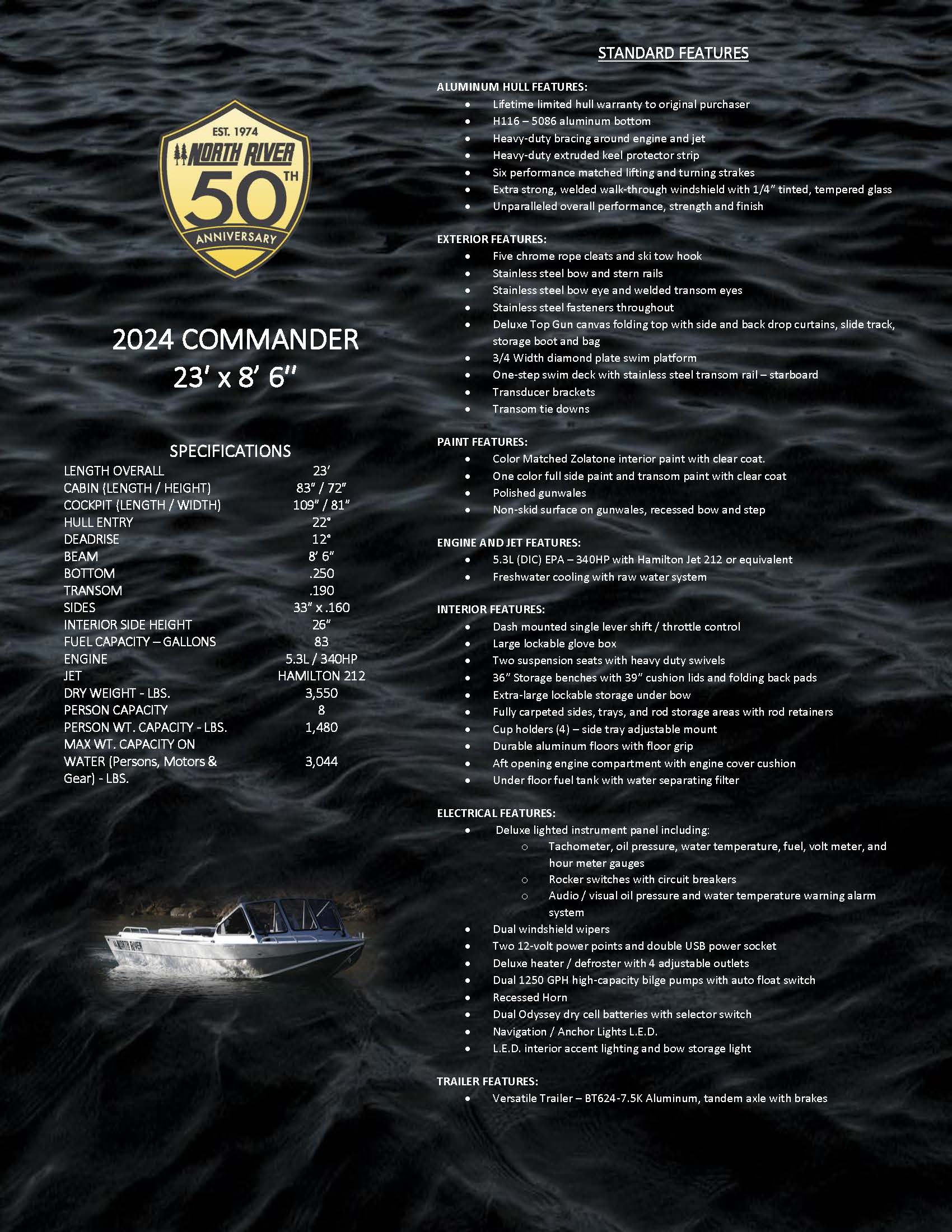

COMMANDER 23′
See drawing below for reference
| LENGTH OVERALL (A): | 23′ |
| CABIN (LENGTH C / HEIGHT): | 83″ / 72″ |
| COCKPIT (LENGTH D / WIDTH): | 109″ / 81″ |
| HULL ENTRY: | 22° |
| DEADRISE: | 12° |
| BEAM: | 8' 6" |
| BOTTOM: | .250 |
| TRANSOM: | .190 |
| SIDES: | 33″ x .160 |
| INTERIOR SIDE HEIGHT: | 26″ |
| FUEL CAPACITY: | 83 gallons |
| ENGINE: | 5.3/340 HP |
| JET: | Hamilton 212 |
| DRY WEIGHT: | 3,550 lbs. |
| PERSON CAPACITY: | 8 |
| PERSON WT. CAPACITY: | 1,480 lbs. |
| MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 3,044 lbs. |

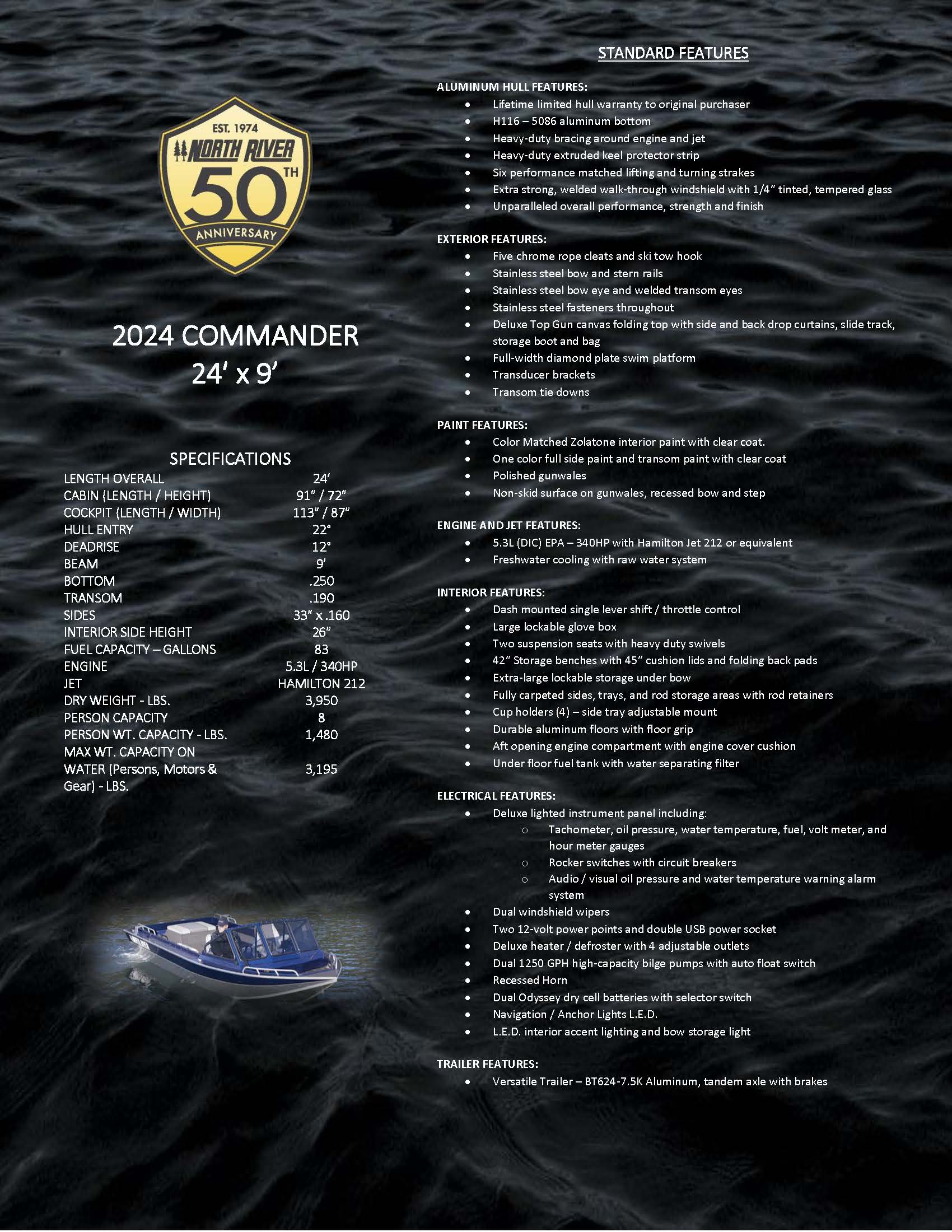

COMMANDER 24′
See drawing below for reference
| LENGTH OVERALL (A): | 24′ |
| CABIN (LENGTH C / HEIGHT): | 91″ / 72″ |
| COCKPIT (LENGTH D / WIDTH): | 113″ / 87″ |
| HULL ENTRY: | 22° |
| DEADRISE: | 12° |
| BEAM: | 9' |
| BOTTOM: | .250 |
| TRANSOM: | .190 |
| SIDES: | 33″ x .160 |
| INTERIOR SIDE HEIGHT: | 26″ |
| FUEL CAPACITY: | 83 gallons |
| ENGINE: | 5.3/340 HP |
| JET: | Hamilton 212 |
| DRY WEIGHT: | 3,950 lbs. |
| PERSON CAPACITY: | 8 |
| PERSON WT. CAPACITY: | 1,480 lbs. |
| MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 3,195 lbs. |

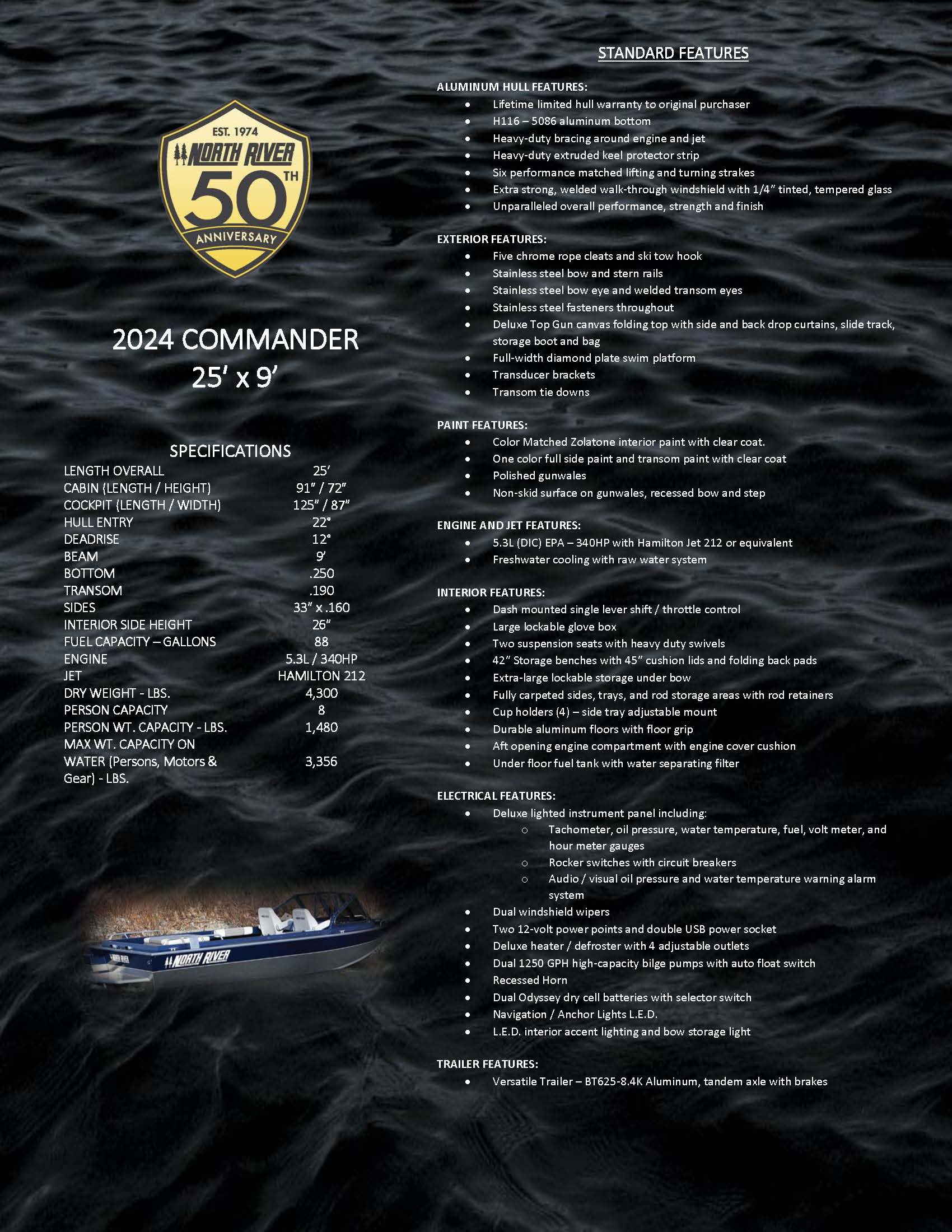

COMMANDER 25′
See drawing below for reference
| LENGTH OVERALL (A): | 25′ |
| CABIN (LENGTH C / HEIGHT): | 91″ / 72″ |
| COCKPIT (LENGTH D / WIDTH): | 125″ / 87″ |
| HULL ENTRY: | 22° |
| DEADRISE: | 12° |
| BEAM: | 9' |
| BOTTOM: | .250 |
| TRANSOM: | .190 |
| SIDES: | 33″ x .160 |
| INTERIOR SIDE HEIGHT: | 26″ |
| FUEL CAPACITY: | 88 gallons |
| ENGINE: | 5.3/340 HP |
| JET: | Hamilton 212 |
| DRY WEIGHT: | 4,300 lbs. |
| PERSON CAPACITY: | 8 |
| PERSON WT. CAPACITY: | 1,480 lbs. |
| MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 3,356 lbs. |
