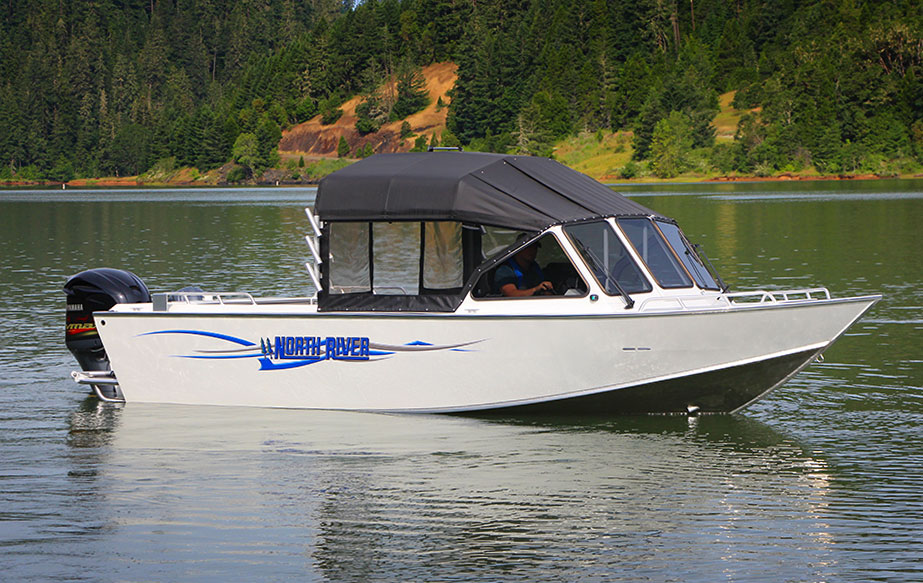

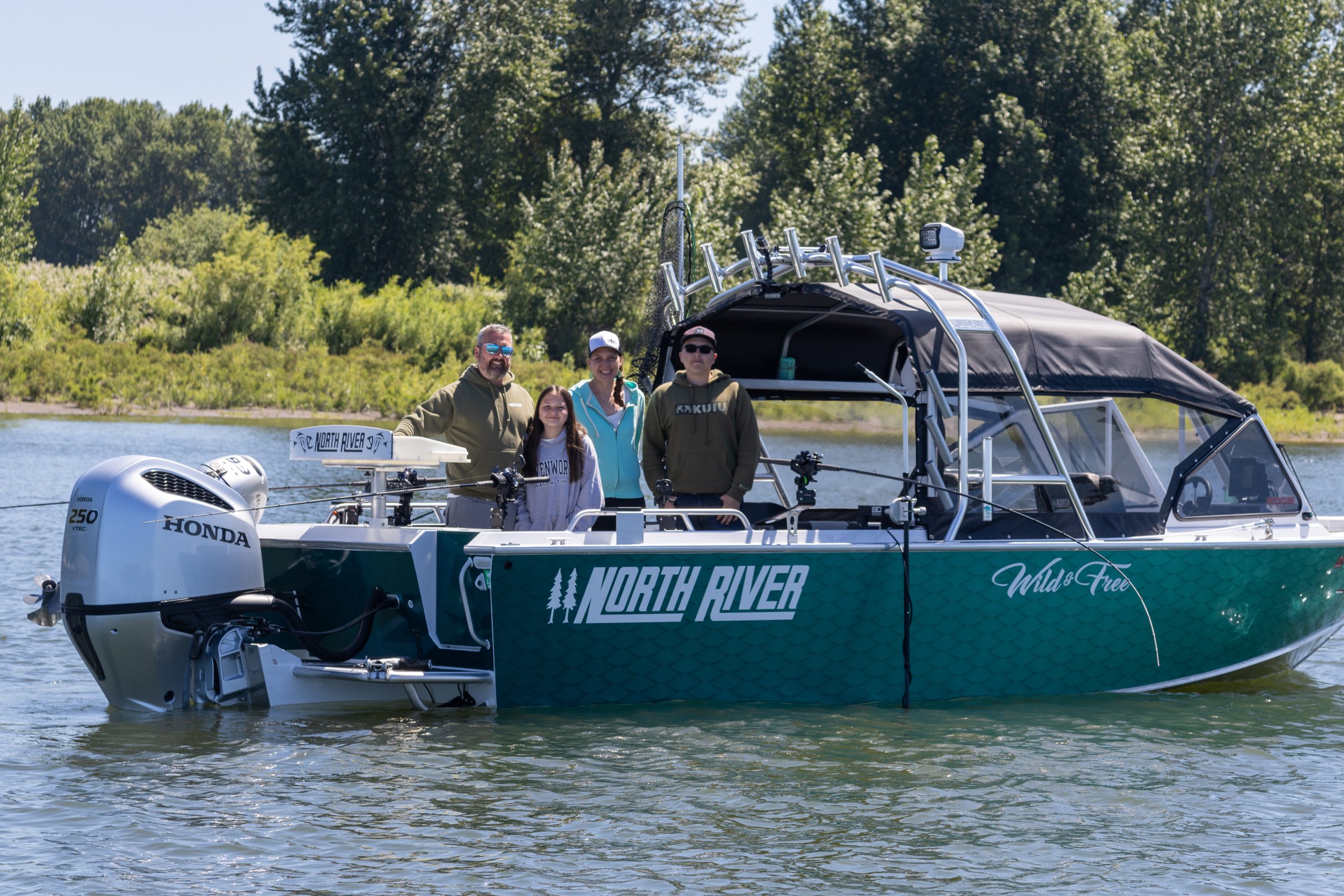

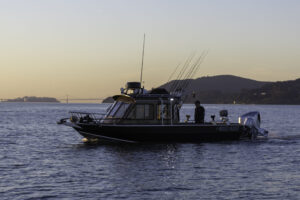

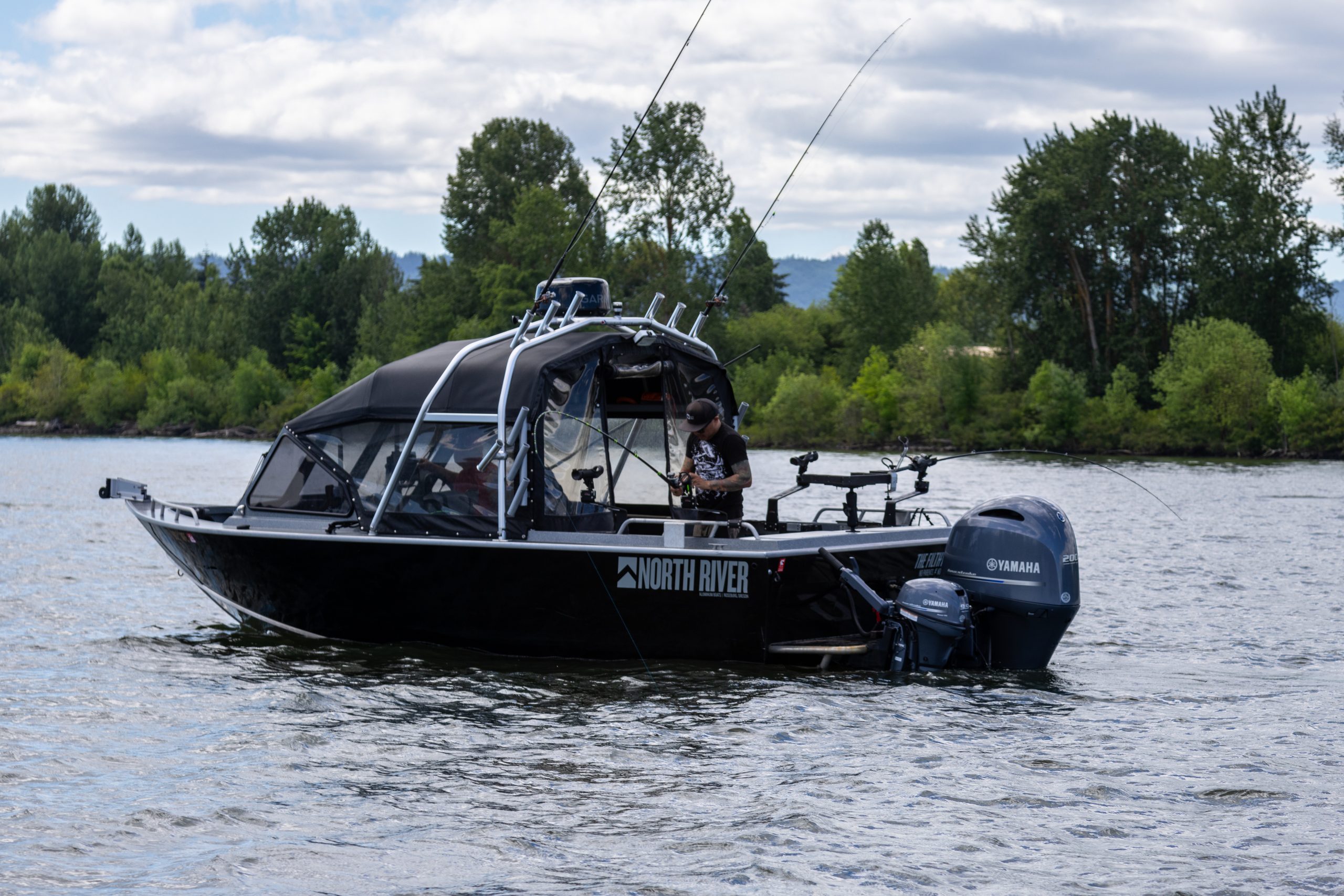

SEAHAWK OUTBOARD
The North River Seahawk is as beautiful as it is functional. The hull is shaped and precision welded to increase strength and create a smooth seamless surface to maximize ride, engine efficiency and performance.
The Deep Vee bottom shape, along with specially calibrated strakes, precision extruded chines and offshore bracket are responsible for the Seahawk’s quick planing, straight tracking and highly controlled turns.
Fishing purists have long championed the extremely well-built Seahawk as the most comfortable smooth riding, spacious and stable fishing platform in its class.

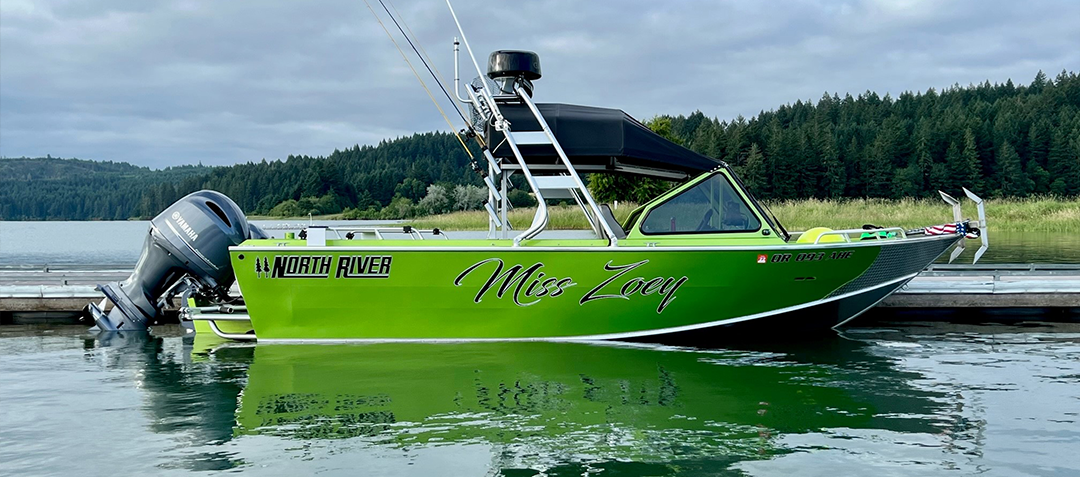

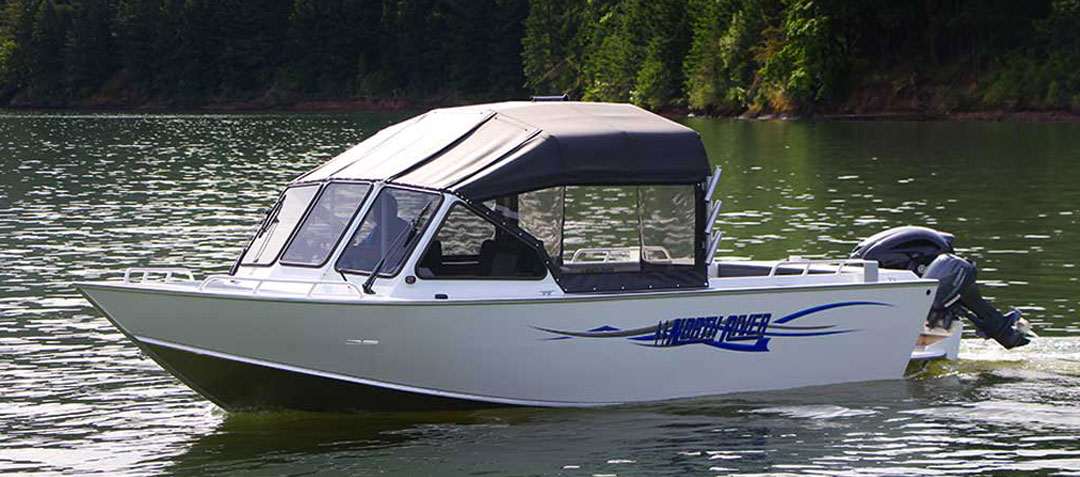

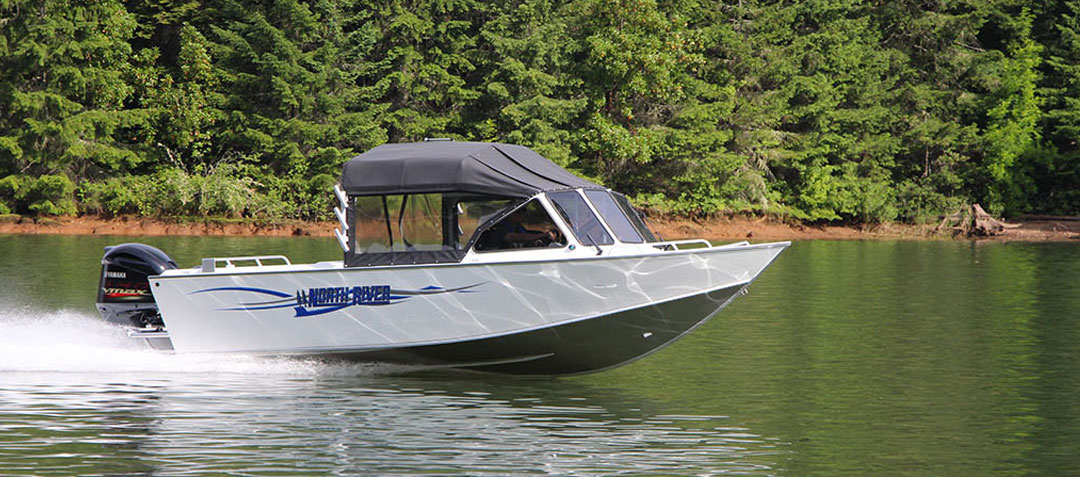

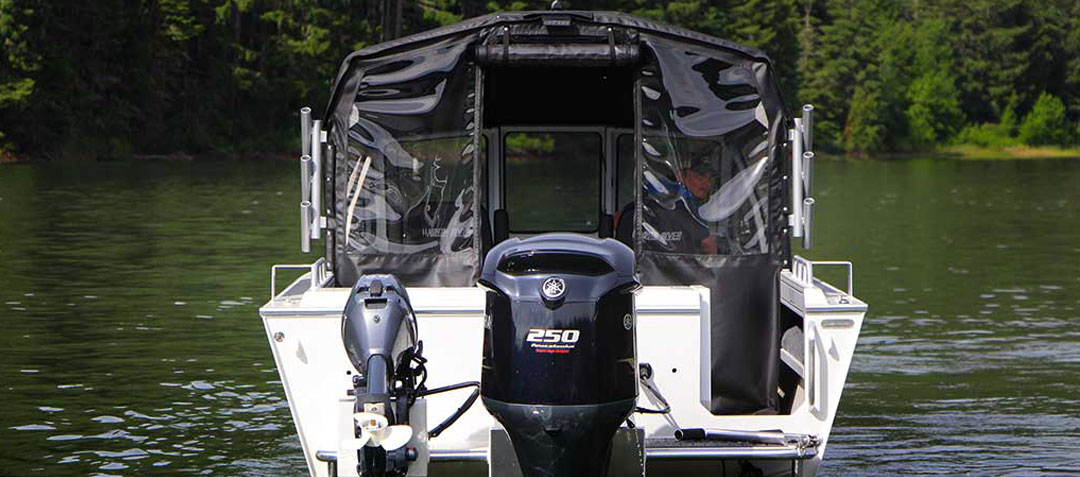

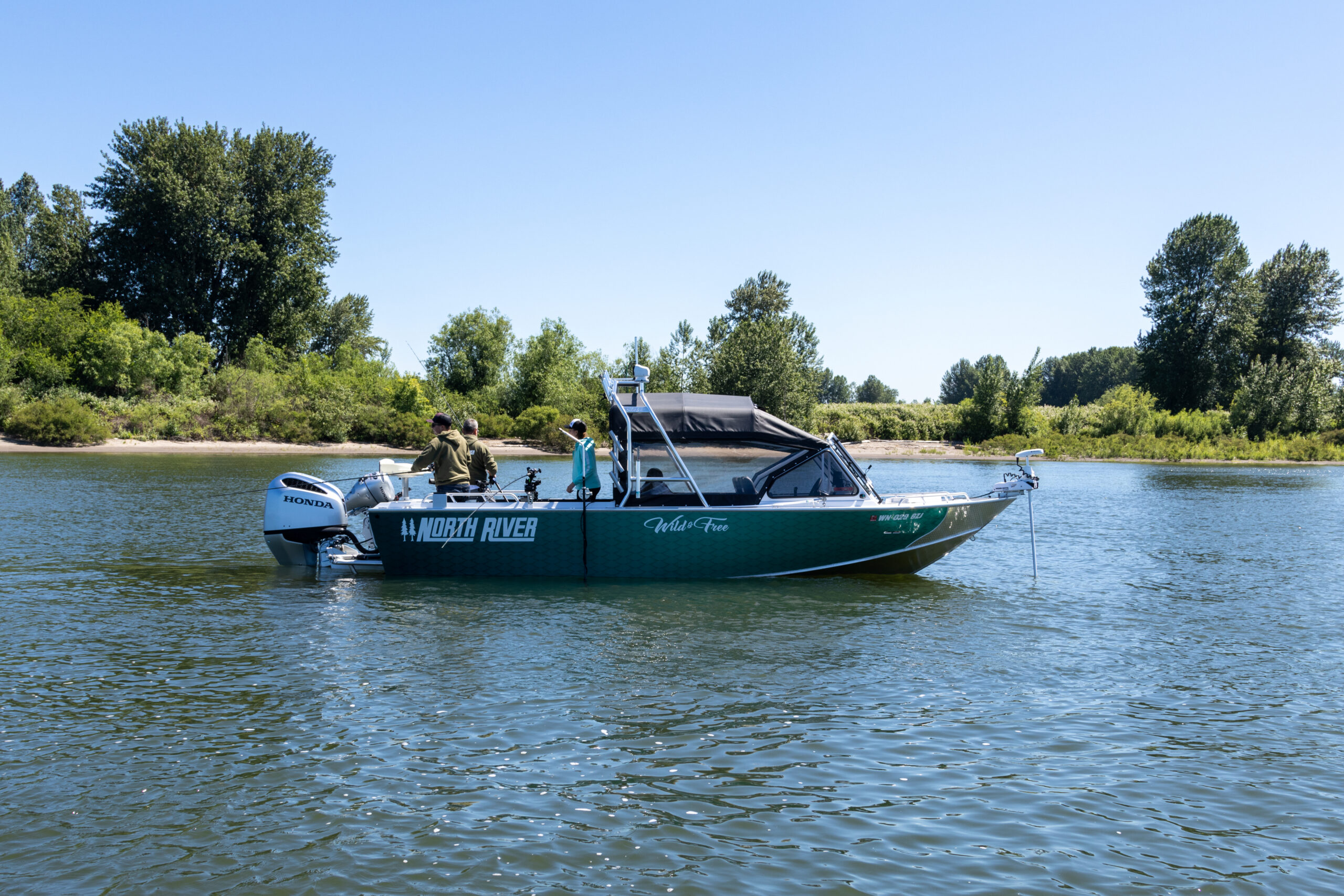

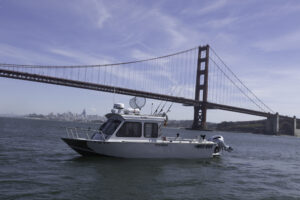

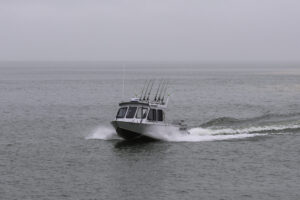

Seahawk Outboard Boat Profiles
STANDARD FEATURES
Note: Boats in gallery photos may include optional features not included in standard base pricing.
ALUMINUM HULL FEATURES:
• Lifetime limited hull warranty to original purchaser
• 5086 – H116 aluminum bottom
• Rigid longitudinal box beam bottom bracing
• Performance matched reverse chines, lifting and turning strakes
• Extra strong, welded walk-through windshield with 1/4″ tinted glass
• Offshore motor bracket
• Unparalleled overall performance, strength and finish
EXTERIOR FEATURES:
• Cowled gunwales for added strength
• Five welded rope cleats
• Welded brushed aluminum down rigger brackets
• Welded brushed aluminum stern rails
• Welded brushed aluminum bow rails
• Welded NR swim deck trolling motor bracket portside
• Stainless steel bow eye and welded transom eyes
• Stainless steel fasteners throughout
• Rear cowling fish boxes and center pylon receiver
• Deluxe Top Gun canvas folding top with side and back drop curtains (Note: 18’6 through 23′)
• Welded removable top frame with 3 rod holders and net holder (Note: 24′ & 25′)
• Transducer brackets
• Transom tie downs
PAINT FEATURES:
• Zolatone interior paint with clear coat. One color full side paint and transom stripe (Note: 21′ through 25′). One color full side vinyl and transom stripe (Note: 18’6 & 20′)
• Polished gunwales
• Non-skid surface on gunwales, recessed bow and step
INTERIOR FEATURES:
• Large lockable glove box
• Durable aluminum floors
• Full-width aft storage for battery and outfitting components
• Full-length side trays with rod retainers
• Carpet above side trays, front bulkhead and bow storage area
• Cup holders (4) – side tray adjustable mount
• Two Suspension seats with severe duty chassis and swivels (Note: 21′ through 25′)
• Two North River captain’s chairs on air adjustable pedestals (Note: 18’6 & 20′)
• Storage benches with cushioned lids and folding back pads
• Extra-large lockable storage under bow
• Under floor fuel tank with water separating filter
ELECTRICAL FEATURES:
• Fuel gauge
• Dash panel – rocker switches
• Dual windshield wipers
• 12 volt power point and double USB power socket
• 1250 GPH high capacity bilge pump with auto float switch
• Recessed horn
• Heavy-duty marine battery and tray with on/off switch
• Trim tabs (Note: 21′ through 25′ only)
• Navigation / Anchor Lights L.E.D.
• L.E.D. interior accent lighting and bow storage light
TRAILER FEATURES:
• EZ Loader galvanized trailer with hydraulic disc brakes, chine load guides, slick bunks and L.E.D. lighting

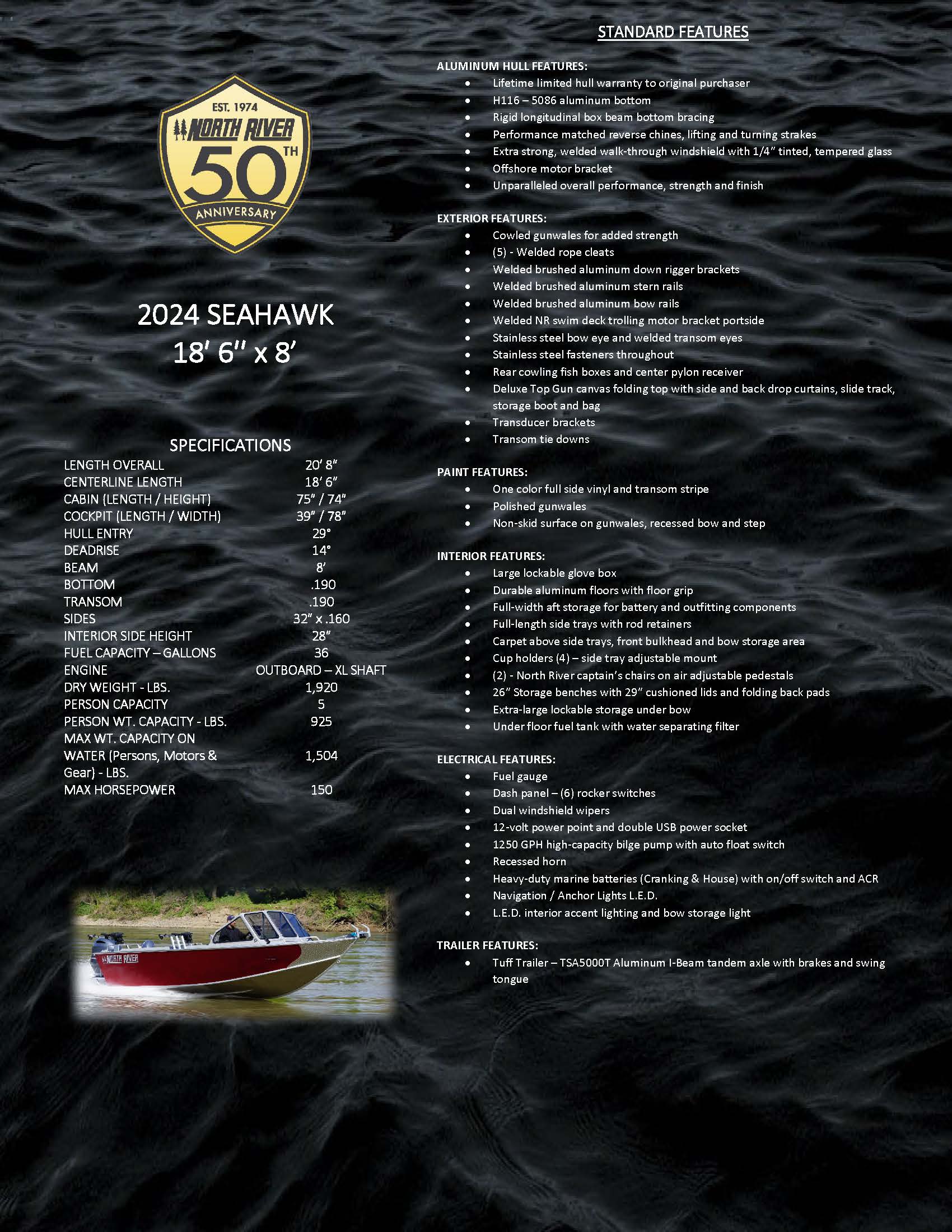

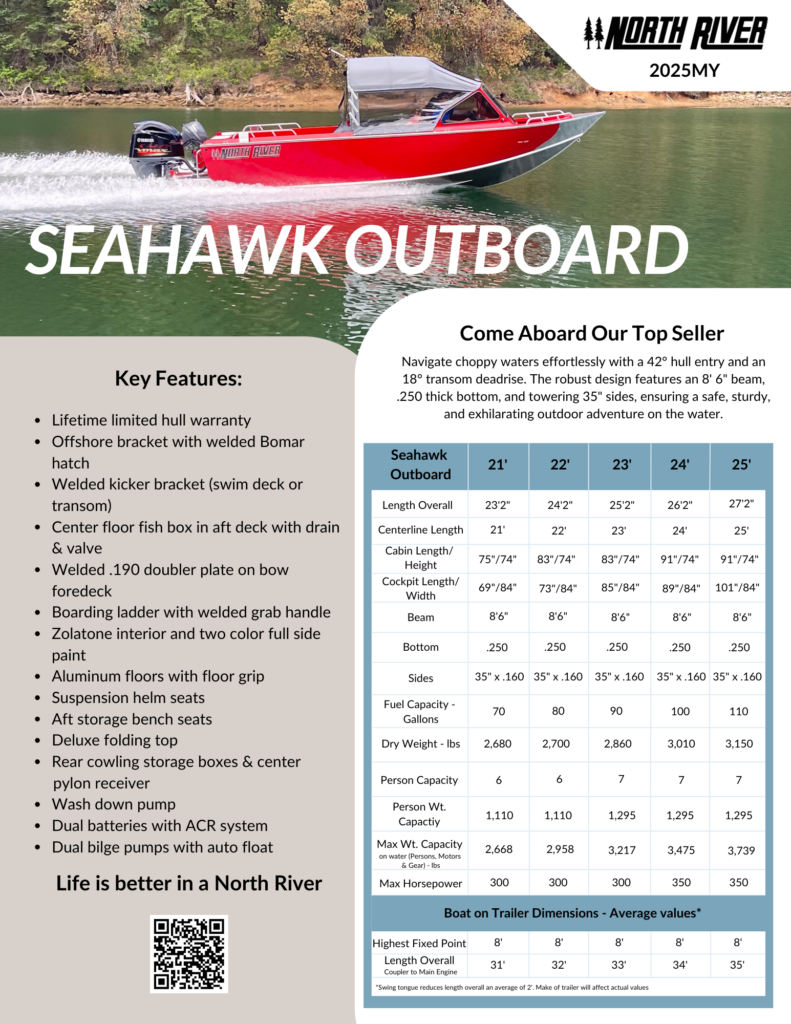

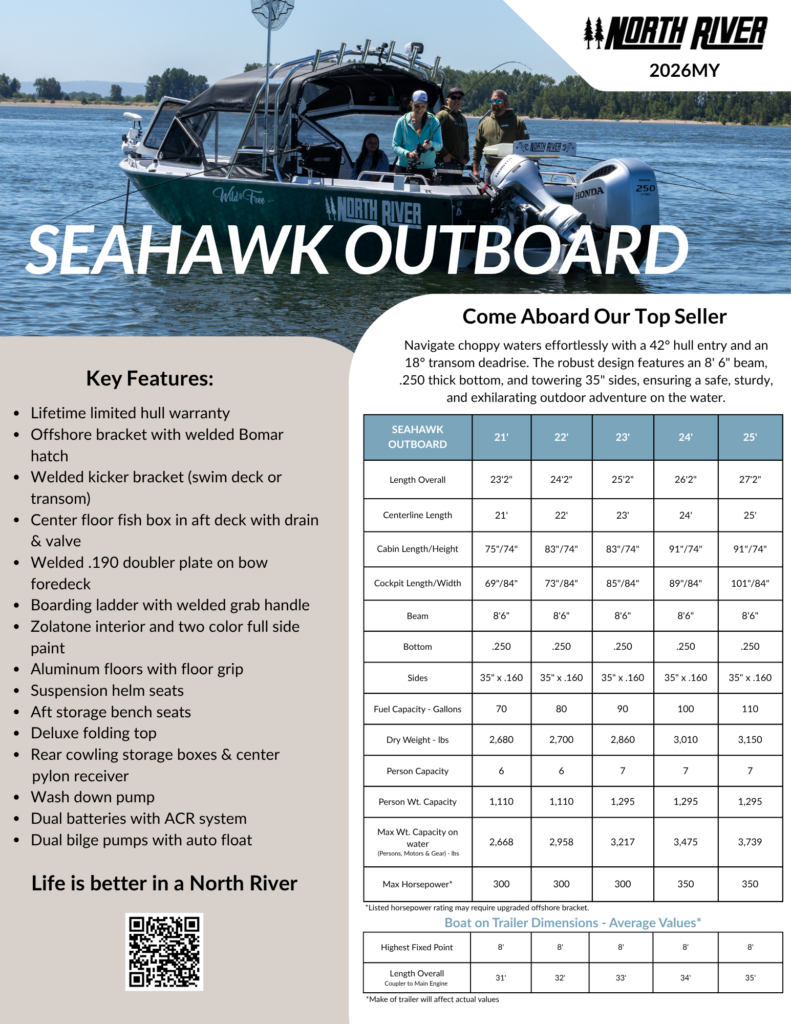

SEAHAWK OUTBOARD SPECIFICATIONS
SEAHAWK OUTBOARD 18′ 6″
See drawing below for reference
LENGTH OVERALL (A): | 20′ 8″ |
CENTERLINE LENGTH (B): | 18′ 6″ |
CABIN (LENGTH C / HEIGHT): | 75″ / 74″ |
COCKPIT (LENGTH D / WIDTH): | 39″ / 78″ |
HULL ENTRY: | 29° |
DEADRISE: | 14° |
BEAM: | 8' |
BOTTOM: | .190 |
TRANSOM: | 0.190 |
SIDES: | 32″ x .160 |
INTERIOR SIDE HEIGHT: | 28″ |
FUEL CAPACITY: | 36 gallons |
ENGINE: | Outboard – XL Shaft |
DRY WEIGHT: | 1,920 lbs. |
PERSON CAPACITY: | 5 |
PERSON WT. CAPACITY: | 925 lbs. |
MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 1,504 lbs. |
MAX HORSEPOWER: | 150 hp |

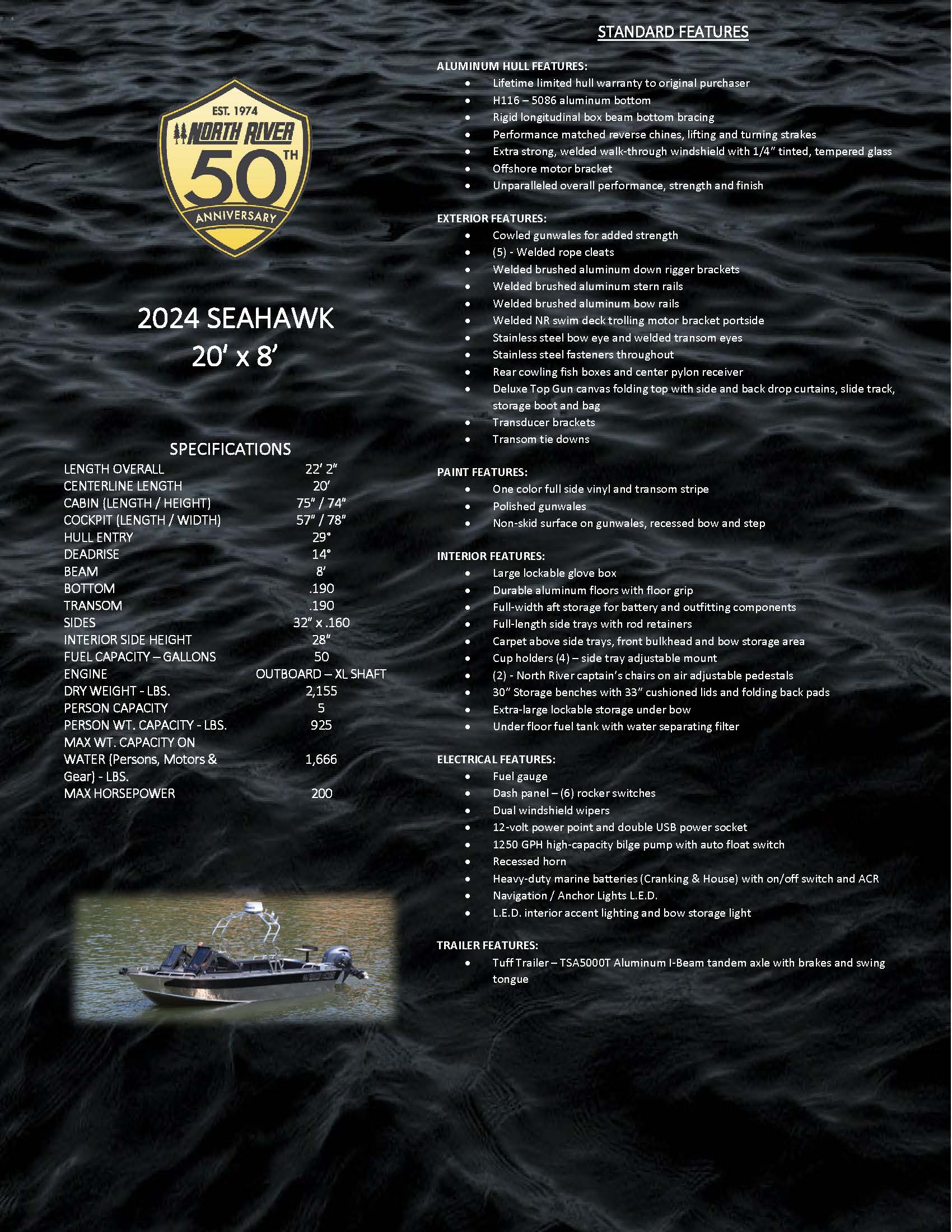

SEAHAWK OUTBOARD 20′
See drawing below for reference
LENGTH OVERALL (A): | 22′ 2″ |
CENTERLINE LENGTH (B): | 20′ |
CABIN (LENGTH C / HEIGHT): | 75″ / 74″ |
COCKPIT (LENGTH D / WIDTH): | 57″ / 78″ |
HULL ENTRY: | 29° |
DEADRISE: | 14° |
BEAM: | 8' |
BOTTOM: | .190 |
TRANSOM: | .190 |
SIDES: | 32″ x .160 |
INTERIOR SIDE HEIGHT: | 28″ |
FUEL CAPACITY: | 50 gallons |
ENGINE: | Outboard – XL Shaft |
DRY WEIGHT: | 2,155 lbs. |
PERSON CAPACITY: | 5 |
PERSON WT. CAPACITY: | 925 lbs. |
MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 1,666 lbs. |
MAX HORSEPOWER: | 200 hp |

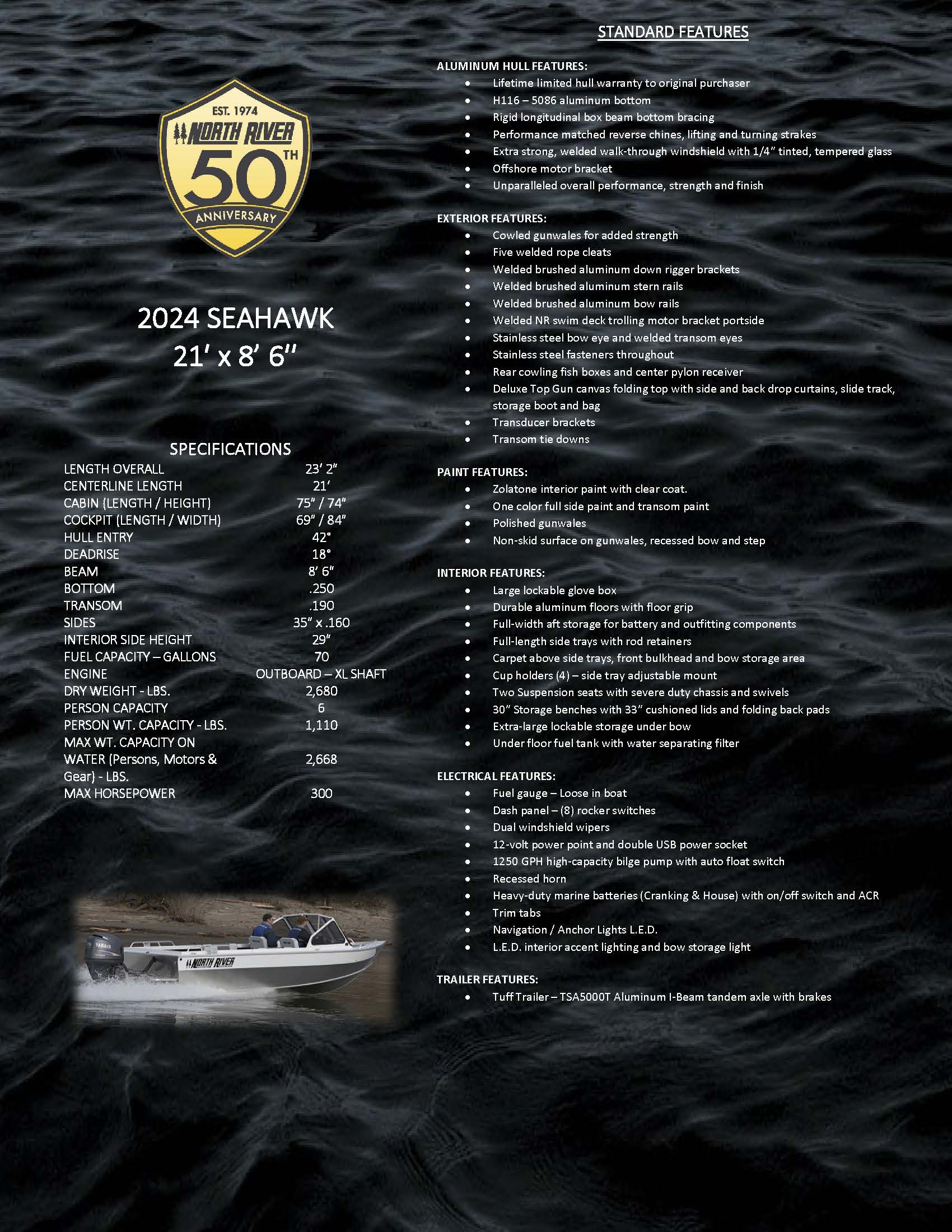

SEAHAWK OUTBOARD 21′
See drawing below for reference
LENGTH OVERALL (A): | 23′ 2″ |
CENTERLINE LENGTH (B): | 21′ |
CABIN (LENGTH C / HEIGHT): | 75″ / 74″ |
COCKPIT (LENGTH D / WIDTH): | 69″ / 84″ |
HULL ENTRY: | 42° |
DEADRISE: | 18° |
BEAM: | 8' 6" |
BOTTOM: | .250 |
TRANSOM: | 0.190 |
SIDES: | 35″ x .160 |
INTERIOR SIDE HEIGHT: | 29″ |
FUEL CAPACITY: | 70 gallons |
ENGINE: | Outboard – XL Shaft |
DRY WEIGHT: | 2,680 lbs. |
PERSON CAPACITY: | 6 |
PERSON WT. CAPACITY: | 1,110 lbs. |
MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 2,668 lbs. |
MAX HORSEPOWER: | 300 hp |

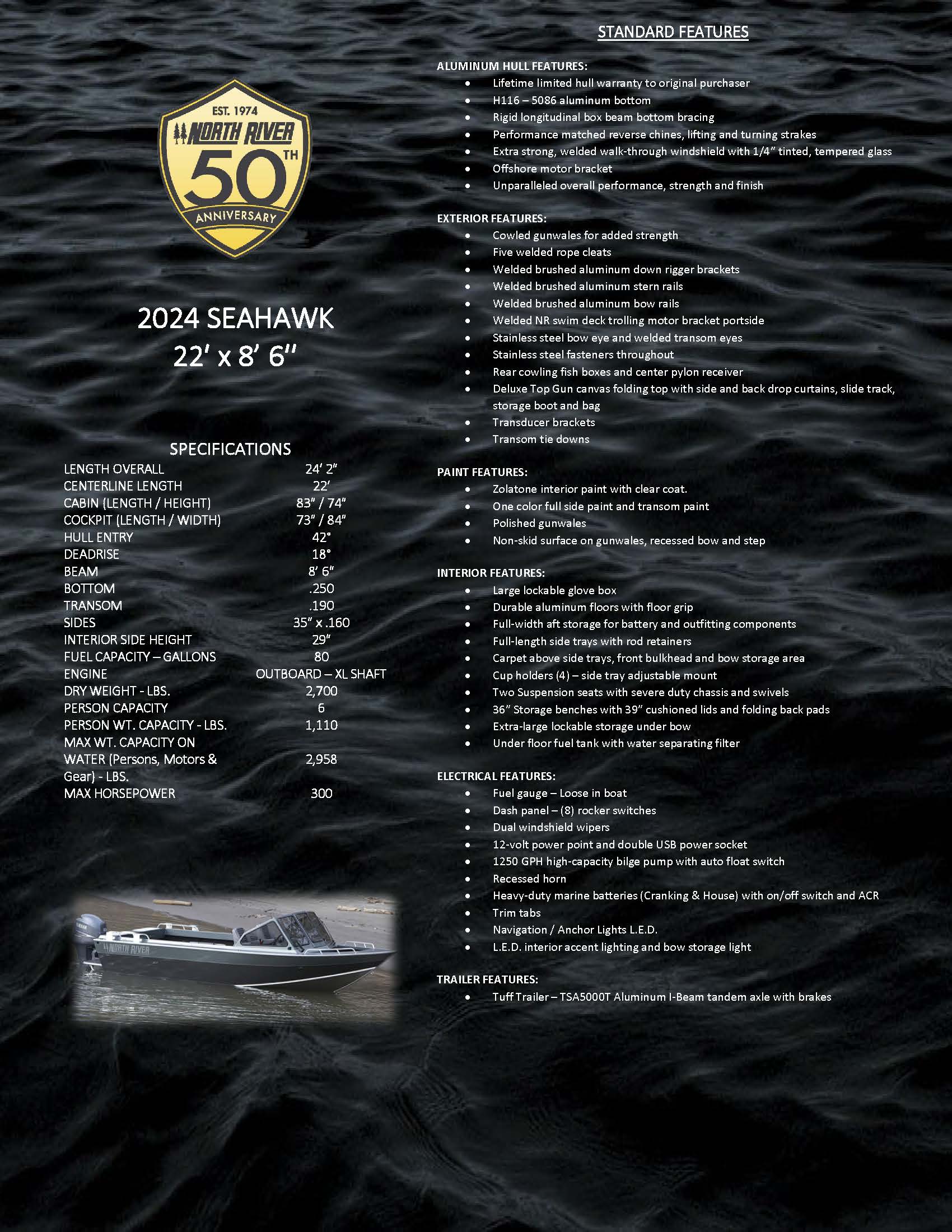

SEAHAWK OUTBOARD 22′
See drawing below for reference
LENGTH OVERALL (A): | 24′ 2″ |
CENTERLINE LENGTH (B): | 22′ |
CABIN (LENGTH C / HEIGHT): | 83″ / 74″ |
COCKPIT (LENGTH D / WIDTH): | 73″ / 84″ |
HULL ENTRY: | 42° |
DEADRISE: | 18° |
BEAM: | 8' 6" |
BOTTOM: | .250 |
TRANSOM: | 0.190 |
SIDES: | 35″ x .160 |
INTERIOR SIDE HEIGHT: | 29″ |
FUEL CAPACITY: | 80 gallons |
ENGINE: | Outboard – XL Shaft |
DRY WEIGHT: | 2,700 lbs. |
PERSON CAPACITY: | 6 |
PERSON WT. CAPACITY: | 1,110 lbs. |
MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 2,958 lbs. |
MAX HORSEPOWER: | 300 hp |

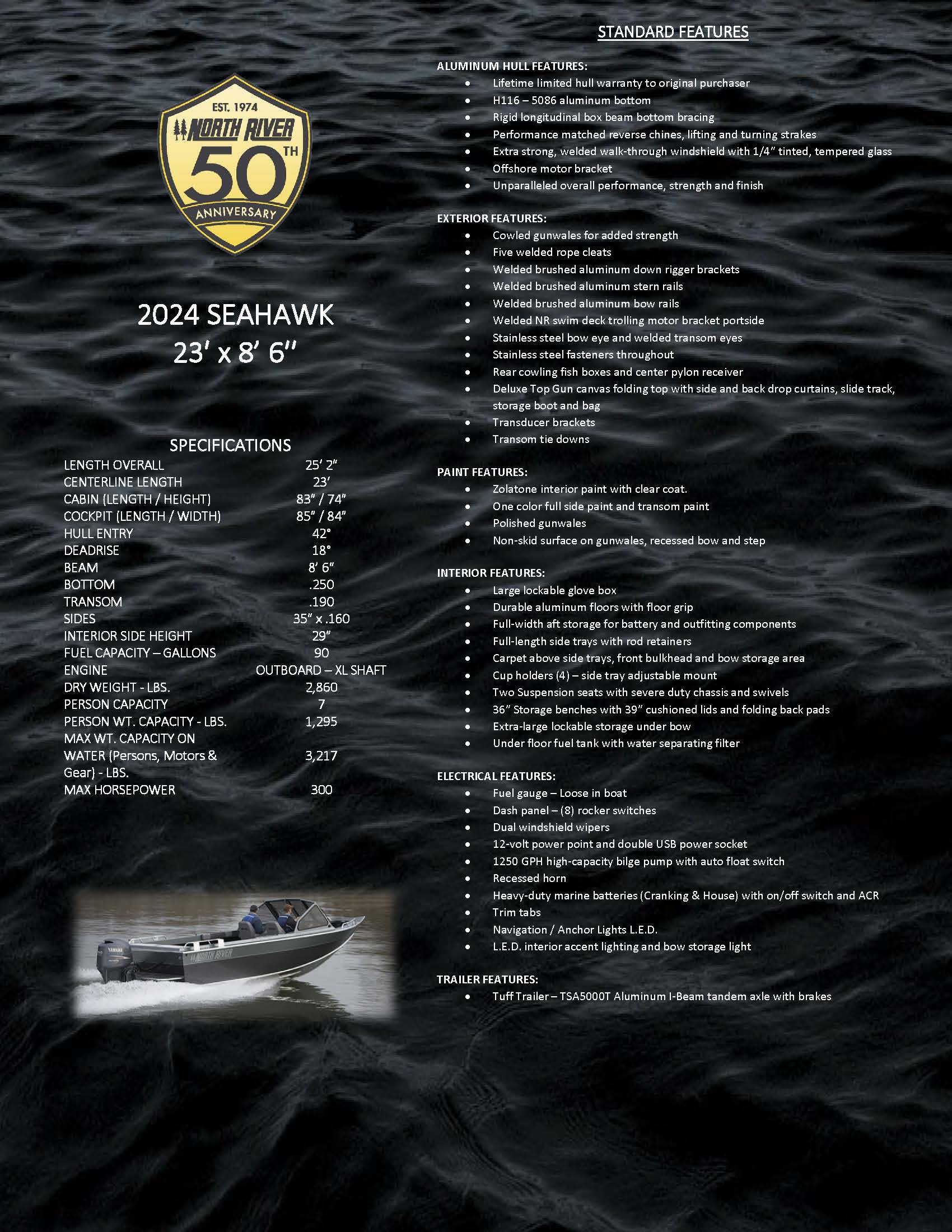

SEAHAWK OUTBOARD 23′
See drawing below for reference
LENGTH OVERALL (A): | 25′ 2″ |
CENTERLINE LENGTH (B): | 23′ |
CABIN (LENGTH C / HEIGHT): | 83″ / 74″ |
COCKPIT (LENGTH D / WIDTH): | 85″ / 84″ |
HULL ENTRY: | 42° |
DEADRISE: | 18° |
BEAM: | 8' 6" |
BOTTOM: | .250 |
TRANSOM: | .190 |
SIDES: | 35″ x .160 |
INTERIOR SIDE HEIGHT: | 29″ |
FUEL CAPACITY: | 90 gallons |
ENGINE: | Outboard – XL Shaft |
DRY WEIGHT: | 2,860 lbs. |
PERSON CAPACITY: | 7 |
PERSON WT. CAPACITY: | 1,295 lbs. |
MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 3,217 lbs. |
MAX HORSEPOWER: | 300 hp |

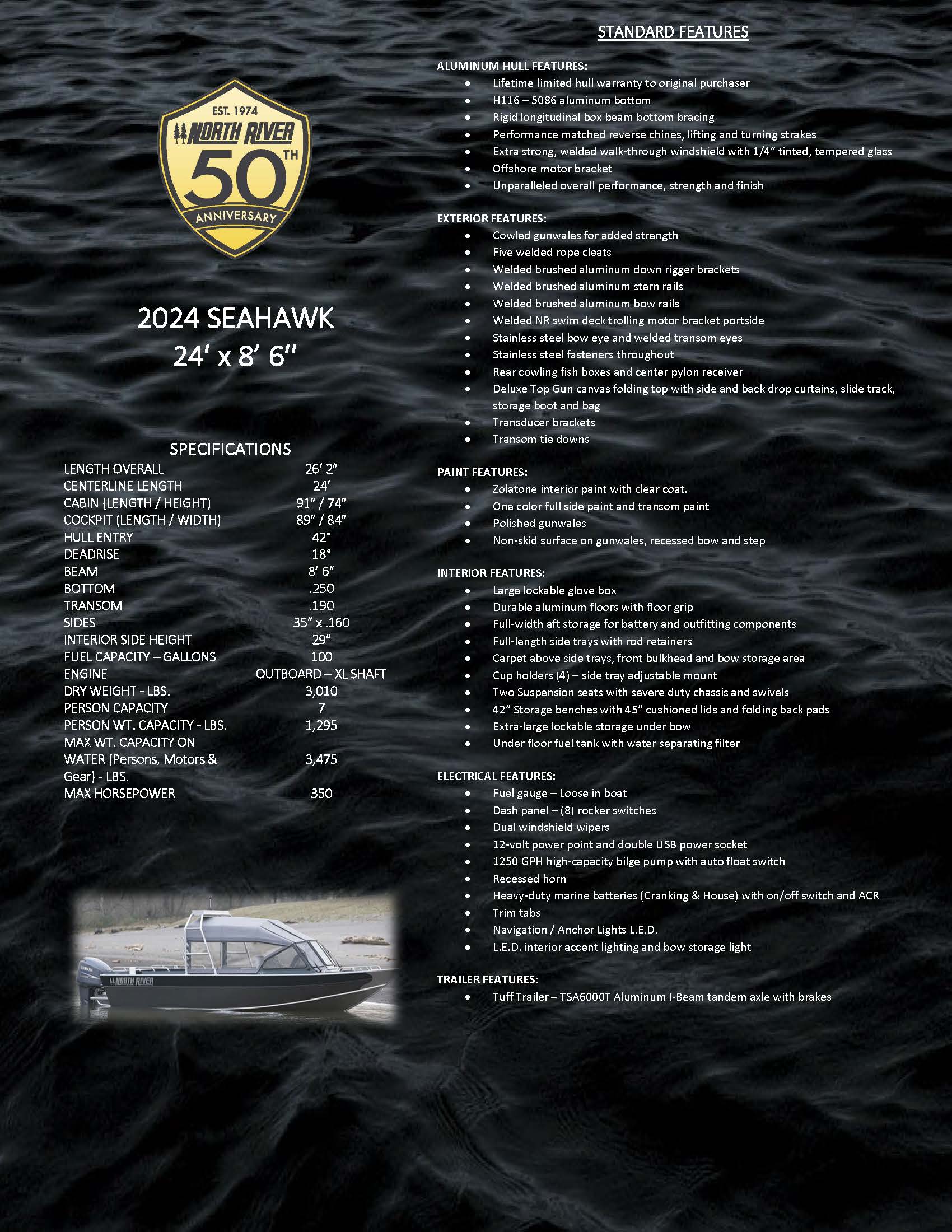

SEAHAWK OUTBOARD 24′
See drawing below for reference
LENGTH OVERALL (A): | 26′ 2″ |
CENTERLINE LENGTH (B): | 24′ |
CABIN (LENGTH C / HEIGHT): | 91″ / 74″ |
COCKPIT (LENGTH D / WIDTH): | 89″ / 84″ |
HULL ENTRY: | 42° |
DEADRISE: | 18° |
BEAM: | 8' 6" |
BOTTOM: | .250 |
TRANSOM: | .190 |
SIDES: | 35″ x .160 |
INTERIOR SIDE HEIGHT: | 29″ |
FUEL CAPACITY: | 100 gallons |
ENGINE: | Outboard – XL Shaft |
DRY WEIGHT: | 3,010 lbs. |
PERSON CAPACITY: | 7 |
PERSON WT. CAPACITY: | 1,295 lbs. |
MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 3,475 lbs. |
MAX HORSEPOWER: | 350 hp |

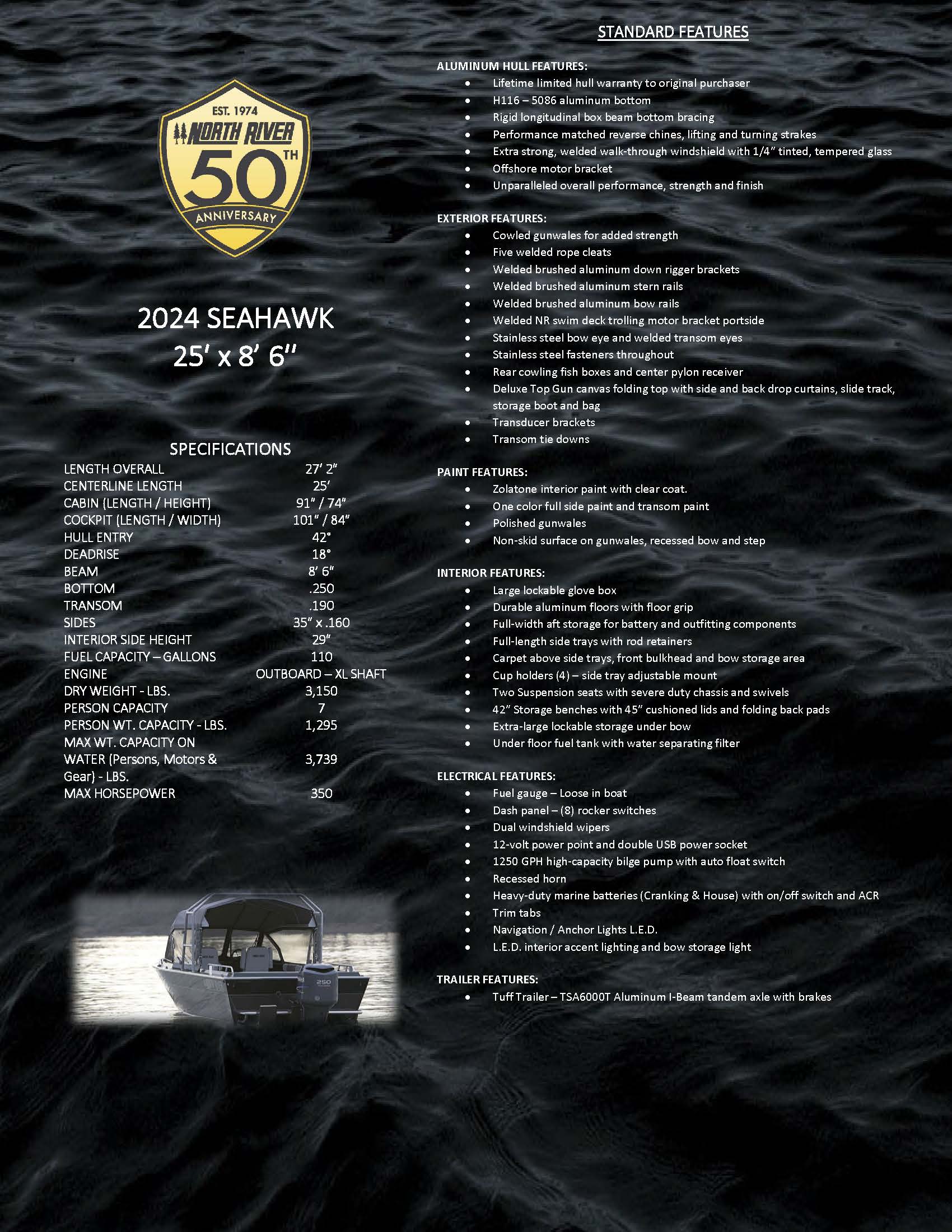

SEAHAWK OUTBOARD 25′
See drawing below for reference
LENGTH OVERALL (A): | 27′ 2″ |
CENTERLINE LENGTH (B): | 25′ |
CABIN (LENGTH C / HEIGHT): | 91″ / 74″ |
COCKPIT (LENGTH D / WIDTH): | 101″ / 84″ |
HULL ENTRY: | 42° |
DEADRISE: | 18° |
BEAM: | 8' 6" |
BOTTOM: | .250 |
TRANSOM: | .190 |
SIDES: | 35″ x .160 |
INTERIOR SIDE HEIGHT: | 29″ |
FUEL CAPACITY: | 110 gallons |
ENGINE: | Outboard – XL Shaft |
DRY WEIGHT: | 3,150 lbs. |
PERSON CAPACITY: | 7 |
PERSON WT. CAPACITY: | 1,295 lbs. |
MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 3,739 lbs. |
MAX HORSEPOWER: | 350 hp |
