SEAHAWK INBOARD
The versatile Seahawk Inboard jet is fine-tuned for fishing but perfectly capable of providing your family spectacular days of recreation on the water. Fishing purists have long championed the extremely well-built Seahawk as the most comfortable, smooth riding, spacious and stable fishing platform in its class.
As a builder of world-class jet boats for over 40 years, it was inevitable – we gave the extremely fishable Seahawk an inboard jet option that runs less than 10” on plane, yet still provides the comfortable ride the Seahawk is famous for.
LIFE IS BETTER IN A NORTH RIVER!

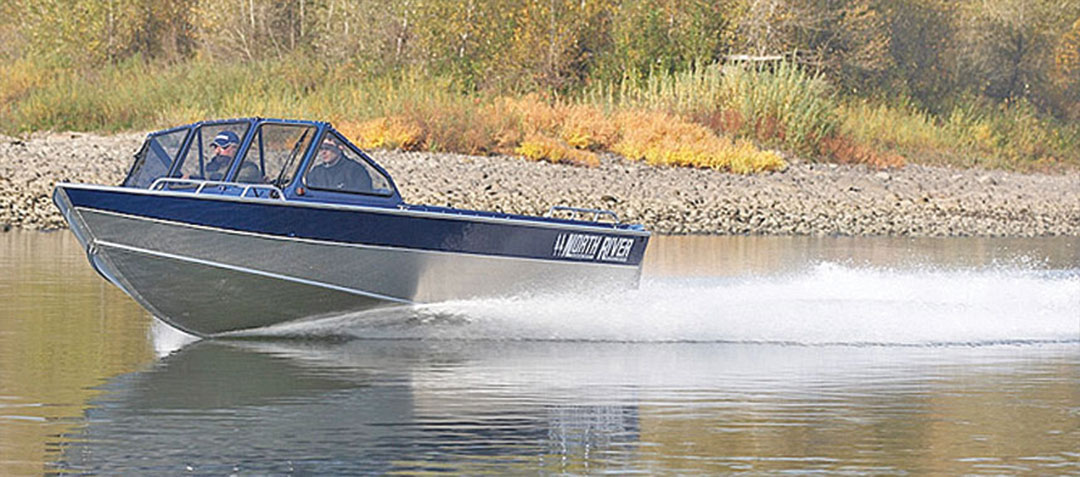

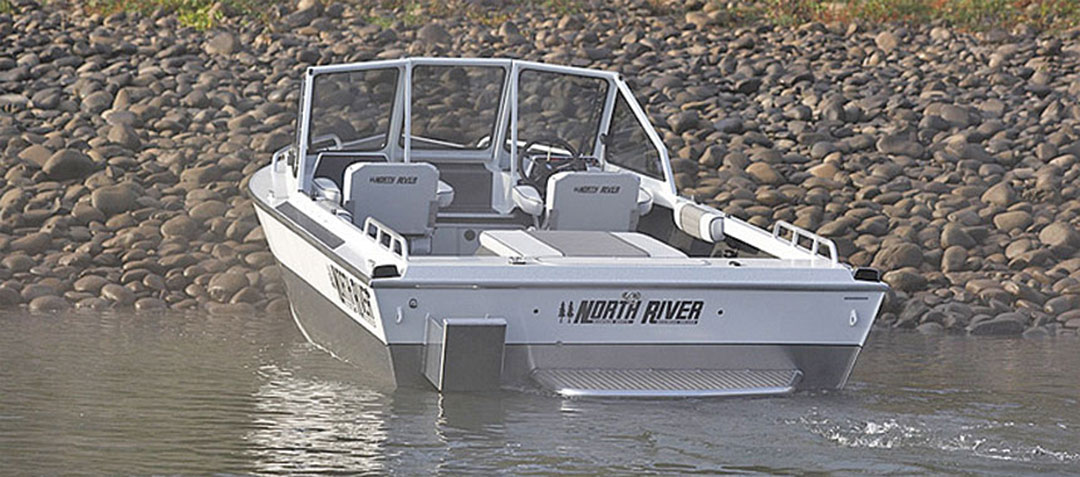

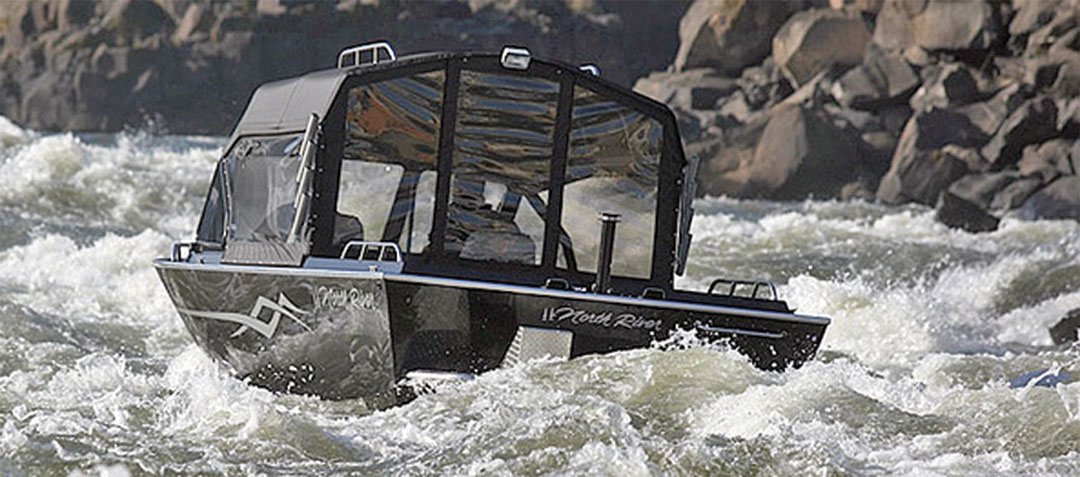

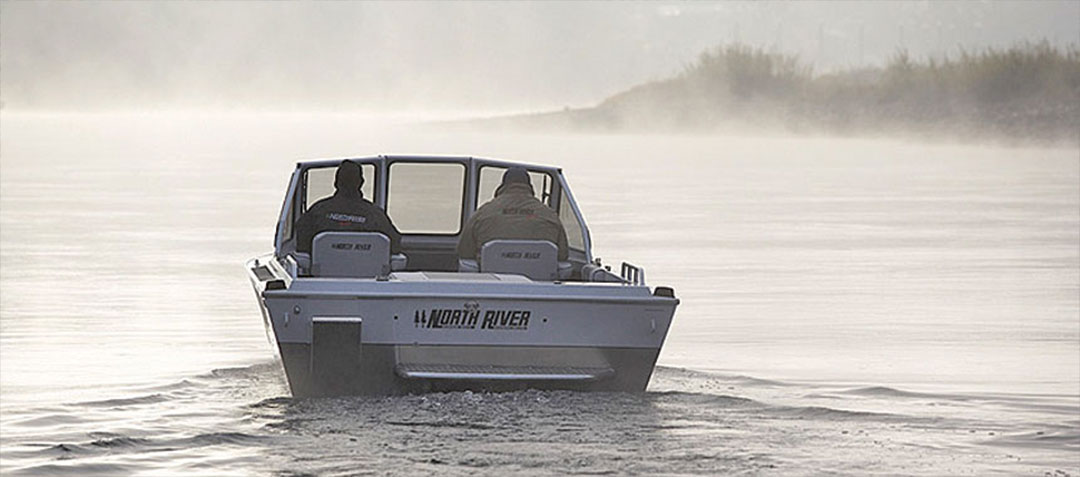

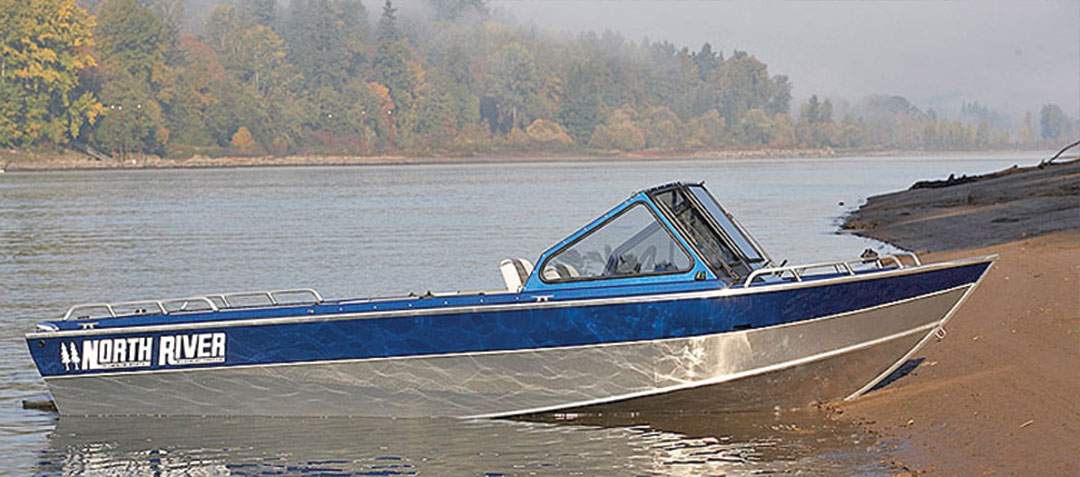

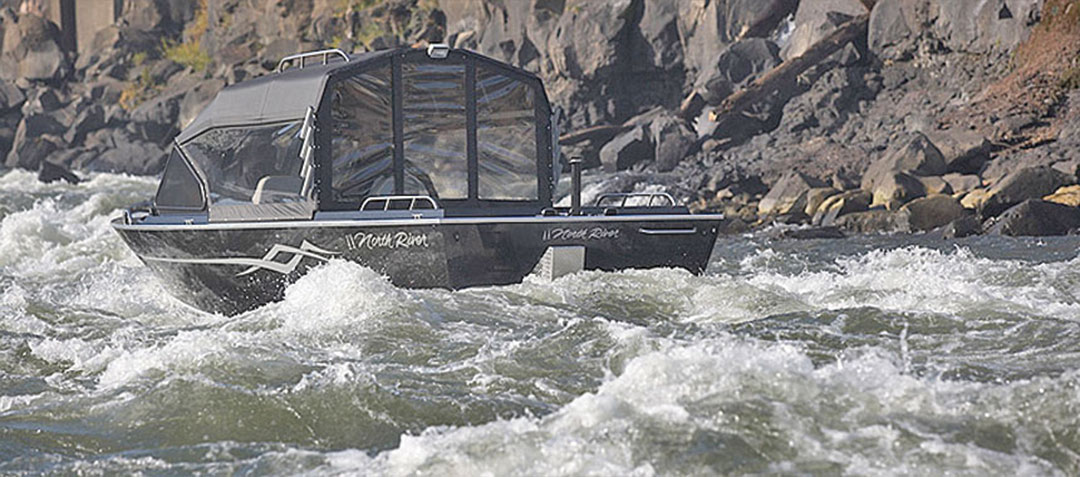

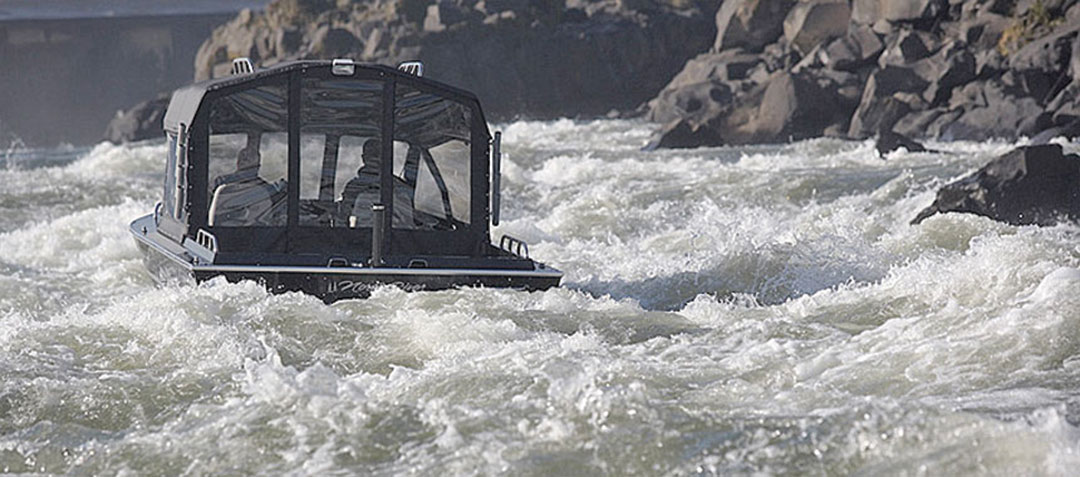

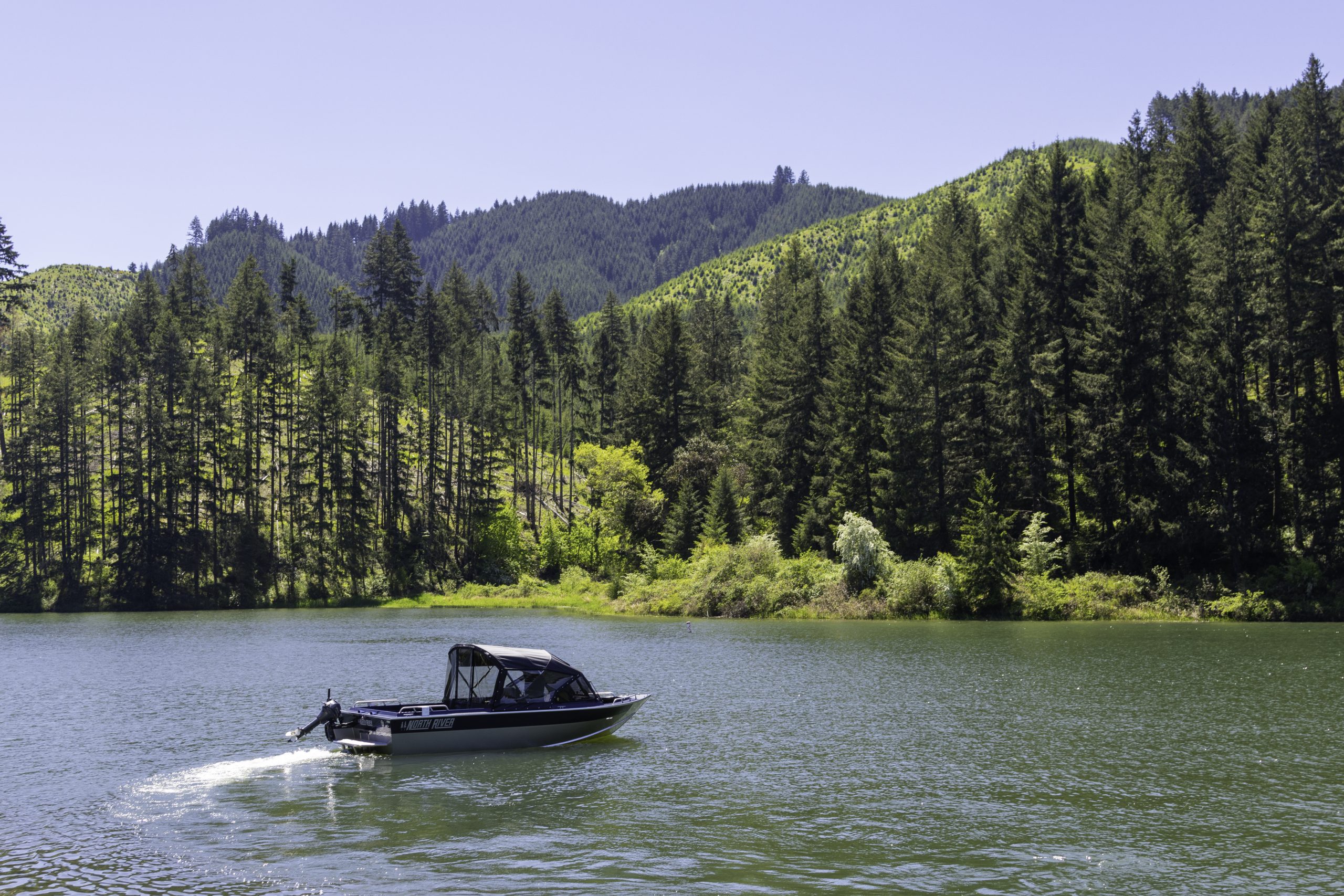

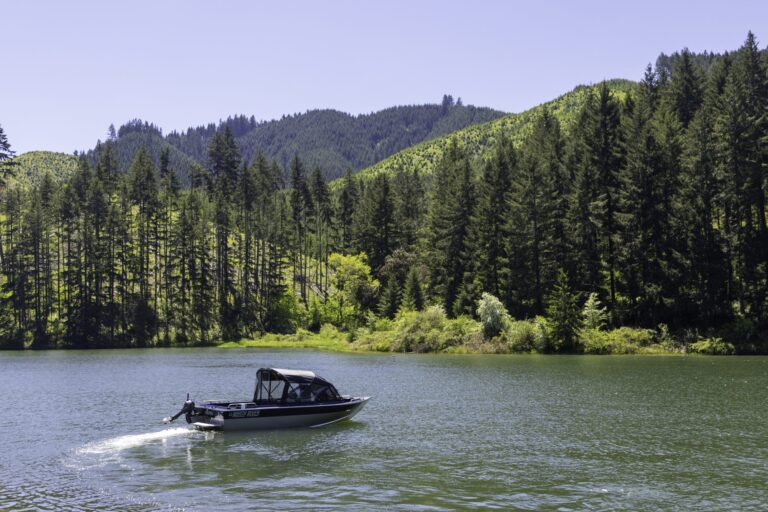

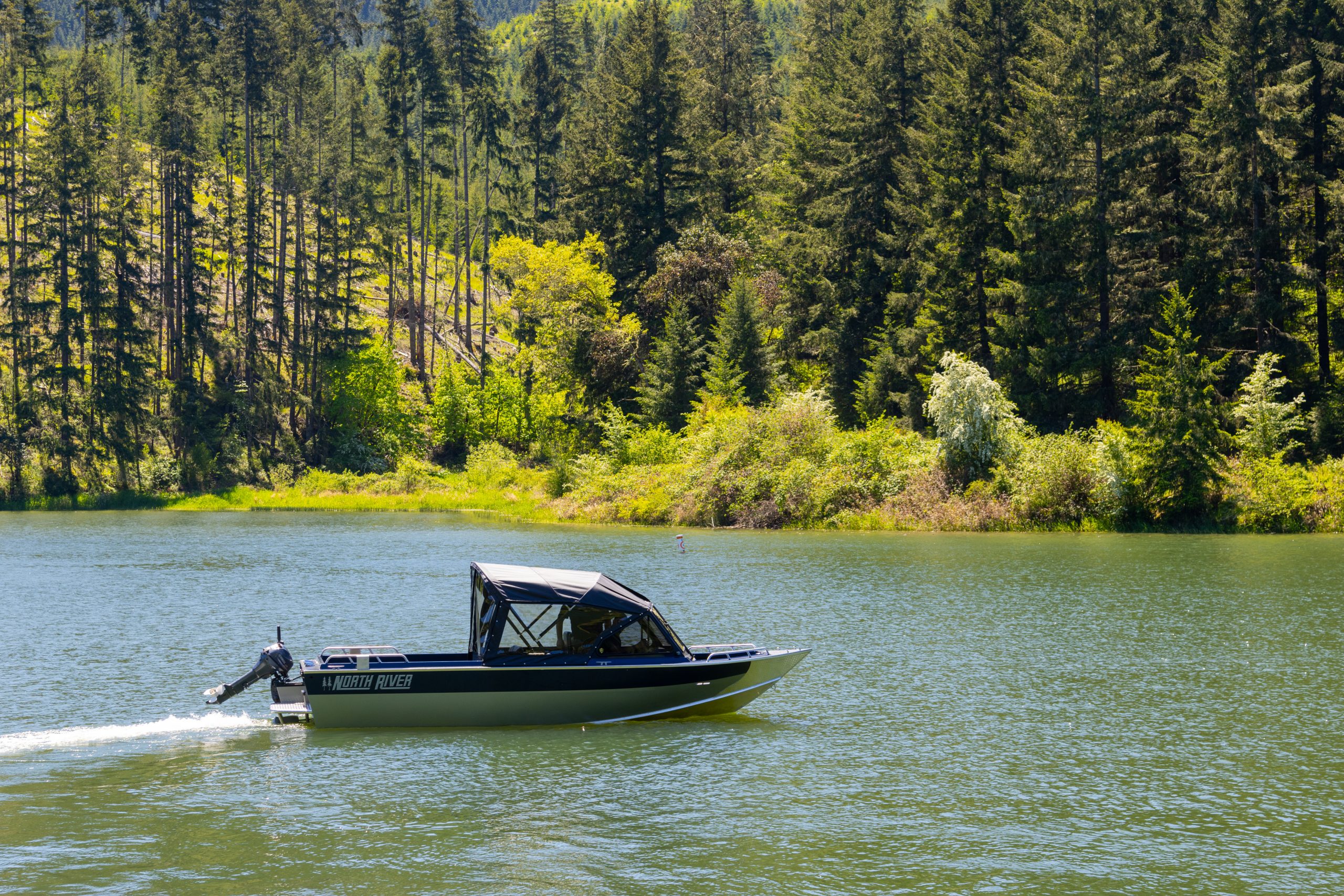

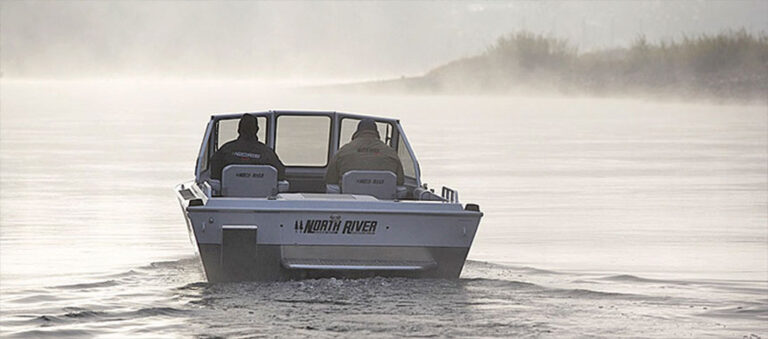

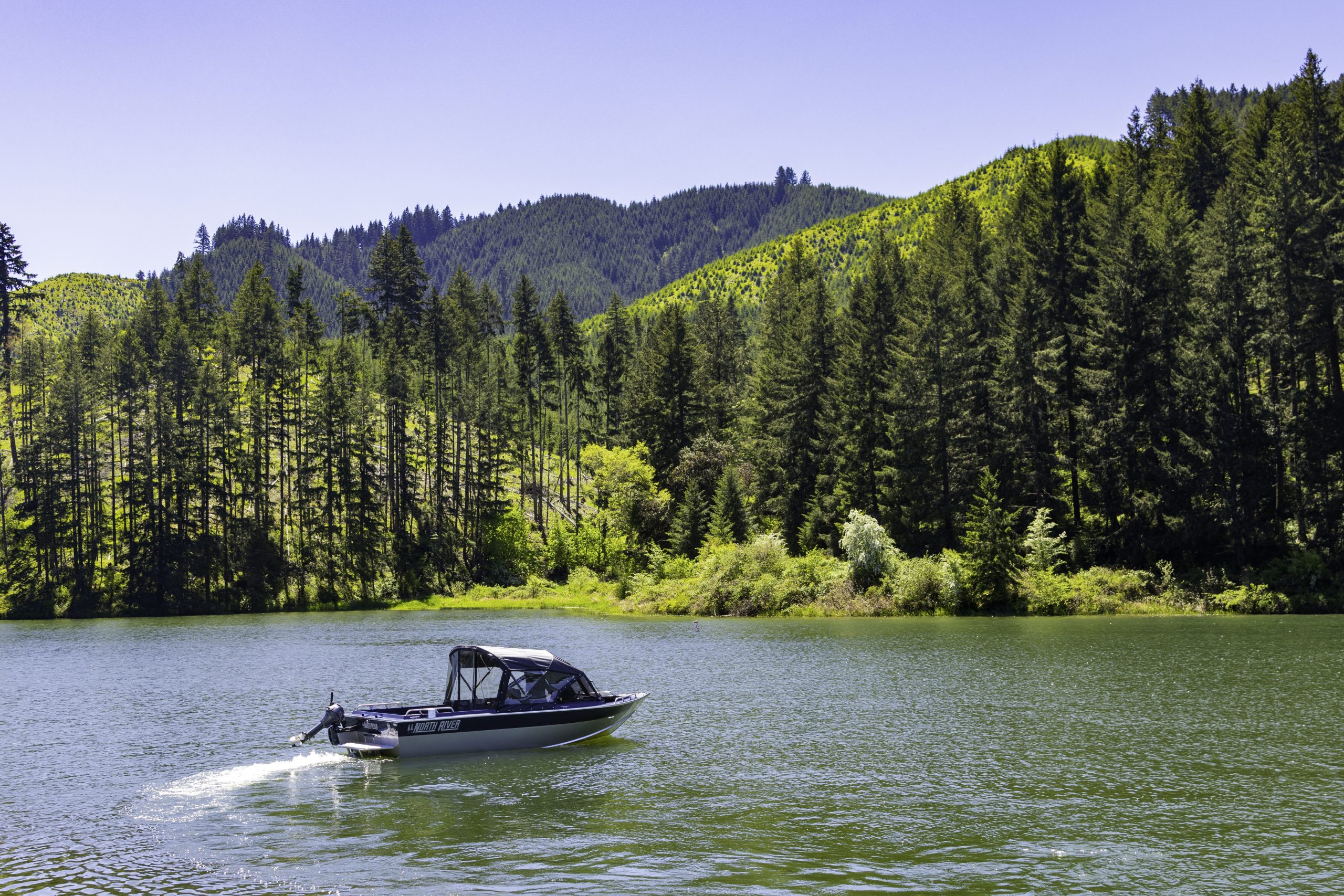

SEAHAWK INBOARD JET GALLERY

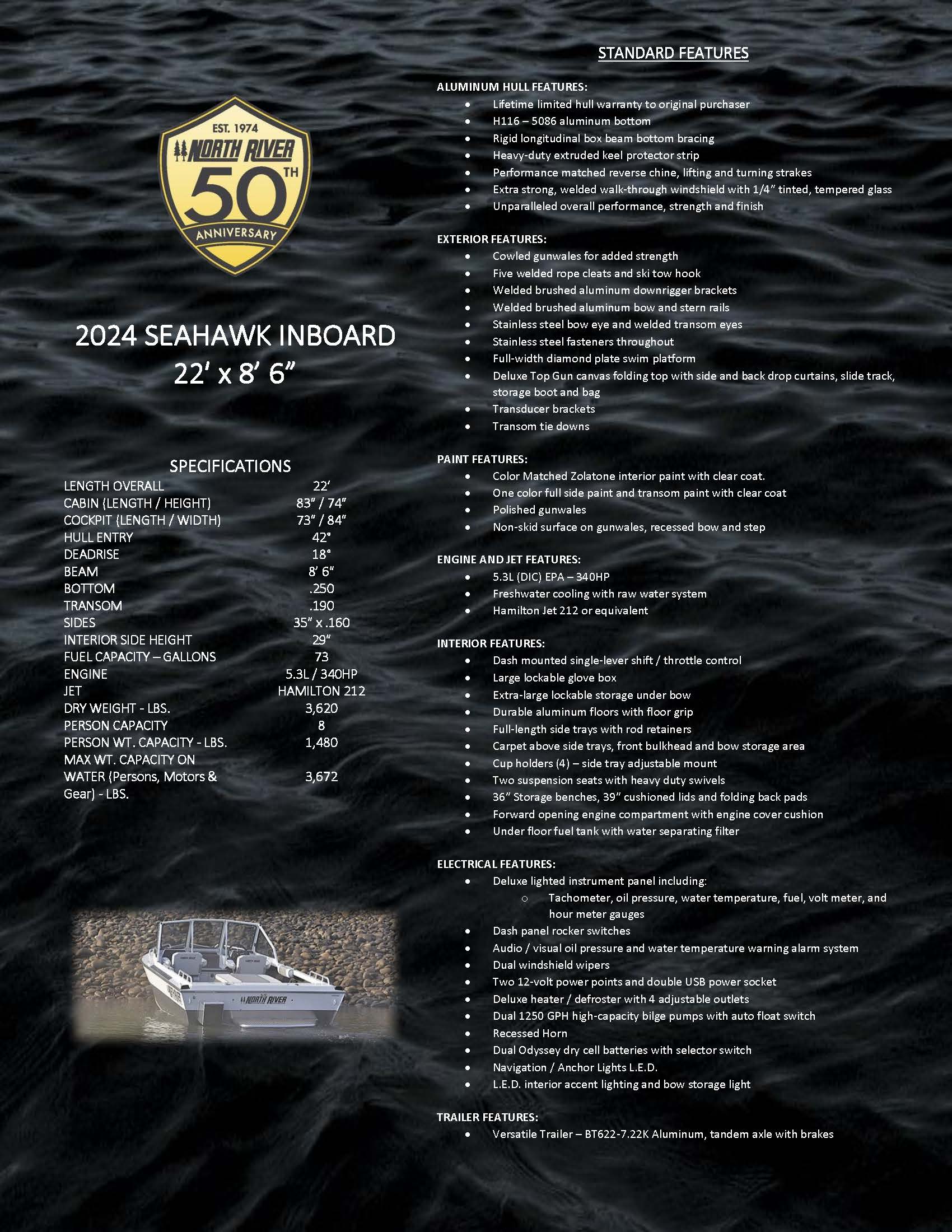

STANDARD FEATURES
Note: Boats in gallery photos may include optional features not included in standard base pricing.
ALUMINUM HULL FEATURES:
• Lifetime limited hull warranty to original purchaser
• H116 – 5086 aluminum bottom
• Rigid longitudinal box beam bottom bracing
• Heavy-duty extruded keel protector strip
• Performance matched reverse chine, lifting and turning strakes
• Extra strong, welded walk-through windshield with 1/4″ tinted, tempered glass
• Unparalleled overall performance, strength and finish
EXTERIOR FEATURES:
• Cowled gunwales for added strength
• Five welded rope cleats and ski tow hook
• Welded brushed aluminum downrigger brackets
• Welded brushed aluminum bow and stern rails
• Stainless steel bow eye and welded transom eyes
• Stainless steel fasteners throughout
• Full-width diamond plate swim platform
• Deluxe Top Gun canvas folding top with side and back drop curtains (Note: 22′ & 23′)
• Welded removable top frame with 3 rod holders and net holder (Note: 24′ & 25′)
• Transducer brackets
• Transom tie downs
PAINT FEATURES:
• Color Matched Zolatone interior paint with clear coat
• One color full side paint and transom paint with clear coat
• Polished gunwales
• Non-skid surface on gunwales, recessed bow and step
ENGINE AND JET FEATURES:
• C350 5.3L – 340HP (Note: 22′ & 23′)
• C364 6.2L – 400HP (Note: 24′ & 25′)
• Freshwater cooling with raw water system,
• Hamilton 212 jet pump with turbo impeller
INTERIOR FEATURES:
• Dash mounted single-lever shift / throttle control
• Large lockable glove box
• Extra-large lockable storage under bow
• Durable aluminum floors with floor grip
• Full-length side trays with rod retainers
• Carpet above side trays, front bulkhead and bow storage area
• Cup holders (4) – side tray adjustable mount
• Two NR2 helm seats on air adjustable pedestals
• Storage benches, cushioned lids and folding back pads
• Forward opening engine compartment with engine cover cushion
• Under floor fuel tank with water separating filter
ELECTRICAL FEATURES:
• Deluxe lighted instrument panel including:
• Tachometer, oil pressure, water temperature, fuel, volt meter, and hour meter gauges
• Dash panel rocker switches
• Audio / visual oil pressure and water temperature warning alarm system
• Dual windshield wipers
• Two 12-volt power points and double USB power socket
• Deluxe heater / defroster with 4 adjustable outlets
• Dual 1250 GPH high-capacity bilge pumps with auto float switch
• Recessed Horn
• Dual Odyssey dry cell batteries with selector switch
• Navigation / Anchor Lights L.E.D.
• L.E.D. interior accent lighting and bow storage light
TRAILER FEATURES:
• Trailer – tandem axle with brakes
SEAHAWK INBOARD JET SPECIFICATIONS
SEAHAWK INBOARD 22′
See drawing below for reference
| LENGTH OVERALL (A): | 22′ |
| CABIN (LENGTH C / HEIGHT): | 83″ / 74″ |
| COCKPIT (LENGTH D / WIDTH): | 73″ / 84″ |
| HULL ENTRY: | 42° |
| DEADRISE: | 18° |
| BEAM: | 8' 6" |
| BOTTOM: | .250 |
| TRANSOM: | .190 |
| SIDES: | 35″ x .160 |
| INTERIOR SIDE HEIGHT: | 29″ |
| FUEL CAPACITY: | 73 gallons |
| ENGINE: | 5.3L / 340HP |
| JET: | Hamilton 212 |
| DRY WEIGHT: | 3,620 lbs. |
| PERSON CAPACITY: | 8 |
| PERSON WT. CAPACITY: | 1,480 lbs. |
| MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 3,672 lbs. |

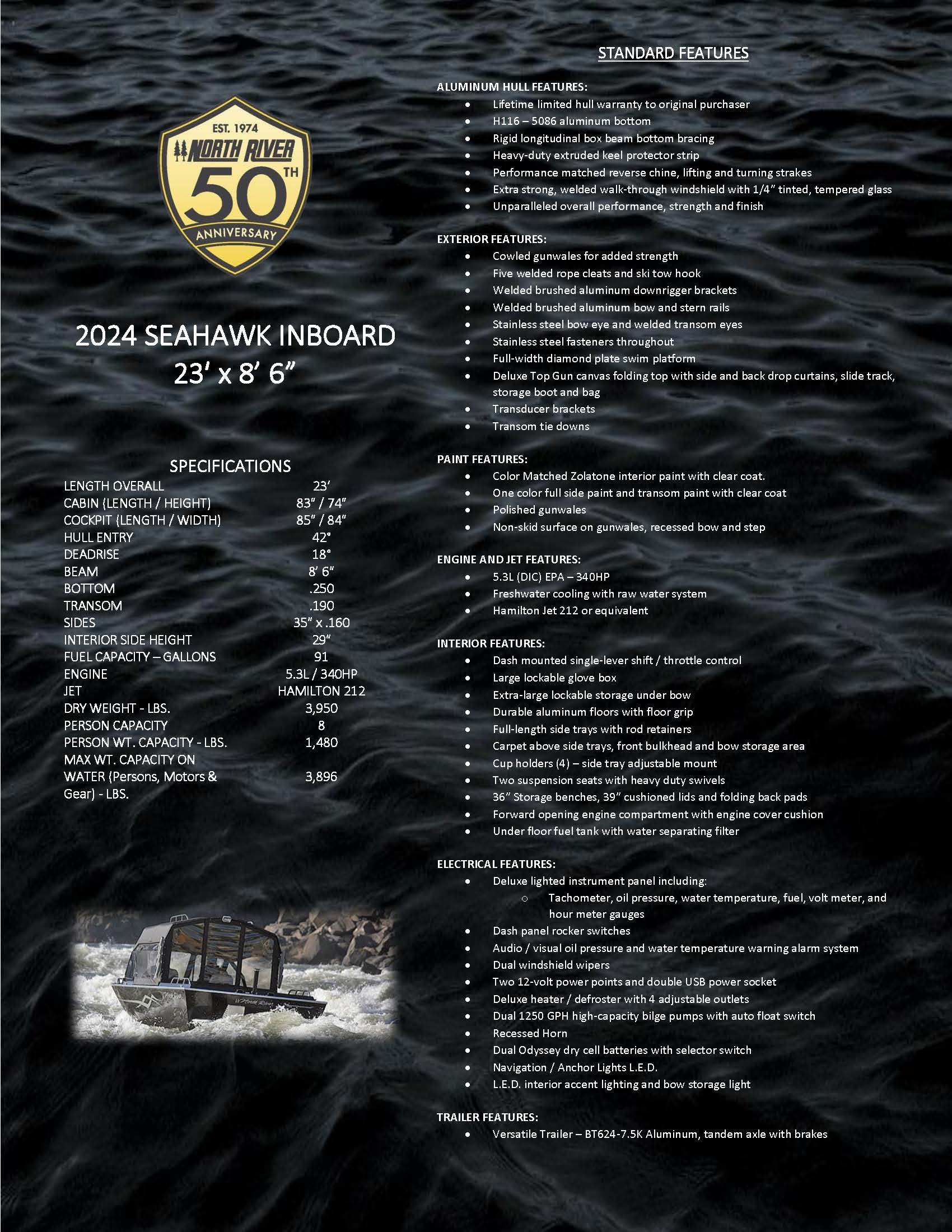

SEAHAWK INBOARD 23′
See drawing below for reference
| LENGTH OVERALL (A): | 23′ |
| CABIN (LENGTH C / HEIGHT): | 83″ / 74″ |
| COCKPIT (LENGTH D / WIDTH): | 85″ / 84″ |
| HULL ENTRY: | 42° |
| DEADRISE: | 18° |
| BEAM: | 8' 6" |
| BOTTOM: | .250 |
| TRANSOM: | .190 |
| SIDES: | 35″ x .160 |
| INTERIOR SIDE HEIGHT: | 29″ |
| FUEL CAPACITY: | 91 gallons |
| ENGINE: | 5.3L / 340HP |
| JET: | Hamilton 212 |
| DRY WEIGHT: | 3,950 lbs. |
| PERSON CAPACITY: | 8 |
| PERSON WT. CAPACITY: | 1,480 lbs. |
| MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 3,896 lbs. |

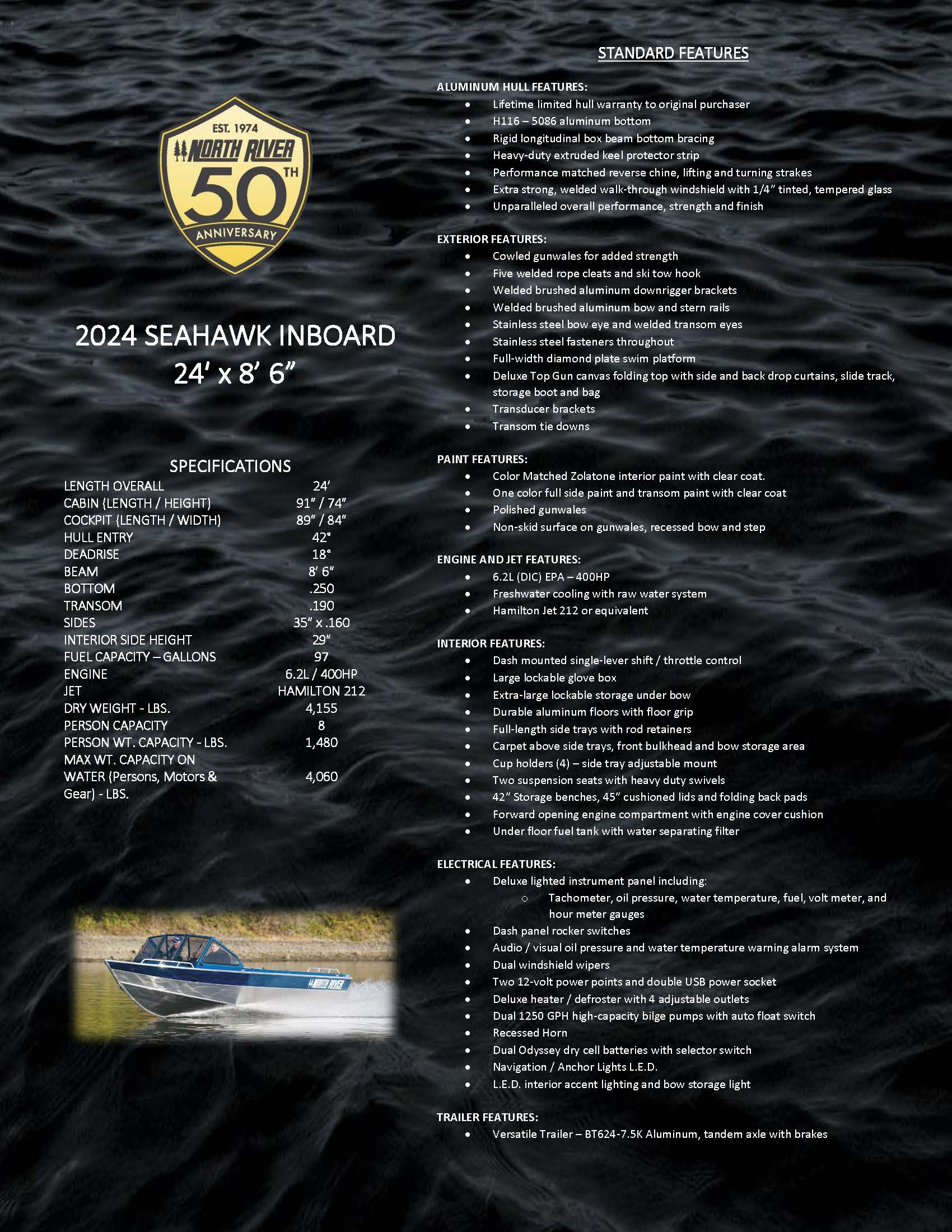

SEAHAWK INBOARD 24′
See drawing below for reference
| LENGTH OVERALL (A): | 24′ |
| CABIN (LENGTH C / HEIGHT): | 91″ / 74″ |
| COCKPIT (LENGTH D / WIDTH): | 89″ / 84″ |
| HULL ENTRY: | 42° |
| DEADRISE: | 18° |
| BEAM: | 8' 6" |
| BOTTOM: | .250 |
| TRANSOM: | .190 |
| SIDES: | 35″ x .160 |
| INTERIOR SIDE HEIGHT: | 29″ |
| FUEL CAPACITY: | 97 gallons |
| ENGINE: | 6.2L / 400 HP |
| JET: | Hamilton 212 |
| DRY WEIGHT: | 4,155 lbs. |
| PERSON CAPACITY: | 8 |
| PERSON WT. CAPACITY: | 1,480 lbs. |
| MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 4,060 lbs. |

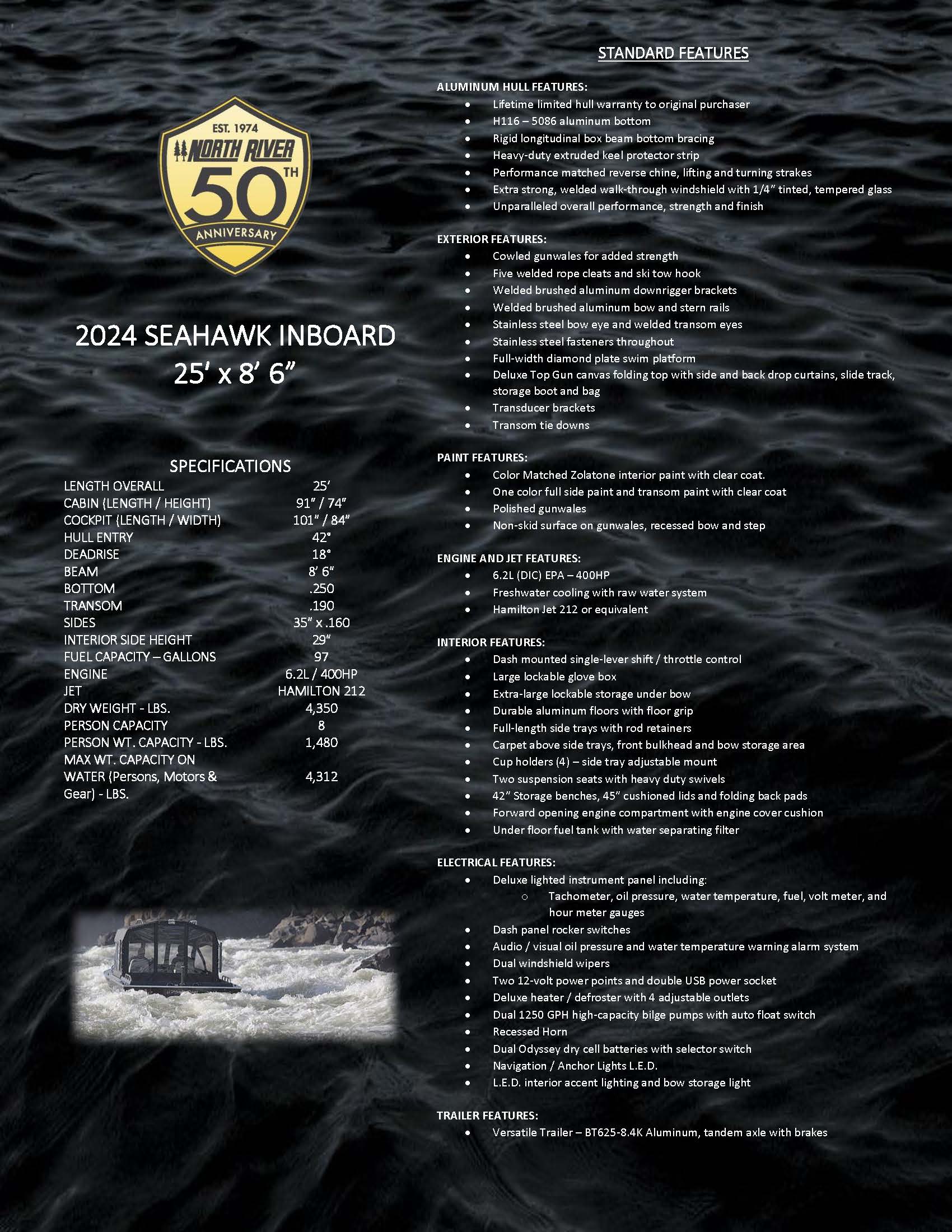

SEAHAWK INBOARD 25′
See drawing below for reference
| LENGTH OVERALL (A): | 25′ |
| CABIN (LENGTH C / HEIGHT): | 91″ / 74″ |
| COCKPIT (LENGTH D / WIDTH): | 101″ / 84″ |
| HULL ENTRY: | 42° |
| DEADRISE: | 18° |
| BEAM: | 8' 6" |
| BOTTOM: | .250 |
| TRANSOM: | .190 |
| SIDES: | 35″ x .160 |
| INTERIOR SIDE HEIGHT: | 29″ |
| FUEL CAPACITY: | 97 gallons |
| ENGINE: | 6.2L / 400 HP |
| JET: | Hamilton 212 |
| DRY WEIGHT: | 4,350 lbs. |
| PERSON CAPACITY: | 8 |
| PERSON WT. CAPACITY: | 1,480 lbs. |
| MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 4,312 lbs. |
