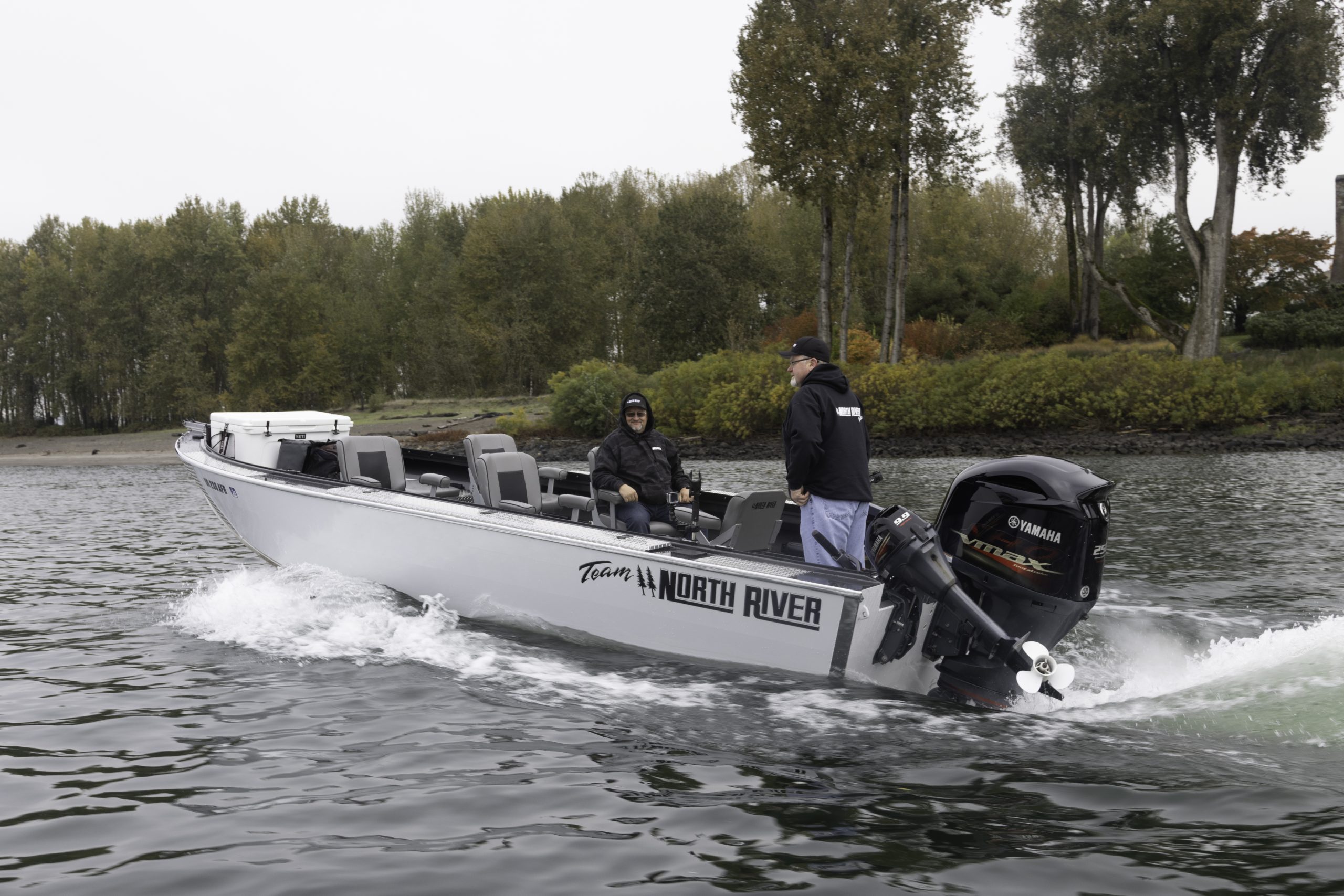

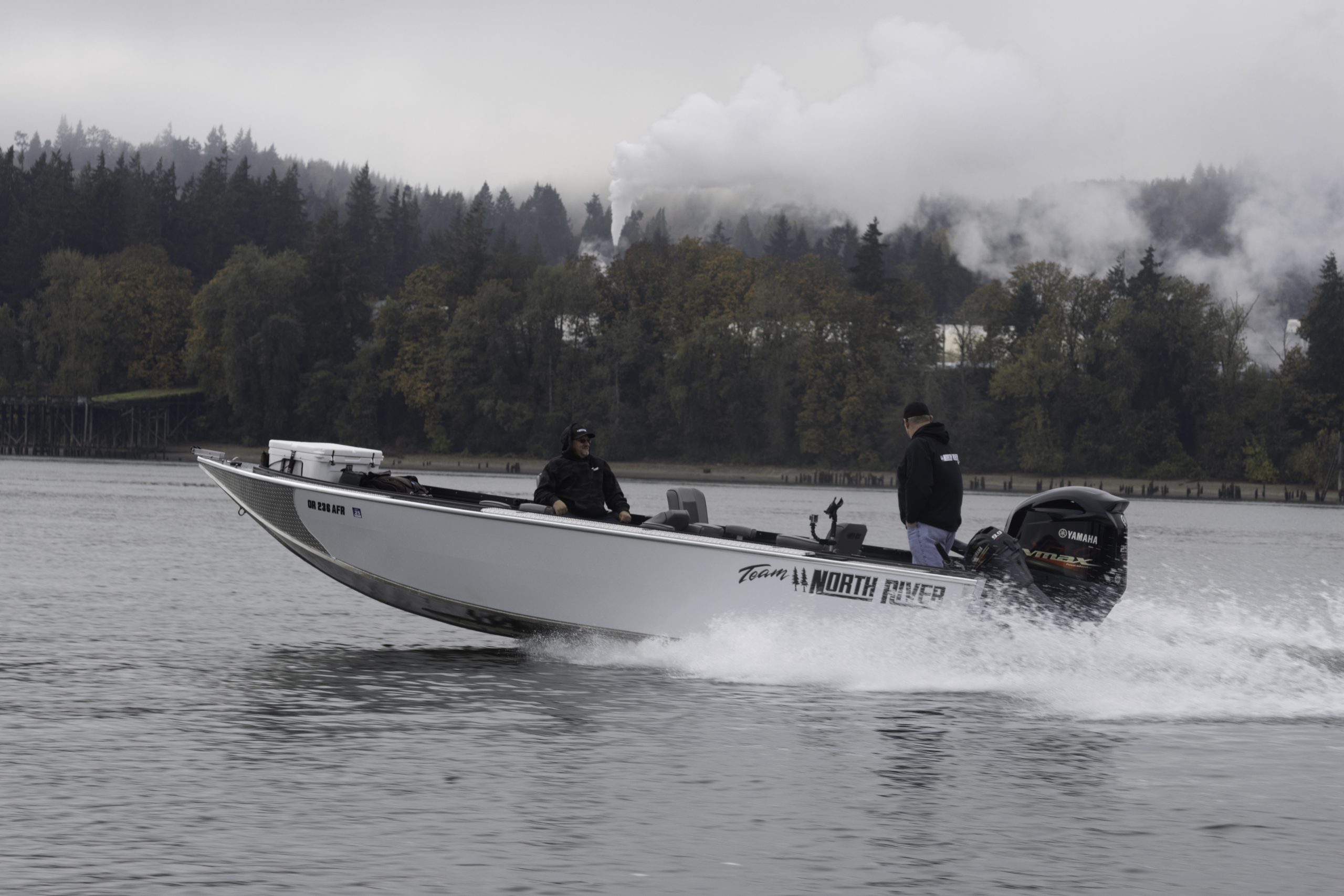

SCOUT
Unfortunately, wherever your desk is, a river guide’s office view is always going to beat yours.

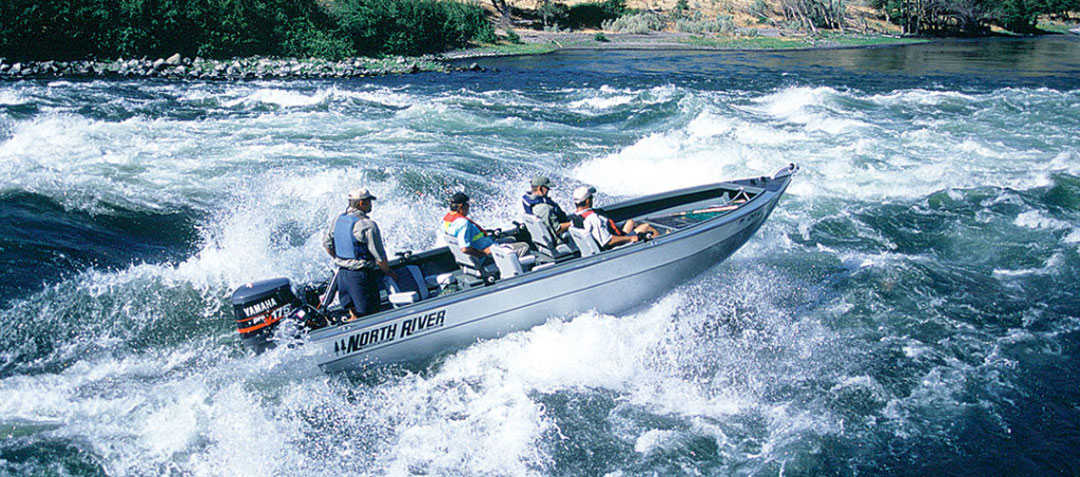

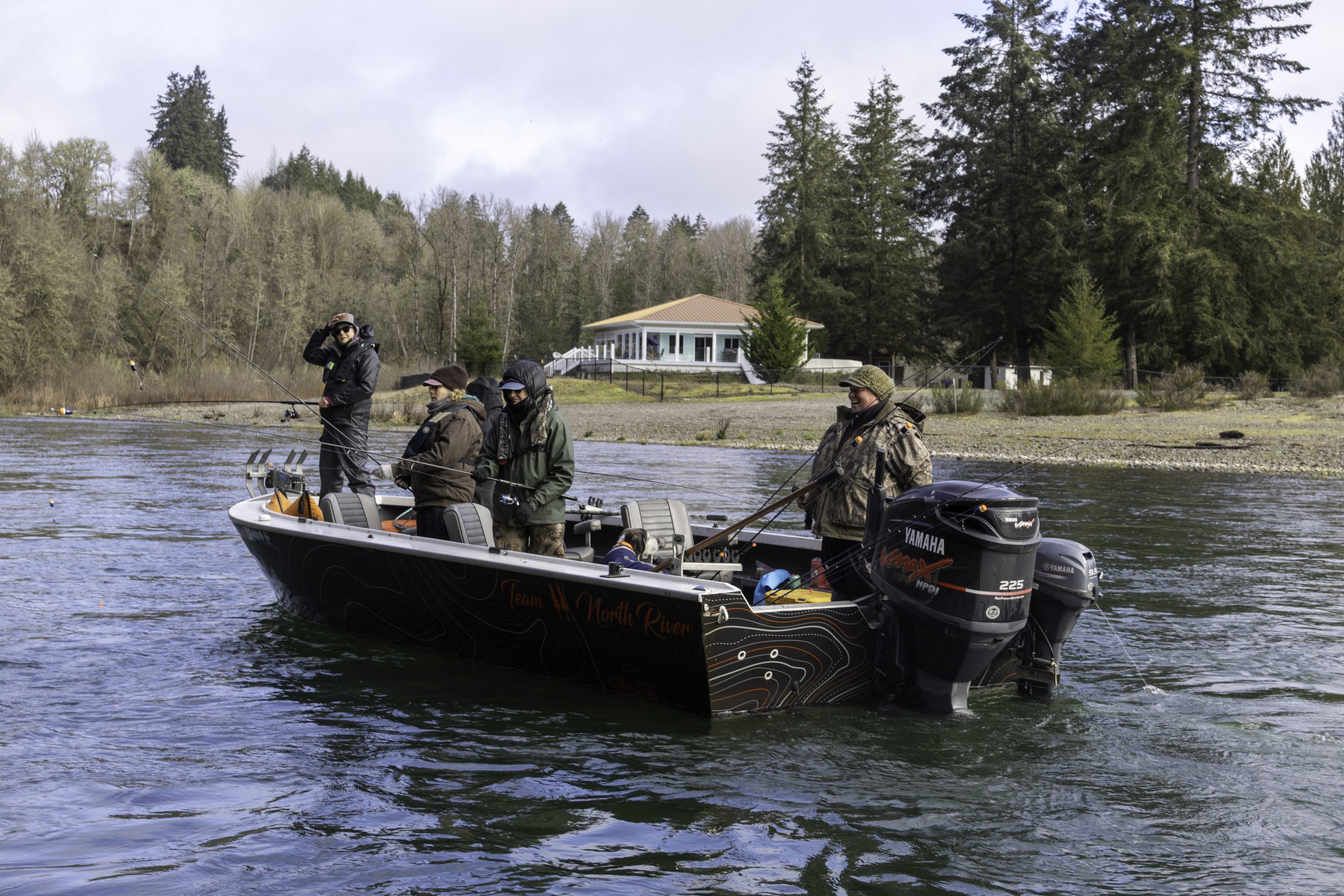

So take a cue from the pros: river guides enjoy open floor space under open skies with the stable, 360 degree fishability of the Scout.
Think your fishing deserves more than a “good” boat? Then arrive in the best open fishing boat on the water, get down to business (and enjoy the view).
SCOUT
STANDARD FEATURES
Note: Boats in gallery photos may include optional features not included in standard base pricing.
ALUMINUM HULL FEATURES:
• Lifetime limited hull warranty to original purchaser
• H116 – 5086 aluminum bottom
• Rigid longitudinal box beam bottom bracing
• Performance chines, lifting and turning strakes
• XL Shaft Prop or L Shaft Jet
• Unparalleled overall performance, strength and finish
EXTERIOR FEATURES:
• Cowled gunwales for added strength
• Stainless steel bow eye and welded transom eyes
• Stainless steel fasteners throughout
• Transom tie downs
PAINT FEATURES:
• Zolatone interior paint with clear coat, one color full side vinyl
• Polished gunwales
• Non-skid surface on bow and step deck
INTERIOR FEATURES:
• 14″ Transom tray with three door transom storage area
• Electronics Box (Portside)
• Five welded rope cleats, (4) under gunwale
• Durable aluminum floors with floor grip
• Full-length side trays with rod retainers
• Carpet above side trays only
• Four North River sport seats (NR4) on 18″ x 20″ aluminum boxes with seat slider brackets. (Note: 20’ Scout – Two NR4 sport seat on boxes with seat slider brackets)
• Step deck with fish box rear and dry storage box forward
• Under floor fuel tank with water separating filter
ELECTRICAL FEATURES:
• Fuel gauge
• Blue Sea 4 switch panel
• 12-volt power point and double USB power socket
• 1250 GPH high-capacity bilge pump
• Heavy-duty marine battery and tray with on/off switch
• Navigation / Anchor Lights L.E.D.
• L.E.D. interior accent lighting
TRAILER FEATURES:
• Trailer – tandem axle with brakes and swing tongue
SCOUT SPECIFICATIONS

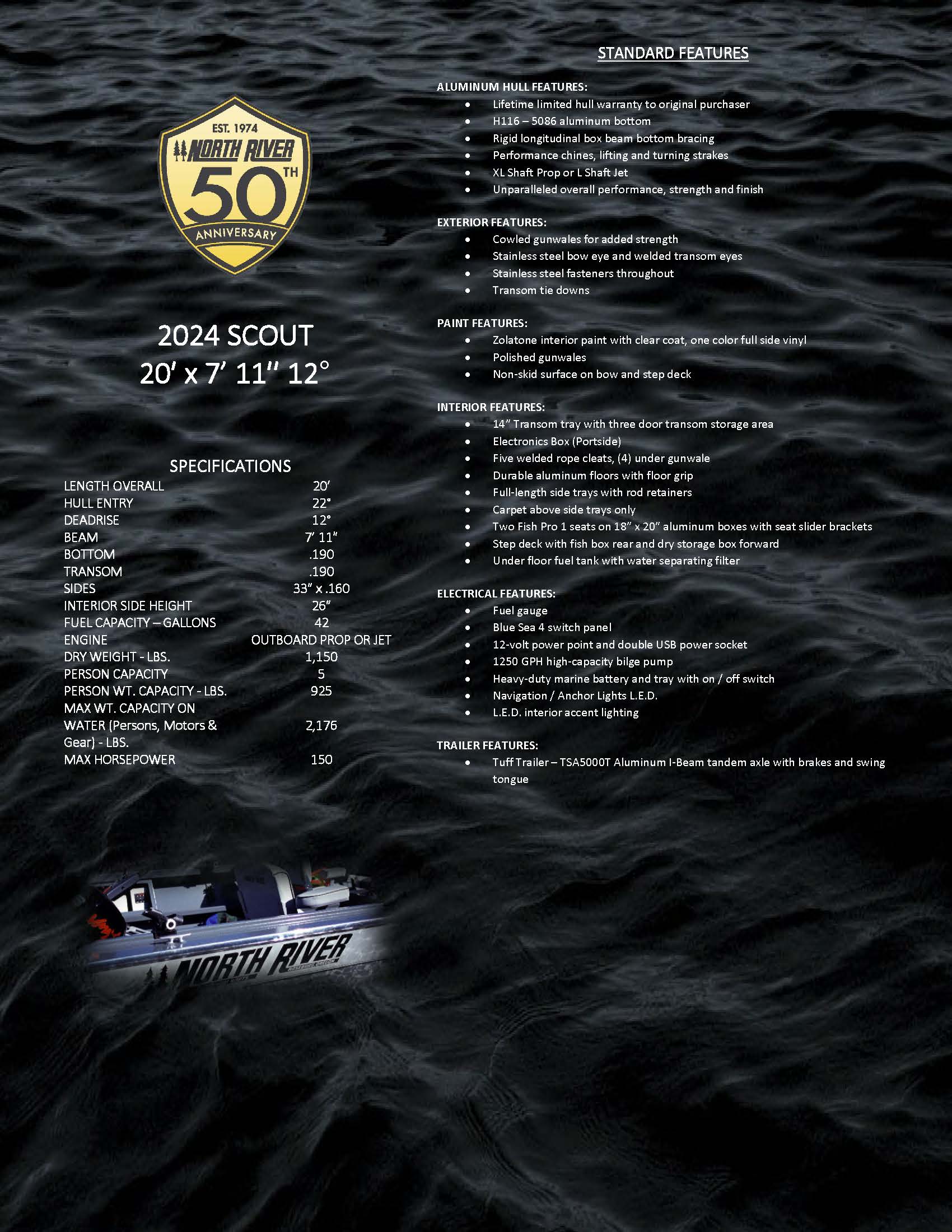

Scout 20′
See drawing below for reference
| LENGTH OVERALL (A): | 20′ |
| HULL ENTRY: | 22° |
| DEADRISE: | 12° |
| BEAM: | 7' 11" |
| BOTTOM: | .190 |
| TRANSOM: | .190 |
| SIDES: | 33″ x .160 |
| INTERIOR SIDE HEIGHT: | 26″ |
| FUEL CAPACITY: | 42 gallons |
| ENGINE: | Outboard Prop or Jet |
| DRY WEIGHT: | 1,150 lbs. |
| PERSON CAPACITY: | 5 |
| PERSON WT. CAPACITY: | 925 lbs. |
| MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 2,176 lbs. |
| MAX HORSEPOWER: | 150 hp |

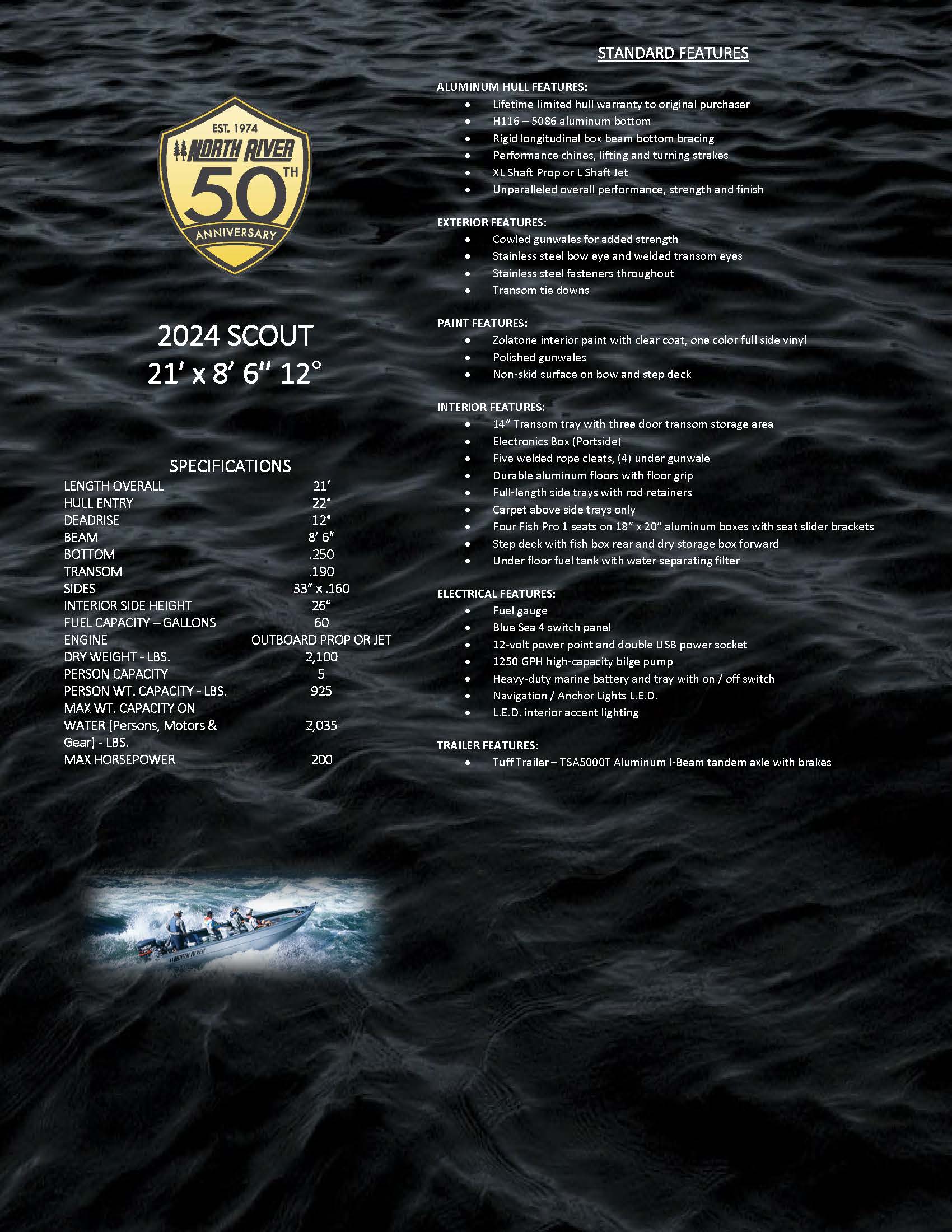

Scout 21′
See drawing below for reference
| LENGTH OVERALL (A): | 21′ |
| HULL ENTRY: | 22° |
| DEADRISE: | 12° |
| BEAM: | 8' 6" |
| BOTTOM: | .250 |
| TRANSOM: | .190 |
| SIDES: | 33″ x .160 |
| INTERIOR SIDE HEIGHT: | 26″ |
| FUEL CAPACITY: | 60 gallons |
| ENGINE: | Outboard Prop or Jet |
| DRY WEIGHT: | 2,100 lbs. |
| PERSON CAPACITY: | 5 |
| PERSON WT. CAPACITY: | 925 lbs. |
| MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 2,035 lbs. |
| MAX HORSEPOWER: | 200 hp |

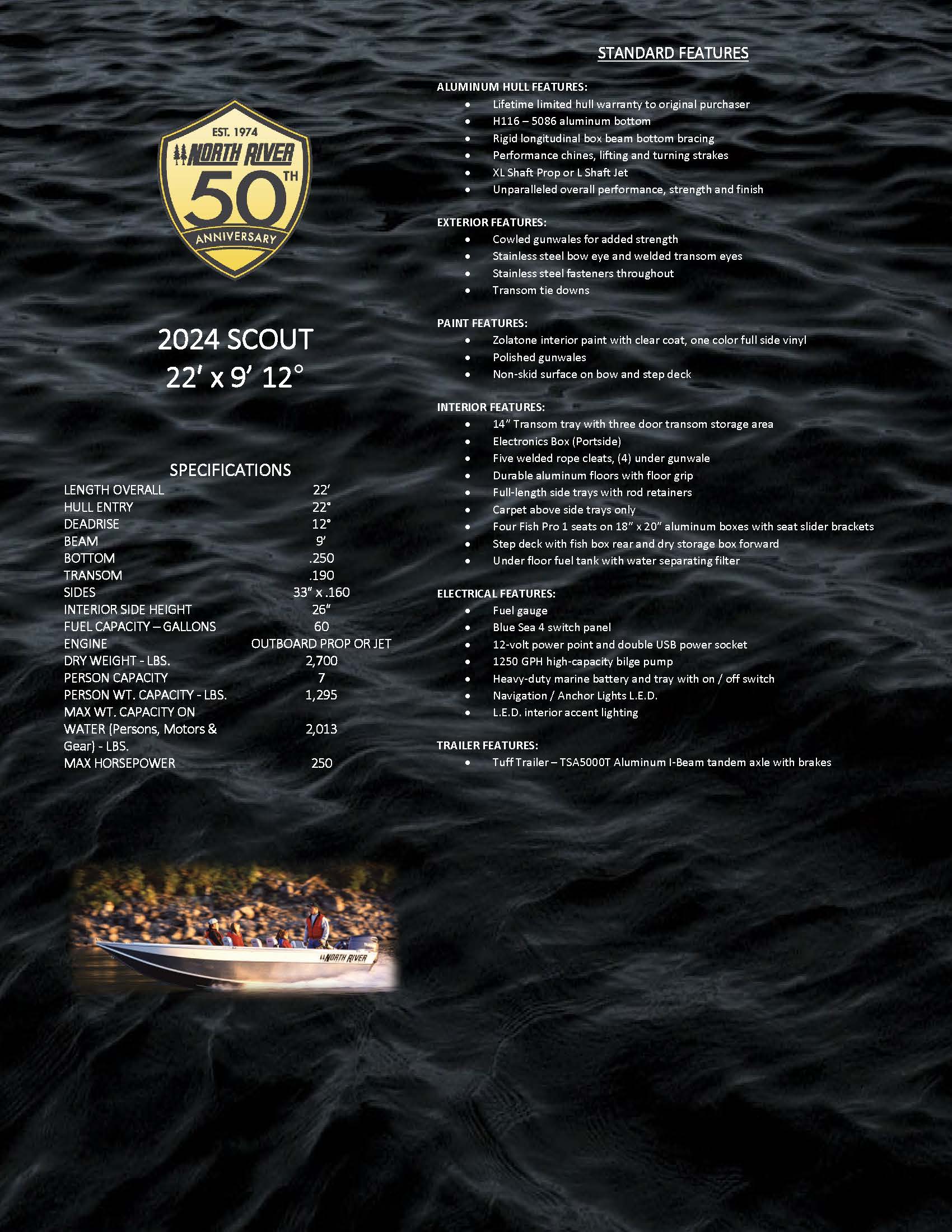

Scout 22′
See drawing below for reference
| LENGTH OVERALL (A): | 22′ |
| HULL ENTRY: | 22° |
| DEADRISE: | 12° |
| BEAM: | 9' |
| BOTTOM: | .250 |
| TRANSOM: | .190 |
| SIDES: | 33″ x .160 |
| INTERIOR SIDE HEIGHT: | 26″ |
| FUEL CAPACITY: | 60 gallons |
| ENGINE: | Outboard Prop or Jet |
| DRY WEIGHT: | 2,700 lbs. |
| PERSON CAPACITY: | 7 |
| PERSON WT. CAPACITY: | 1,295 lbs. |
| MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 2,013 lbs. |
| MAX HORSEPOWER: | 250 hp |

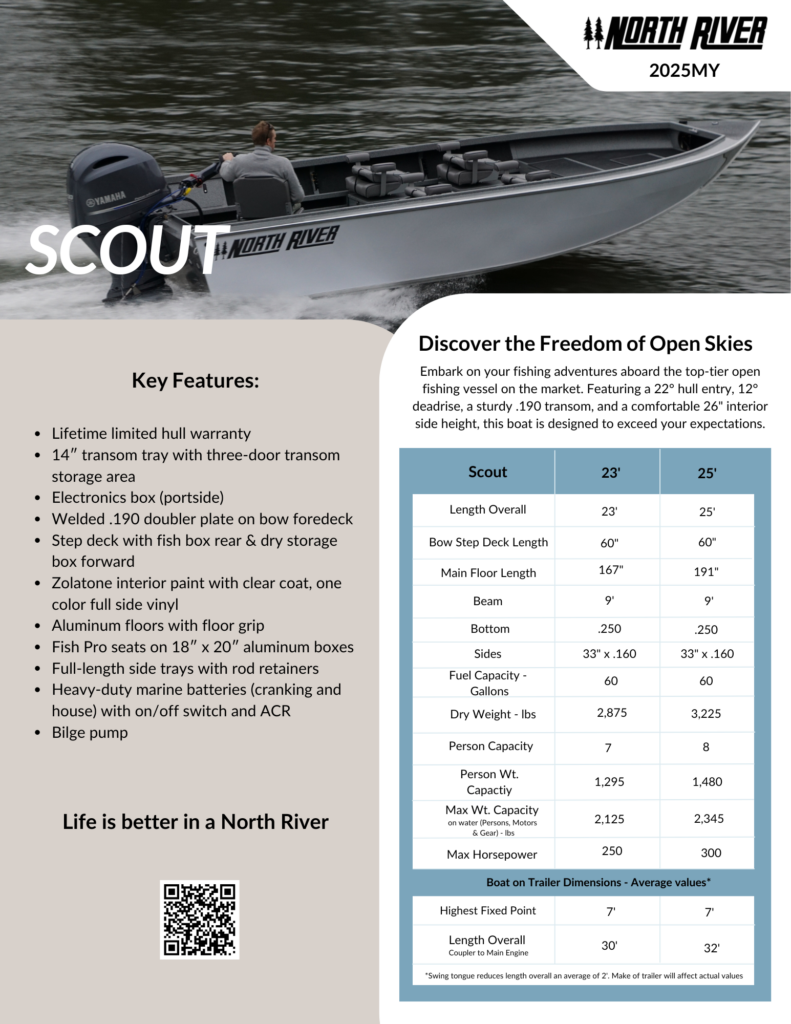

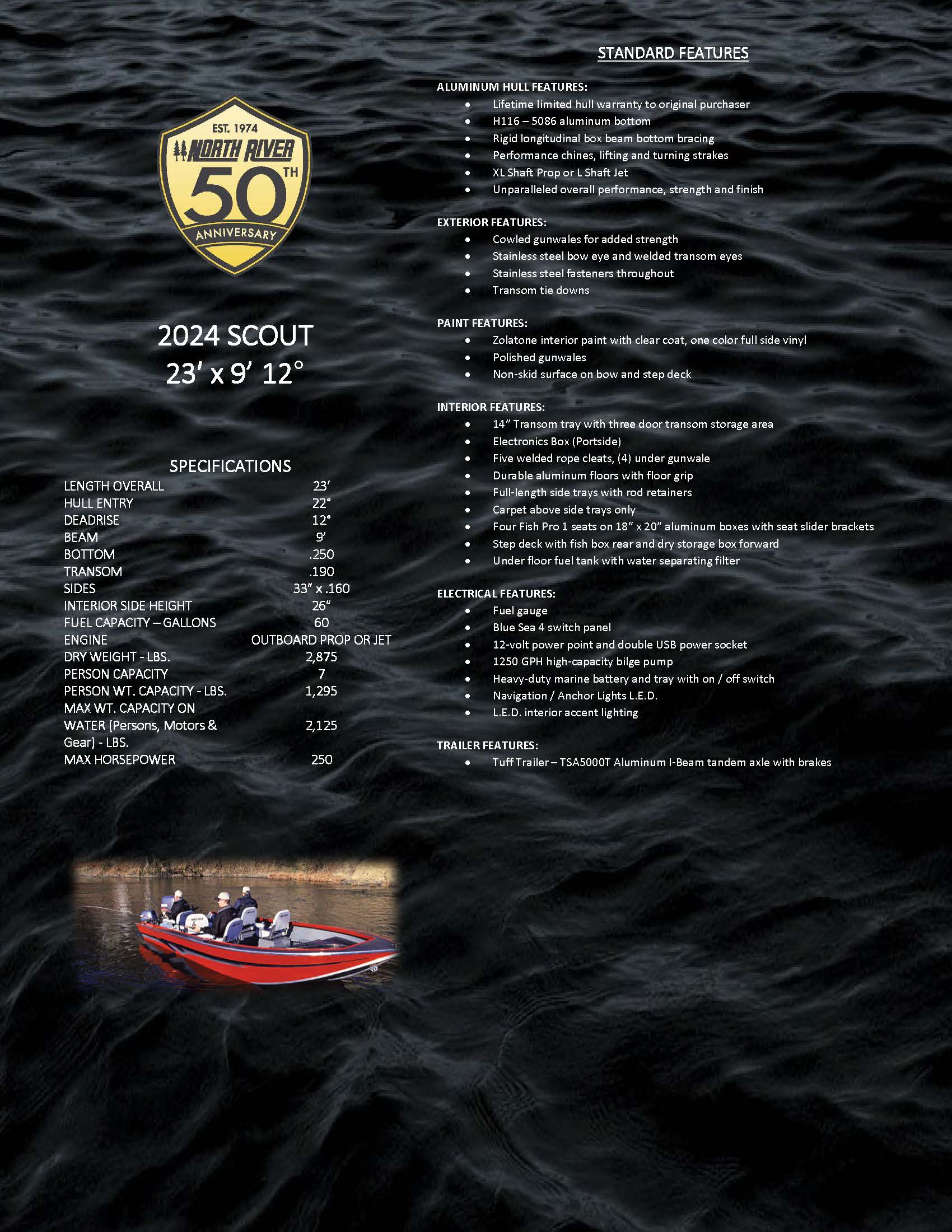

Scout 23′
See drawing below for reference
| LENGTH OVERALL (A): | 23′ |
| HULL ENTRY: | 22° |
| DEADRISE: | 12° |
| BEAM: | 9' |
| BOTTOM: | .250 |
| TRANSOM: | .190 |
| SIDES: | 33″ x .160 |
| INTERIOR SIDE HEIGHT: | 26″ |
| FUEL CAPACITY: | 60 gallons |
| ENGINE: | Outboard Prop or Jet |
| DRY WEIGHT: | 2,875 lbs. |
| PERSON CAPACITY: | 7 |
| PERSON WT. CAPACITY: | 1,295 lbs. |
| MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 2,125 lbs. |
| MAX HORSEPOWER: | 250 hp |

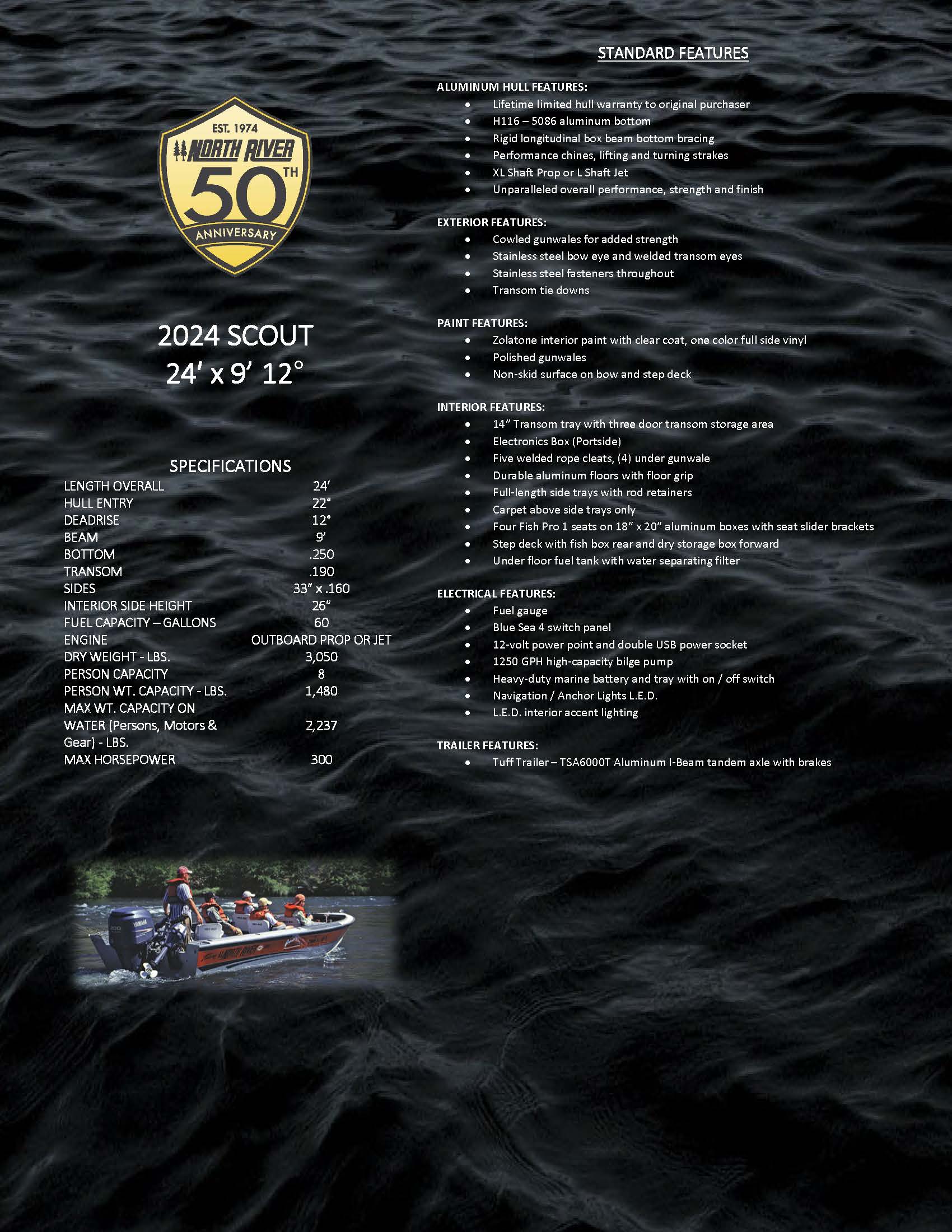

Scout 24′
See drawing below for reference
| LENGTH OVERALL (A): | 24′ |
| HULL ENTRY: | 22° |
| DEADRISE: | 12° |
| BEAM: | 9' |
| BOTTOM: | .250 |
| TRANSOM: | .190 |
| SIDES: | 33″ x .160 |
| INTERIOR SIDE HEIGHT: | 26″ |
| FUEL CAPACITY: | 60 gallons |
| ENGINE: | Outboard Prop or Jet |
| DRY WEIGHT: | 3,050 lbs. |
| PERSON CAPACITY: | 8 |
| PERSON WT. CAPACITY: | 1,480 lbs. |
| MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 2,237 lbs. |
| MAX HORSEPOWER: | 300 hp |

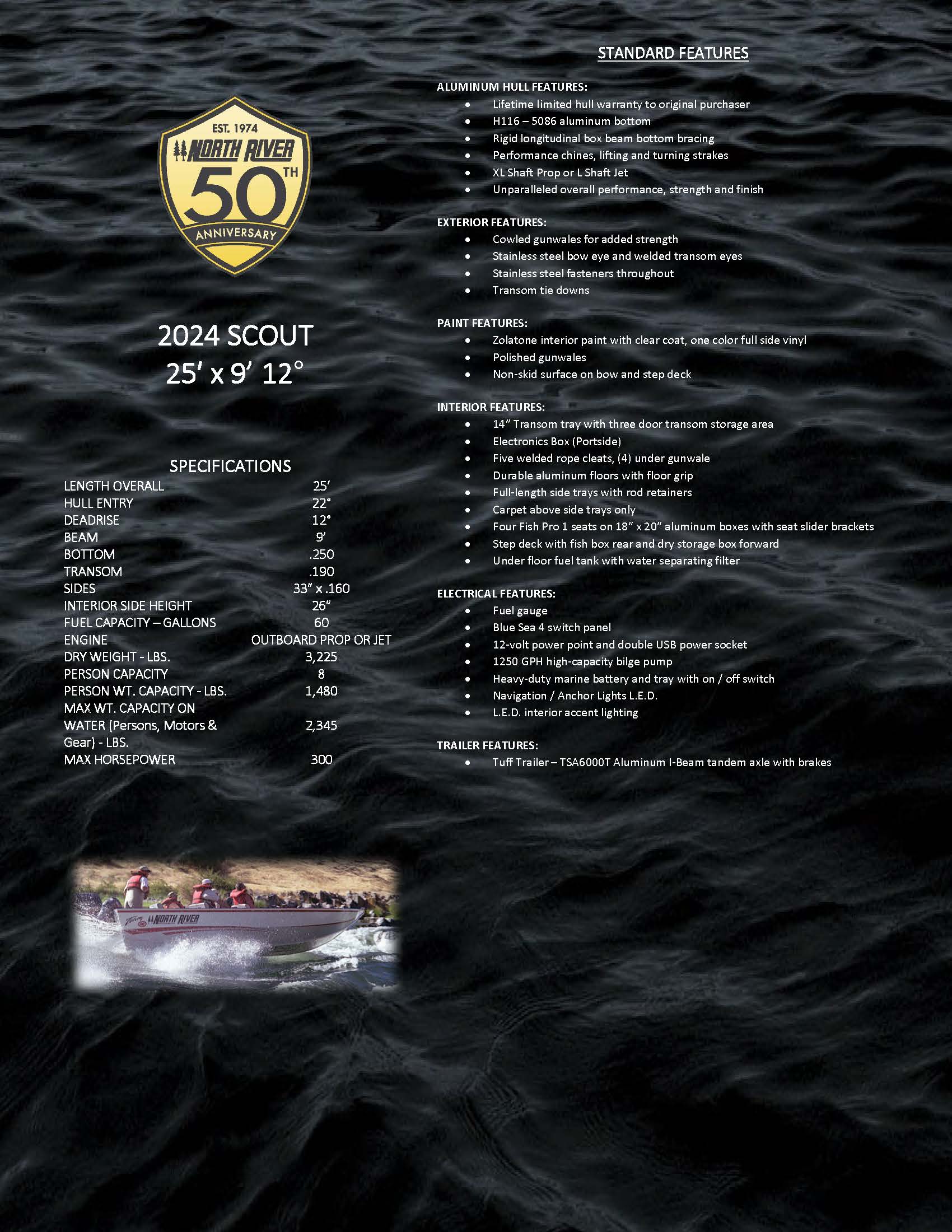

Scout 25′
See drawing below for reference
| LENGTH OVERALL (A): | 25′ |
| HULL ENTRY: | 22° |
| DEADRISE: | 12° |
| BEAM: | 9' |
| BOTTOM: | .250 |
| TRANSOM: | .190 |
| SIDES: | 33″ x .160 |
| INTERIOR SIDE HEIGHT: | 26″ |
| FUEL CAPACITY: | 60 gallons |
| ENGINE: | Outboard Prop or Jet |
| DRY WEIGHT: | 3,225 lbs. |
| PERSON CAPACITY: | 8 |
| PERSON WT. CAPACITY: | 1,480 lbs. |
| MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 2,345 lbs. |
| MAX HORSEPOWER: | 300 hp |
