OSPREY
The North River Osprey, smooth running and confident. Seahawk hull meets purpose-driven, open Scout layout to create the ultimate big water fishing platform.
Master oceans, estuaries and wind-swept reservoirs with the Seahawk’s deep entry and offshore bracket, then fill multiple fish boxes with the precise control and expansive room offered by Scout’s open design. Fishing has changed from small waters to big. Osprey is the evolution of superior North River design, materials and construction to keep top anglers solidly on the bite.

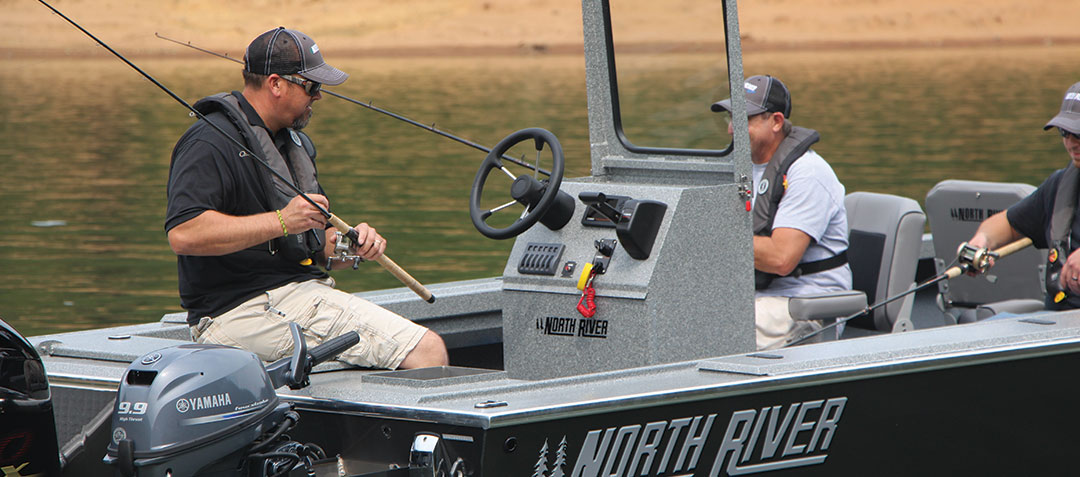

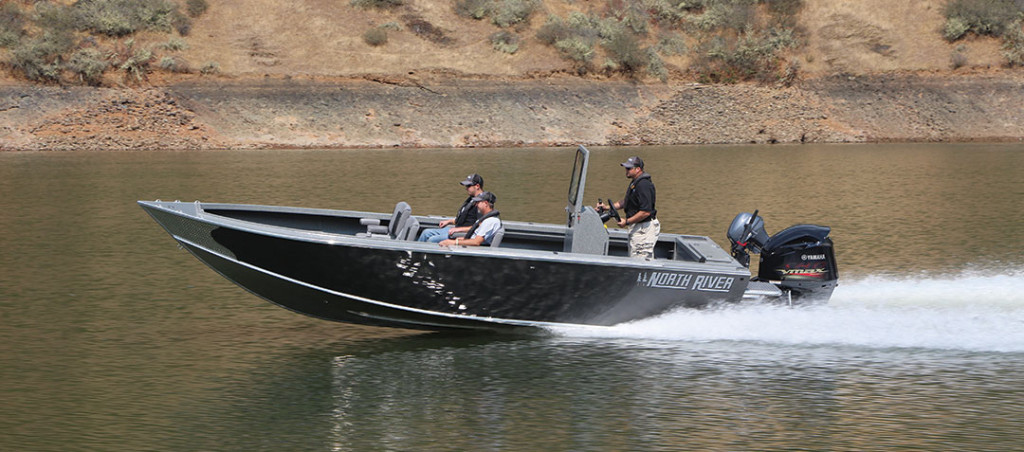

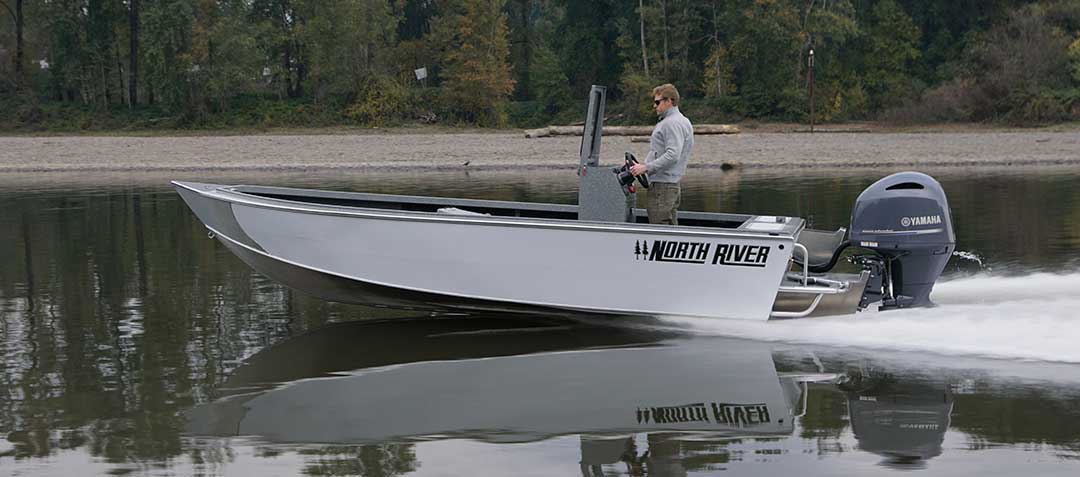

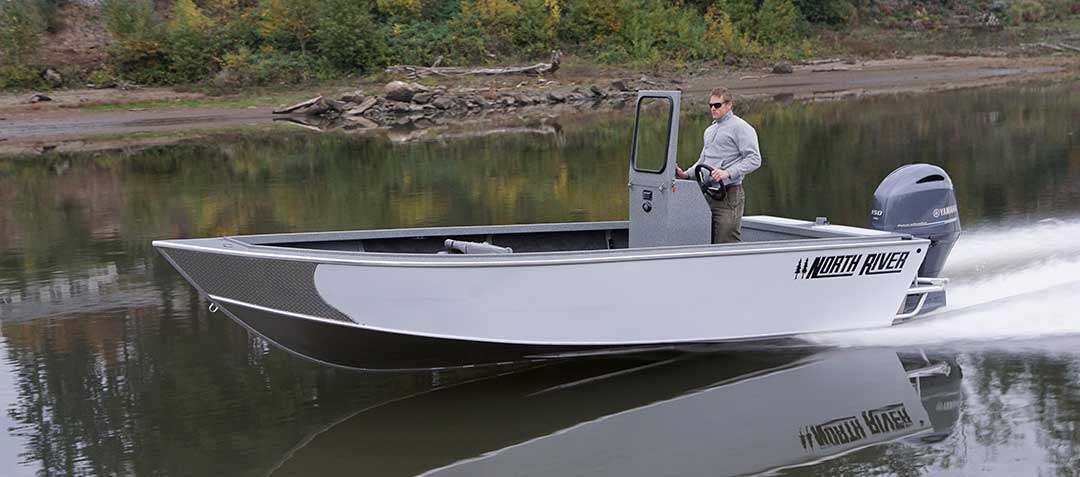

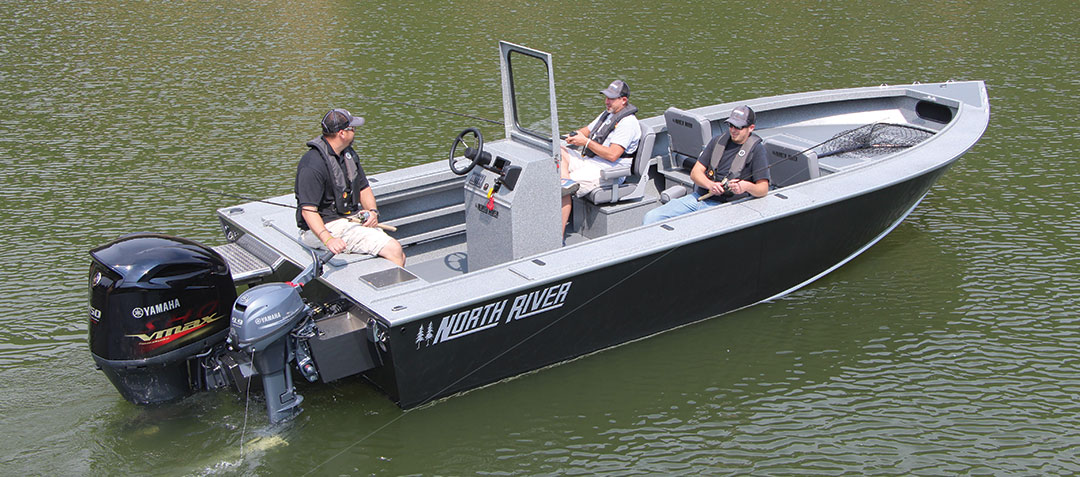

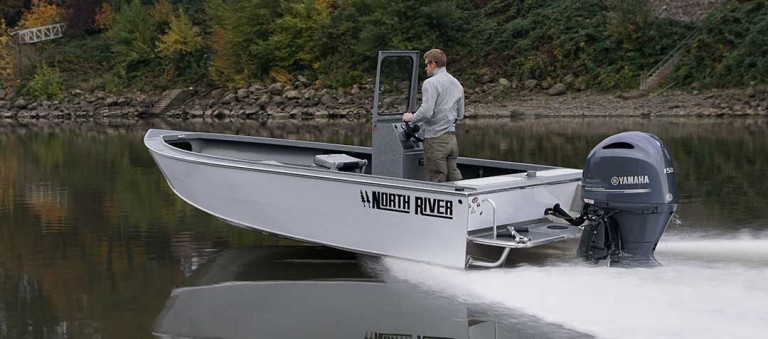

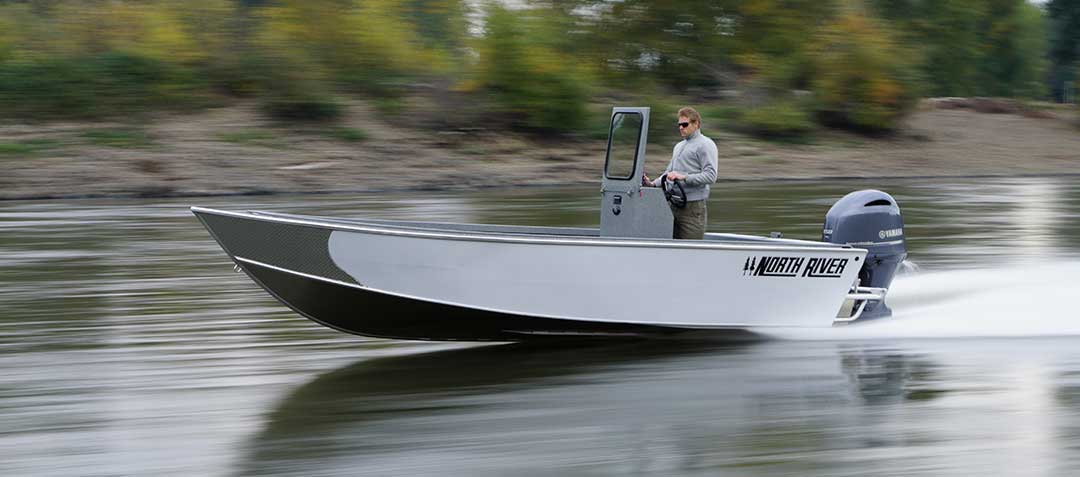

OSPREY GALLERY
STANDARD FEATURES
Note: Boats in gallery photos may include optional features not included in standard base pricing.
ALUMINUM HULL FEATURES:
• Lifetime limited hull warranty to original purchaser
• H116 – 5086 aluminum bottom
• Rigid longitudinal box beam bottom bracing
• Performance matched reverse chines, lifting and turning strakes
• Offshore motor bracket
• Unparalleled overall performance, strength and finish
EXTERIOR FEATURES:
• Cowled gunwales for added strength
• Welded NR swim deck trolling motor bracket portside
• Stainless steel bow eye and welded transom eyes
• Stainless steel fasteners throughout
• Rear cowling fish boxes and center pylon receiver
• Trim tab brackets (trim tabs optional)
• Transom tie downs
PAINT FEATURES:
• Zolatone interior paint with clear coat, one color full side paint (20′ Osprey – one color full side vinyl)
• Polished gunwales
• Matson non-skid surface on bow, step deck and starboard swim deck step
INTERIOR FEATURES:
• Center console with aft locking door and inner storage tray
• Five welded rope cleats, (4) under gunwale
• Durable aluminum floors with floor grip
• Full-width aft storage for battery and outfitting components
• Full-length side trays with rod retainers
• Carpet above side trays only
• Cup holders – side tray adjustable mount
• Four North River sport seats (NR4) on 18″ x 20″ aluminum boxes. (Note: 20′ & 21′ Osprey – Two NR4 sport seat on boxes)
• Step deck with fish box rear (single lid with 70/30 divider in box) and dry storage box forward
• In floor fish box aft of center console with dedicated drain and control valve
• Under floor fuel tank with water separating filter
ELECTRICAL FEATURES:
• Center console panel including:
• Fuel gauge
• Blue Sea 6 switch panel
• 12-volt power point and double USB power socket
• 1250 GPH high capacity bilge pump with auto float switch
• Recessed horn in face of console
• Heavy-duty marine batteries (Cranking & House) with on/off switch
• Navigation / Anchor Lights L.E.D.
• L.E.D. interior accent lighting
TRAILER FEATURES:
• Trailer – tandem axle with brakes
OSPREY SPECIFICATIONS
Osprey 20′
See drawing below for reference
| LENGTH OVERALL (A): | 22′ 2″ |
| CENTERLINE LENGTH (B): | 20′ |
| HULL ENTRY: | 29° |
| DEADRISE: | 14° |
| BEAM: | 8' |
| BOTTOM: | .190 |
| TRANSOM: | .190 |
| SIDES: | 32″ x .160 |
| INTERIOR SIDE HEIGHT: | 28″ |
| FUEL CAPACITY: | 50 gallons |
| ENGINE: | Outboard – XL Shaft |
| DRY WEIGHT: | 2,055 lbs. |
| PERSON CAPACITY: | 5 |
| PERSON WT. CAPACITY: | 925 lbs. |
| MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 1,686 lbs. |
| MAX HORSEPOWER: | 200 hp |
Osprey 21′
See drawing below for reference
| LENGTH OVERALL (A): | 23′ 2″ |
| CENTERLINE LENGTH (B): | 21′ |
| HULL ENTRY: | 42° |
| DEADRISE: | 18° |
| BEAM: | 8' 6" |
| BOTTOM: | .250 |
| TRANSOM: | .190 |
| SIDES: | 35″ x .160 |
| INTERIOR SIDE HEIGHT: | 29″ |
| FUEL CAPACITY: | 70 gallons |
| ENGINE: | Outboard – XL Shaft |
| DRY WEIGHT: | 2,580 lbs. |
| PERSON CAPACITY: | 5 |
| PERSON WT. CAPACITY: | 925 lbs. |
| MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 2,691 lbs. |
| MAX HORSEPOWER: | 300 hp |
Osprey 22′
See drawing below for reference
| LENGTH OVERALL (A): | 24′ 2″ |
| CENTERLINE LENGTH (B): | 22′ |
| HULL ENTRY: | 42° |
| DEADRISE: | 18° |
| BEAM: | 8' 6" |
| BOTTOM: | .250 |
| TRANSOM: | .190 |
| SIDES: | 35″ x .160 |
| INTERIOR SIDE HEIGHT: | 29″ |
| FUEL CAPACITY: | 70 gallons |
| ENGINE: | Outboard – XL Shaft |
| DRY WEIGHT: | 2,600 lbs. |
| PERSON CAPACITY: | 6 |
| PERSON WT. CAPACITY: | 1,110 lbs. |
| MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 2,978 lbs. |
| MAX HORSEPOWER: | 300 hp |
Osprey 23′
See drawing below for reference
| LENGTH OVERALL (A): | 25′ 2″ |
| CENTERLINE LENGTH (B): | 23′ |
| HULL ENTRY: | 42° |
| DEADRISE: | 18° |
| BEAM: | 8' 6" |
| BOTTOM: | .250 |
| TRANSOM: | .190 |
| SIDES: | 35″ x .160 |
| INTERIOR SIDE HEIGHT: | 29″ |
| FUEL CAPACITY: | 70 gallons |
| ENGINE: | Outboard – XL Shaft |
| DRY WEIGHT: | 2,760 lbs. |
| PERSON CAPACITY: | 6 |
| PERSON WT. CAPACITY: | 1,110 lbs. |
| MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 3,237 lbs. |
| MAX HORSEPOWER: | 300 hp |
Osprey 24′
See drawing below for reference
| LENGTH OVERALL (A): | 26′ 2″ |
| CENTERLINE LENGTH (B): | 24′ |
| HULL ENTRY: | 42° |
| DEADRISE: | 18° |
| BEAM: | 8' 6" |
| BOTTOM: | .250 |
| TRANSOM: | .190 |
| SIDES: | 35″ x .160 |
| INTERIOR SIDE HEIGHT: | 29″ |
| FUEL CAPACITY: | 70 gallons |
| ENGINE: | Outboard – XL Shaft |
| DRY WEIGHT: | 2,910 lbs. |
| PERSON CAPACITY: | 7 |
| PERSON WT. CAPACITY: | 1,295 lbs. |
| MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 3,497 lbs. |
| MAX HORSEPOWER: | 350 hp |
Osprey 25′
See drawing below for reference
| LENGTH OVERALL (A): | 27′ 2″ |
| CENTERLINE LENGTH (B): | 25′ |
| HULL ENTRY: | 42° |
| DEADRISE: | 18° |
| BEAM: | 8' 6" |
| BOTTOM: | .250 |
| TRANSOM: | .190 |
| SIDES: | 35″ x .160 |
| INTERIOR SIDE HEIGHT: | 29″ |
| FUEL CAPACITY: | 70 gallons |
| ENGINE: | Outboard – XL Shaft |
| DRY WEIGHT: | 3,050 lbs. |
| PERSON CAPACITY: | 7 |
| PERSON WT. CAPACITY: | 1,295 lbs. |
| MAX WT. CAPACITY ON WATER (Persons, Motors & Gear): | 3,759 lbs. |
| MAX HORSEPOWER: | 350 hp |
