SEAHAWK OFFSHORE W-SERIES
Your search is over. The answer for your offshore boating essentials. When only the best is acceptable, North River Boats offers the Seahawk Offshore W-Series. With its commercial lineage the Seahawk Offshore W-Series is engineered to exceed industry standards and meet all of your expectations.
An industry-leading beam width of 10’6″ and a bottom width of 10′ combine with prominent 33′ and 35′ model lengths to create a substantial foundation. Its spacious cabin and expansive aft deck provide the ideal balance of comfort and functionality. The Seahawk Offshore W-Series boasts an Alaskan bulkhead, 55 degree bow entry for slicing through swells, an extra-large fuel capacity for long range trips and hydraulic steering for effortless control. Dominating the heavy gauge aluminum boating industry for over three decades is liberating for the end user. A copy never rivals the original.
LIFE IS BETTER IN A NORTH RIVER!
STANDARD FEATURES
ALUMINUM HULL FEATURES:
- Lifetime limited hull warranty to original purchaser
- H116 – 5086 aluminum bottom and sides
- Rigid frame sets with 3/8″ solid stem bar
- Forward leaning windshield with 1⁄4″ clear tempered glass
- Full hardtop with Alaskan bulkhead, heavy duty sliding door and cabin windows
- Aluminum Self-bailing deck, includes fish box and Matson non-skid surface
- Twin Offshore bracket
- Unparalleled overall performance, strength and finish
EXTERIOR FEATURES:
- Welded radar arch
- Welded roof mounted rod rocket launchers (10)
- Welded net holders – (1) per cabin side
- Full wrap bow rails, anchor pulpit and bow anchor locker
- Welded swim deck port and starboard with non-skid surface
- Welded boarding ladder – Starboard
- Seven welded rope cleats
- Welded brushed aluminum down rigger brackets
- Welded brushed aluminum bow, stern, roof and aft cabin rails
- Transom rear cowling bait / fish box storage
PAINT FEATURES:
- One color painted side stripe to waterline with clear coat
- Cuddy trunk and exterior cabin sides color matched Zolatone to side stripe color
- Cabin interior – Marble Stone Zolatone with clear coat
- Cabin roof top – color matched Zolatone to side stripe color with Matson grip
- Matson dark gray non-skid surface on cuddy, gunwales, aft deck, and swim deck
INTERIOR FEATURES:
- Hydraulic steering
- Enclosed V-berth with locking doors, V-berth storage, upholstered headliner and marine carpet
- V-berth cushions
- Main cabin upholstered headliner, cladding and marine carpet
- Full width dash and storage tray including: lockable glove box, welded grab bar and cup holders (2)
- Grab rails – Interior cabin roof / sides of aisle way
- Aft rigging compartment with (2) drop in doors
- Side trays with rod retainers
- Sliding side windows (aft sliding front to back) with screens
- Two suspension seats with severe duty chassis at helm on 24″ boxes
- Under floor fuel tank with water separating filter
ELECTRICAL FEATURES:
- Dash panel including: fuel gauge & (8) switch panel
- Blue Sea 6 switch panel at starboard gunwale face under cabin return
- Windshield wipers
- 12 volt power point and double USB power socket
- 2000 GPH high capacity bilge pump with auto float switch
- Dual trumpet horn
- High pressure wash down pump – spigot port side aft
- Triple bank battery system (Dual HD cranking marine batteries and single house battery with selector switch)
- Trim tabs
- Three dual color dome lights L.E.D.
- Navigation / Anchor Lights L.E.D.
- L.E.D. interior accent lighting in cabin and aft deck
TRAILER IS NOT A STANDARD FEATURE
CONTACT YOUR NORTH RIVER DEALER FOR MORE INFORMATION

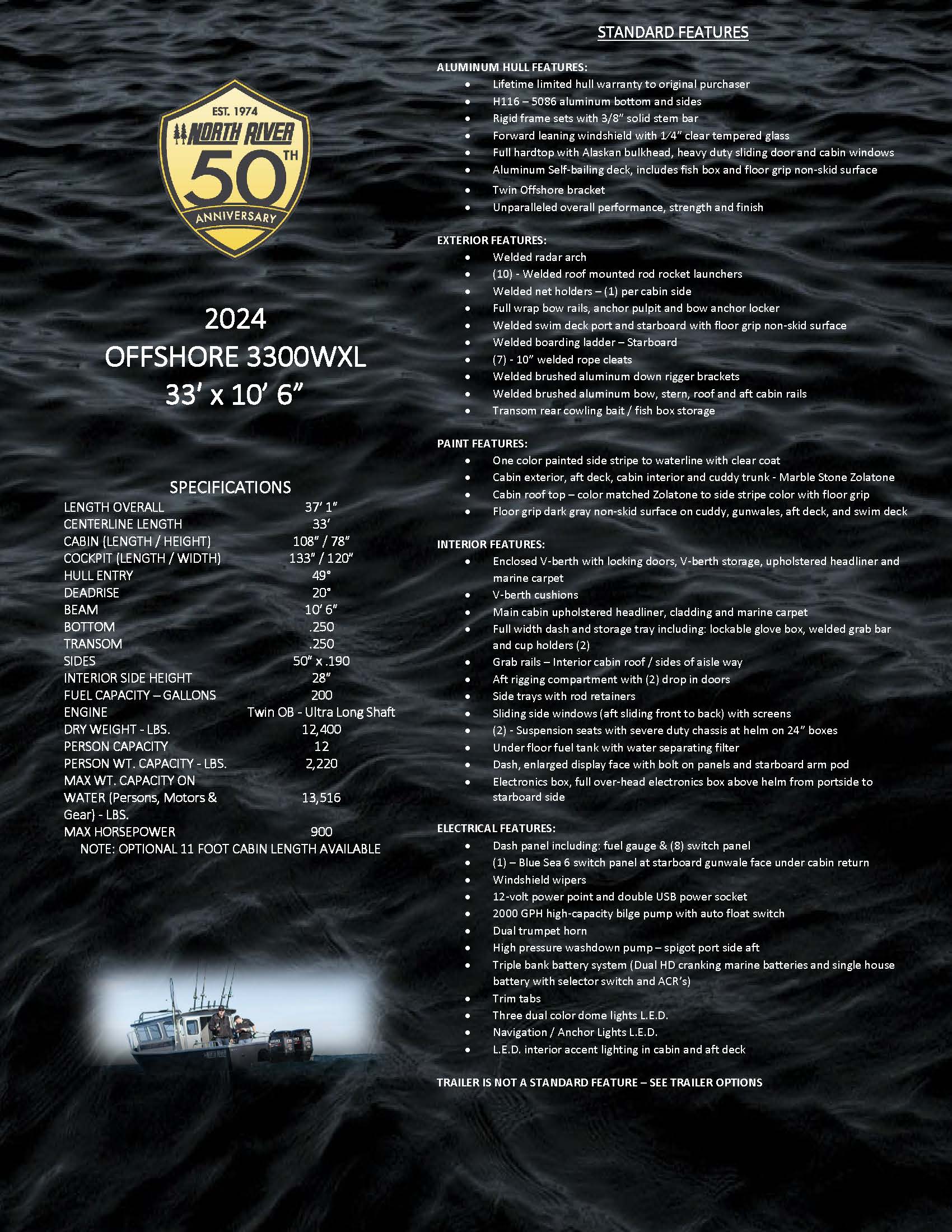

SEAHAWK OFFSHORE W-SERIES SPECIFICATIONS
SEAHAWK OFFSHORE 3300WXL

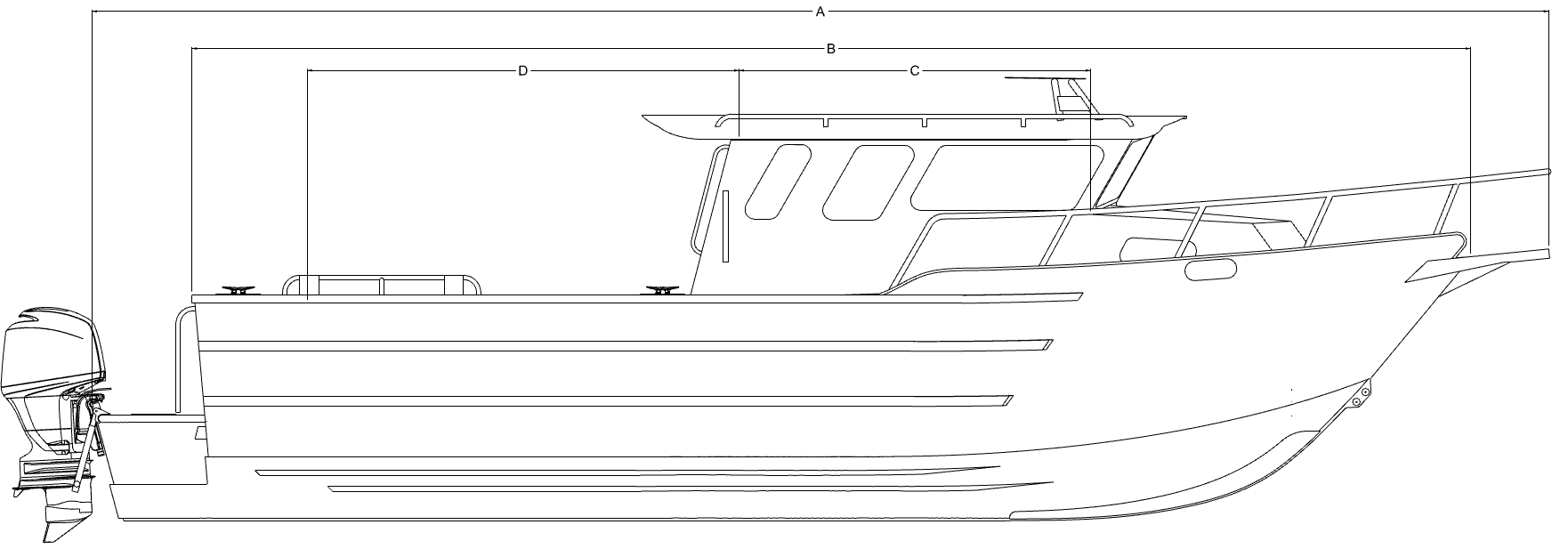

See drawing below for reference
CENTERLINE LENGTH (B):
CABIN (LENGTH C / HEIGHT):
COCKPIT (LENGTH D / WIDTH):
HULL ENTRY:
DEADRISE:
BEAM:
BOTTOM:
TRANSOM:
SIDES:
INTERIOR SIDE HEIGHT:
FUEL CAPACITY:
ENGINE:
DRY WEIGHT:
PERSON CAPACITY:
PERSON WT. CAPACITY:
MAX WT. CAPACITY (Persons, Motors & Gear):
MAX HORSEPOWER:
33′
108″ / 78″
146″ / 120″
45°
20°
10′ x .250
.250
50″ x .190
28″
200 gallons
TWIN OB 30″
12,400 lbs.
12
2,220 lbs.
13,516 lbs.
900 hp
SEAHAWK OFFSHORE 3500WXL
See drawing below for reference
CENTERLINE LENGTH (B):
CABIN (LENGTH C / HEIGHT):
COCKPIT (LENGTH D / WIDTH):
HULL ENTRY:
DEADRISE:
BEAM:
BOTTOM:
TRANSOM:
SIDES:
INTERIOR SIDE HEIGHT:
FUEL CAPACITY:
ENGINE:
DRY WEIGHT:
PERSON CAPACITY:
PERSON WT. CAPACITY:
MAX WT. CAPACITY (Persons, Motors & Gear):
MAX HORSEPOWER:
35′
108″ / 78″
170″ / 120″
45°
20°
10′ 6″
10′ x .250
.250
50″ x .190
28″
200 gallons
TWIN OB 30″
13,150 lbs.
12
2,220 lbs.
14,533 lbs.
1,275 hp

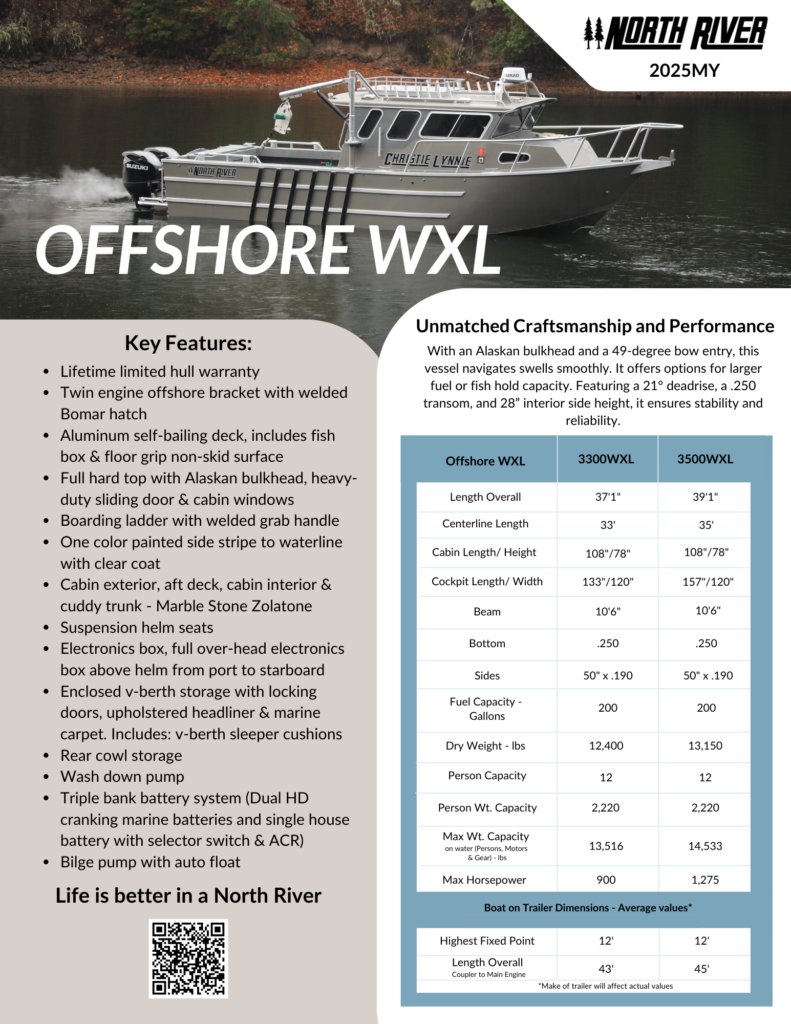

DOWNLOAD SPEC SHEET!
*All boats shown may include optional features not included in standard base pricing.
