SEAHAWK OFFSHORE S-SERIES
Wake up. Fish. Repeat. Simplifying your means to your next adventure. Three decades building the industry’s premier offshore boat has allowed us to craft the Seahawk Offshore. The Seahawk Offshore leads the industry with a beam width of 8′ 6, markedly improving stability in rough water creating an extremely safe and dry riding fishing machine.
The Seahawk Offshore boasts an Alaskan bulkhead, 55 degree bow entry for slicing through swells, an extra-large fuel capacity for long range trips and hydraulic steering for effortless control. The Seahawk Offshore is simply an exceptional boat to own and operate.

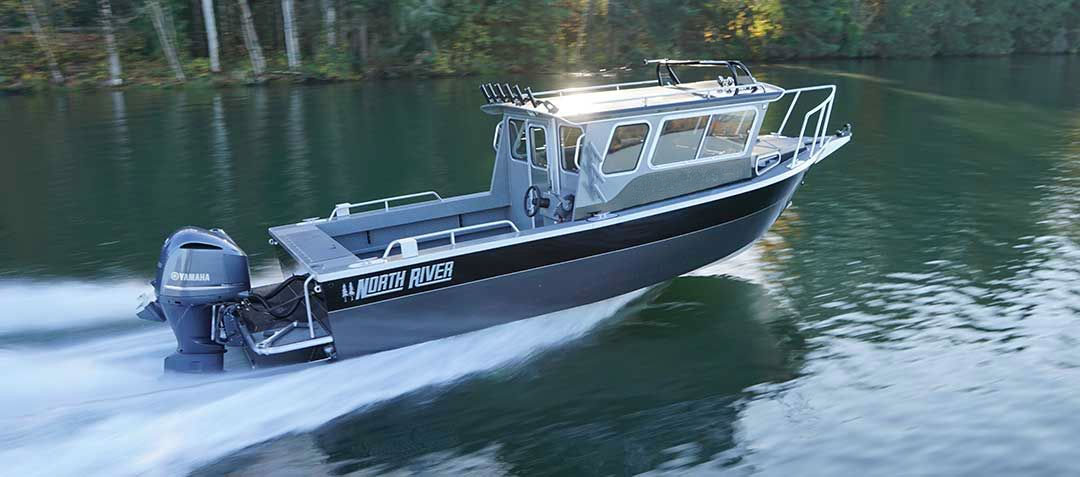

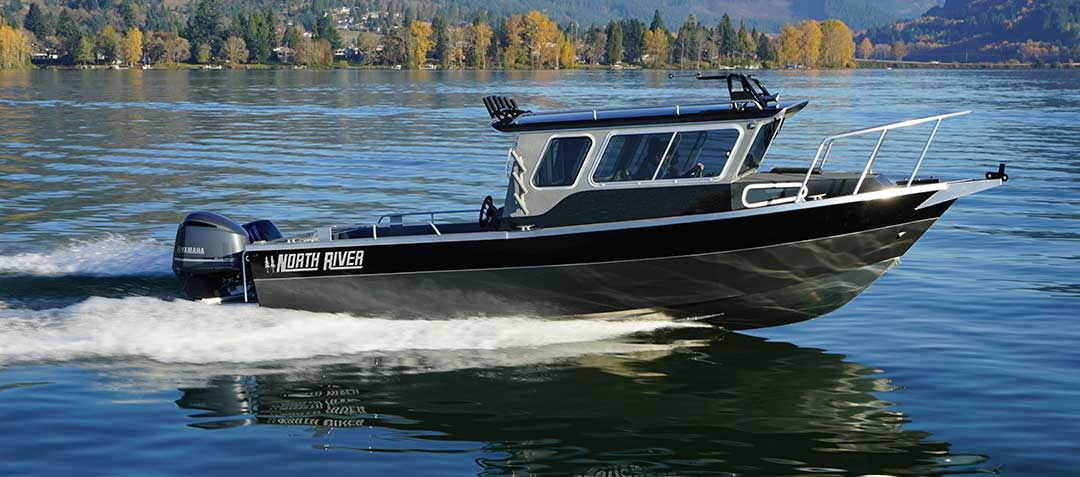

SEAHAWK OFFSHORE GALLERY
STANDARD FEATURES
Note: Boats in gallery photos may include optional features not included in standard base pricing.
ALUMINUM HULL FEATURES:
• Lifetime limited hull warranty to original purchaser
• H116 – 5086 aluminum bottom and sides
• Rigid frame sets with 3/8″ solid stem bar
• Forward leaning windshield with 1⁄4″ clear tempered glass
• Full hardtop with Alaskan bulkhead, heavy duty sliding door and cabin windows
• Aluminum Self-bailing deck, includes fish box and floor grip non-skid surface
• Offshore bracket
• Unparalleled overall performance, strength and finish
EXTERIOR FEATURES:
• Welded radar arch
• Welded roof mounted rod rocket launchers
• Welded net holders – (1) per cabin side
• Full wrap bow rails, anchor pulpit and bow anchor locker
• Welded swim deck port and starboard with non-skid surface
• Welded boarding ladder – Starboard
• Seven welded rope cleats
• Welded brushed aluminum down rigger brackets
• Welded brushed aluminum bow, stern, roof and aft cabin rails
• Transom tie downs
• Transom rear cowling bait / fish box storage
PAINT FEATURES:
• One color painted side stripe to waterline with clear coat
• Cuddy trunk and exterior cabin sides color matched Zolatone to side stripe color
• Cabin interior, Alaskan bulkhead & aft deck Zolatone with clear coat
• Cabin roof top – color matched Zolatone to side stripe color with floor grip
• Floor grip dark gray non-skid surface on cuddy, gunwales, aft deck, and swim deck
INTERIOR FEATURES:
• Enclosed V-berth with locking doors, V-berth storage, upholstered headliner and marine carpet
• V-berth cushions
• Main cabin upholstered headliner, cladding and marine carpet
• Full width dash and storage tray including: lockable glove box, welded grab bar and cup holders (2)
• Grab rails – Interior cabin roof / sides of aisle way
• Aft rigging compartment with (2) doors
• Side trays with rod retainers
• Sliding side windows (aft sliding front to back) with screens
• Two suspension seats with severe duty chassis at helm on 24″ boxes
• Under floor fuel tank with water separating filter
• Dash, enlarged display face with bolt on panels on starboard arm pod
• Electronics box, full over-head electronics box above helm from portside to starboard side
ELECTRICAL FEATURES:
• Dash panel including: fuel gauge & (8) switch panel
• Blue Sea 6 switch panel at starboard gunwale face under cabin return
• Dual windshield wipers
• 12-volt power point and double USB power socket
• 2000 GPH high-capacity bilge pump with auto float switch
• Dual trumpet horn
• High pressure wash down pump – spigot port side aft
• Triple bank battery system (Dual HD cranking marine batteries and single house battery with selector switch and ACR)
• Trim tabs
• Dual color dome lights L.E.D.
• Navigation / Anchor Lights L.E.D.
• L.E.D. interior accent lighting in cabin and aft deck
TRAILER FEATURES:
• BOATMASTER 10000 Aluminum I-Beam trailer. Tandem axle with hydraulic disc brakes, bunks and L.E.D. lighting. Spare tire & carrier include

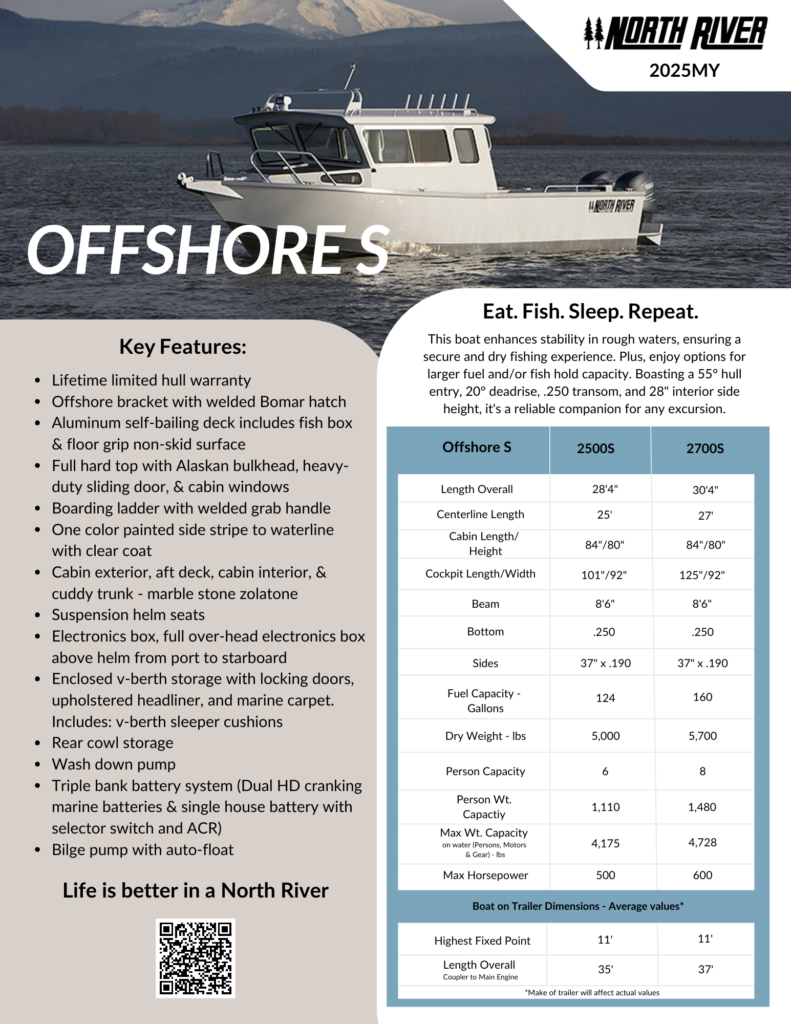

SEAHAWK OS SPECIFICATIONS

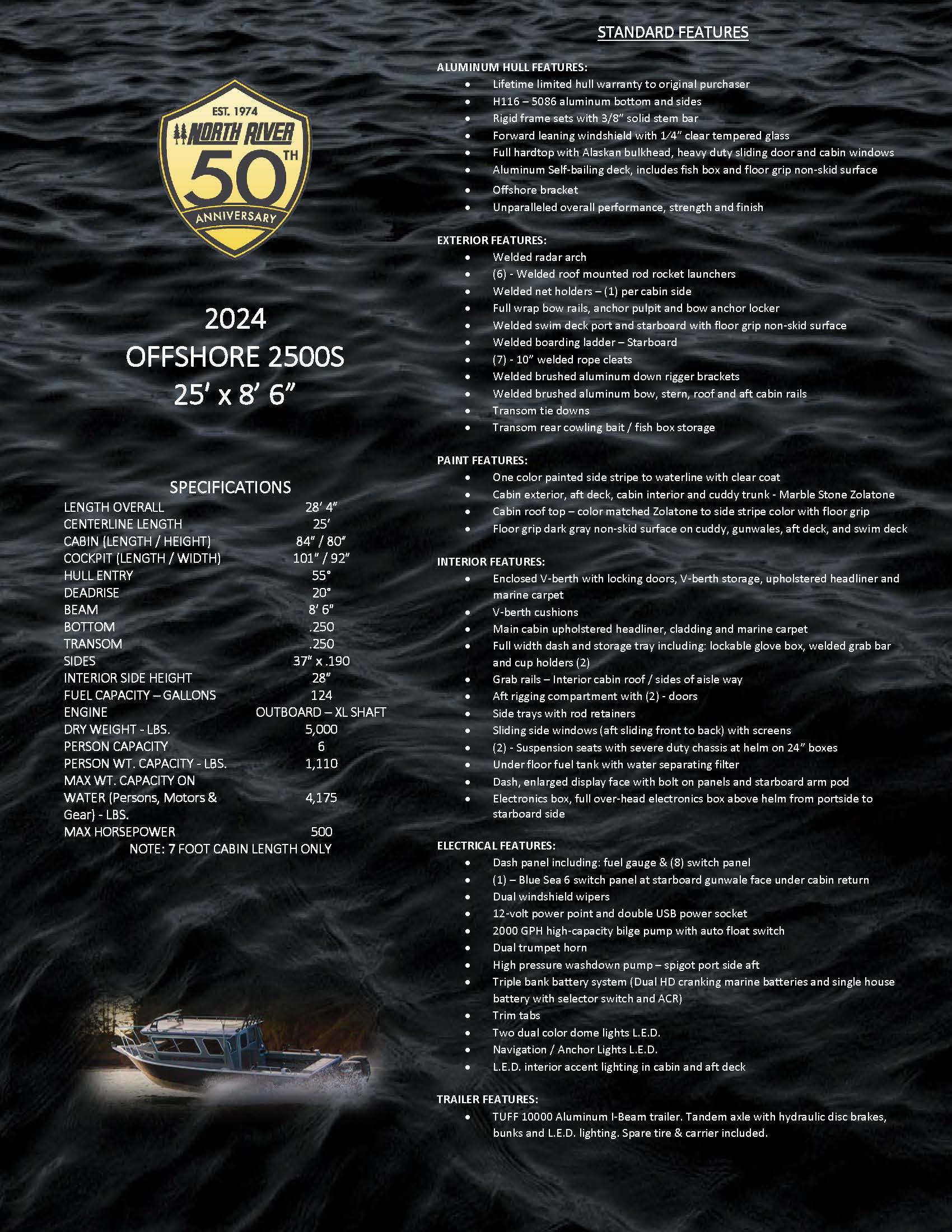

SEAHAWK OFFSHORE 2500S
See drawing below for reference
CENTERLINE LENGTH (B):
CABIN (LENGTH C / HEIGHT):
COCKPIT (LENGTH D / WIDTH):
HULL ENTRY:
DEADRISE:
BEAM:
BOTTOM:
TRANSOM:
SIDES:
INTERIOR SIDE HEIGHT:
FUEL CAPACITY:
ENGINE:
DRY WEIGHT:
PERSON CAPACITY:
PERSON WT. CAPACITY:
MAX WT. CAPACITY (Persons, Motors & Gear):
MAX HORSEPOWER:
25′
84″ / 80″
101″ / 92″
55°
20°
8′ 6″
8′ x .250
.250
36″ x .190
28″
124 gallons
OUTBOARD – XL SHAFT
5,000 lbs.
6
1,110 lbs.
4,175 lbs.
500 hp

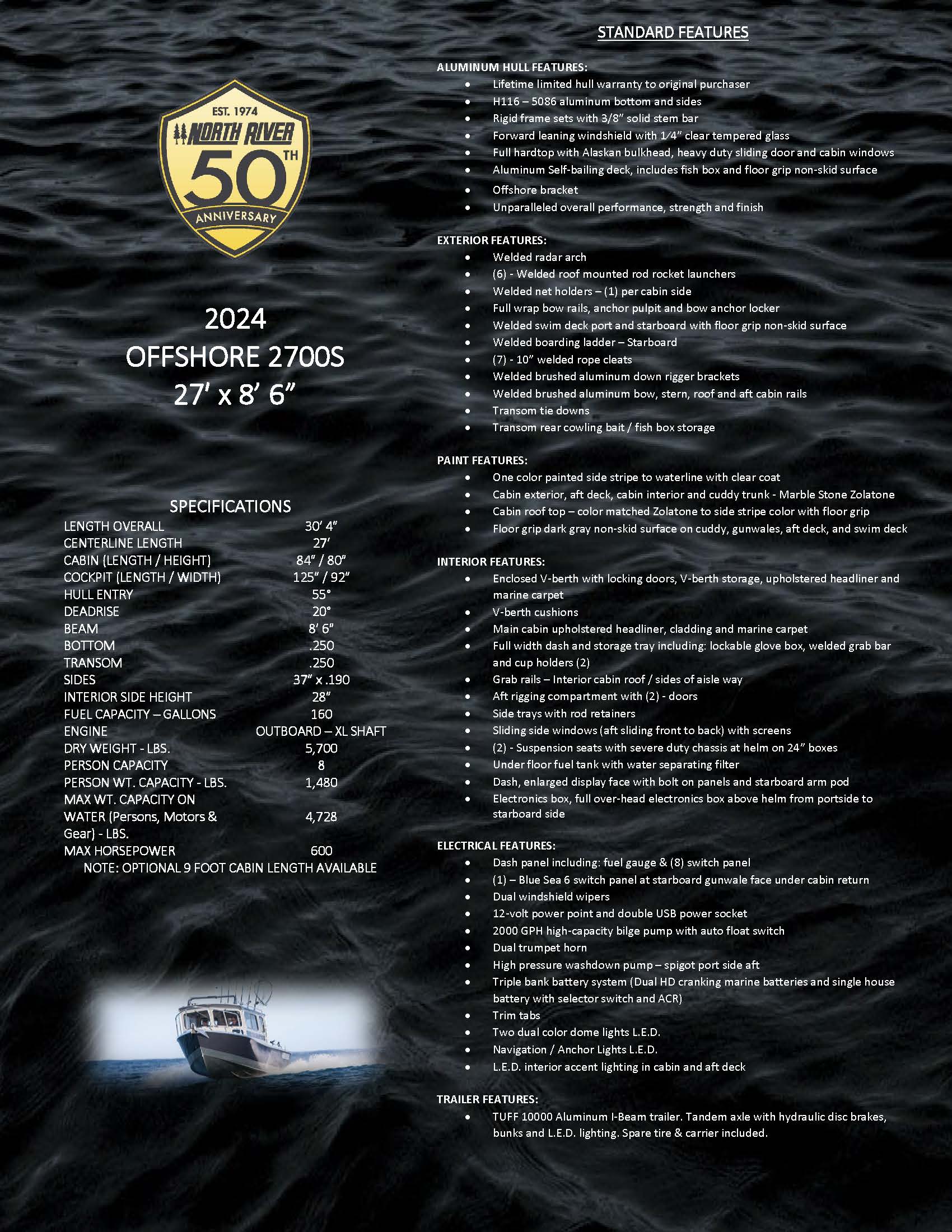

SEAHAWK OFFSHORE 2700S
See drawing below for reference
CENTERLINE LENGTH (B):
CABIN (LENGTH C / HEIGHT):
COCKPIT (LENGTH D / WIDTH):
HULL ENTRY:
DEADRISE:
BEAM:
BOTTOM:
TRANSOM:
SIDES:
INTERIOR SIDE HEIGHT:
FUEL CAPACITY:
ENGINE:
DRY WEIGHT:
PERSON CAPACITY:
PERSON WT. CAPACITY:
MAX WT. CAPACITY (Persons, Motors & Gear):
MAX HORSEPOWER:
27′
84″ / 80″
125″ / 92″
55°
20°
8′ 6″
8′ x .250
.250
36″ x .190
28″
160 gallons
OUTBOARD – XL SHAFT
5,700 lbs.
8
1,480 lbs.
4,728 lbs.
600 hp
NOTE: OPTIONAL 9 FOOT CABIN LENGTH AVAILABLE FOR 27′ SEAHAWK OFFSHORE
